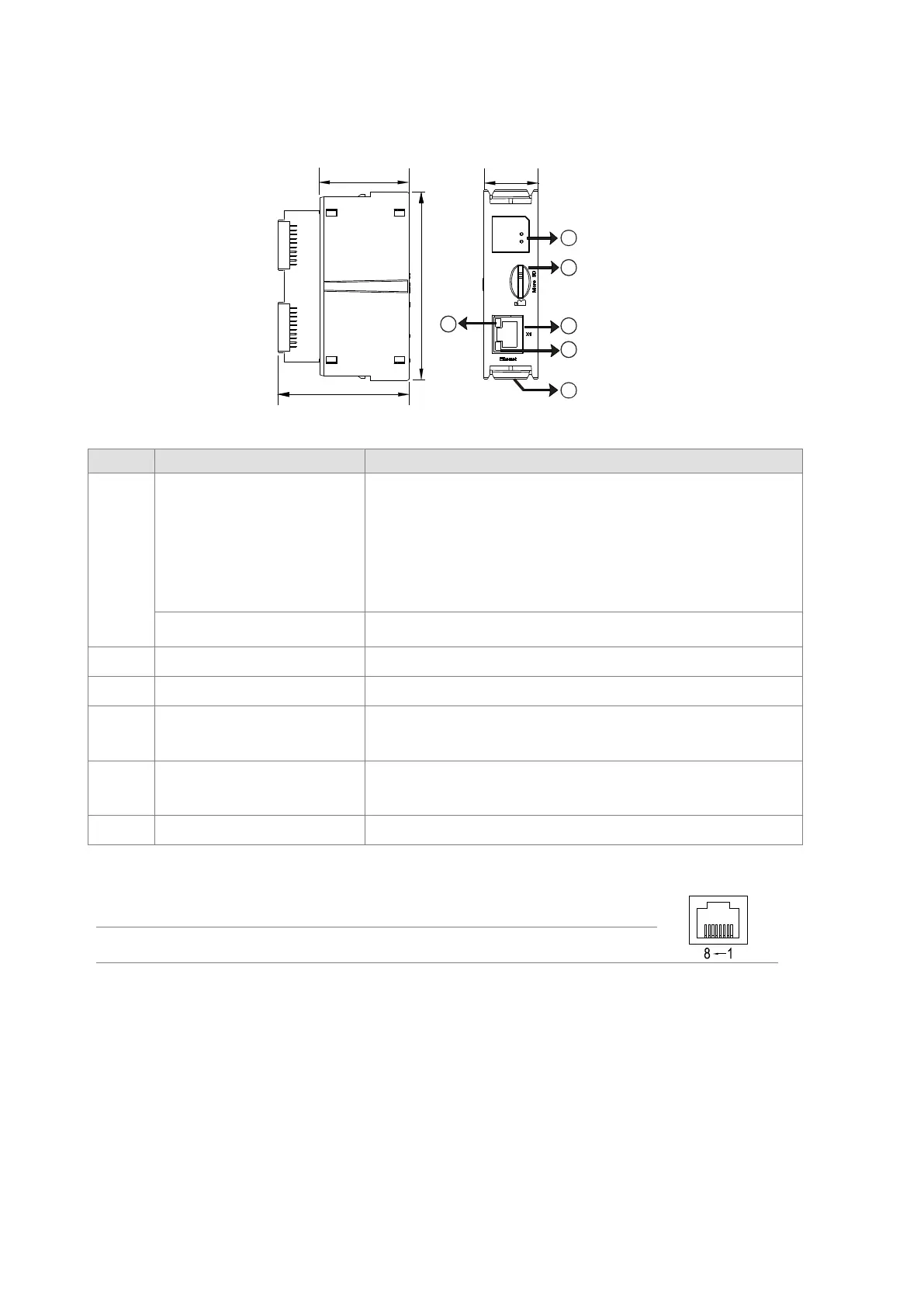

AS-FFTP01
A S- FF TP0 1
NS
MS
1
88
42
61.5
25.2
2
3
4
5
6
Unit: mm
Number Name Description
1
MS indicator
Indicates the status of the communication card
Green light ON: the communication card operation is working normal
Green light BLINKING: communication card is initializing
Red light ON: powering on or internal communication fail, can NOT
be recovered
Red light BLINKING: internal communication timeout; reboot is
required.
OFF: no power
NS indicator
Red light ON: IP address conflict; remove the device with the same IP
address on the network
2 Micro SD card slot For Micro SD card
3 RJ-45 port For network connections
4 LINK indicator
Indicate the status of Ethernet connection
Green light ON: a network connection is established
OFF: a network connection is not established
5 ACT indicator
Indicate the status of Ethernet communication
Orange BLINKING: data transmission
OFF: no data transmission
6 Clip ring Secures AS series
RJ-45 Pin Definition
1 TX+ 2 TX- 3 RX+ 4 N/C
5 N/C 6 RX- 7 N/C 8 N/C
