4.14 Wiring Function Cards

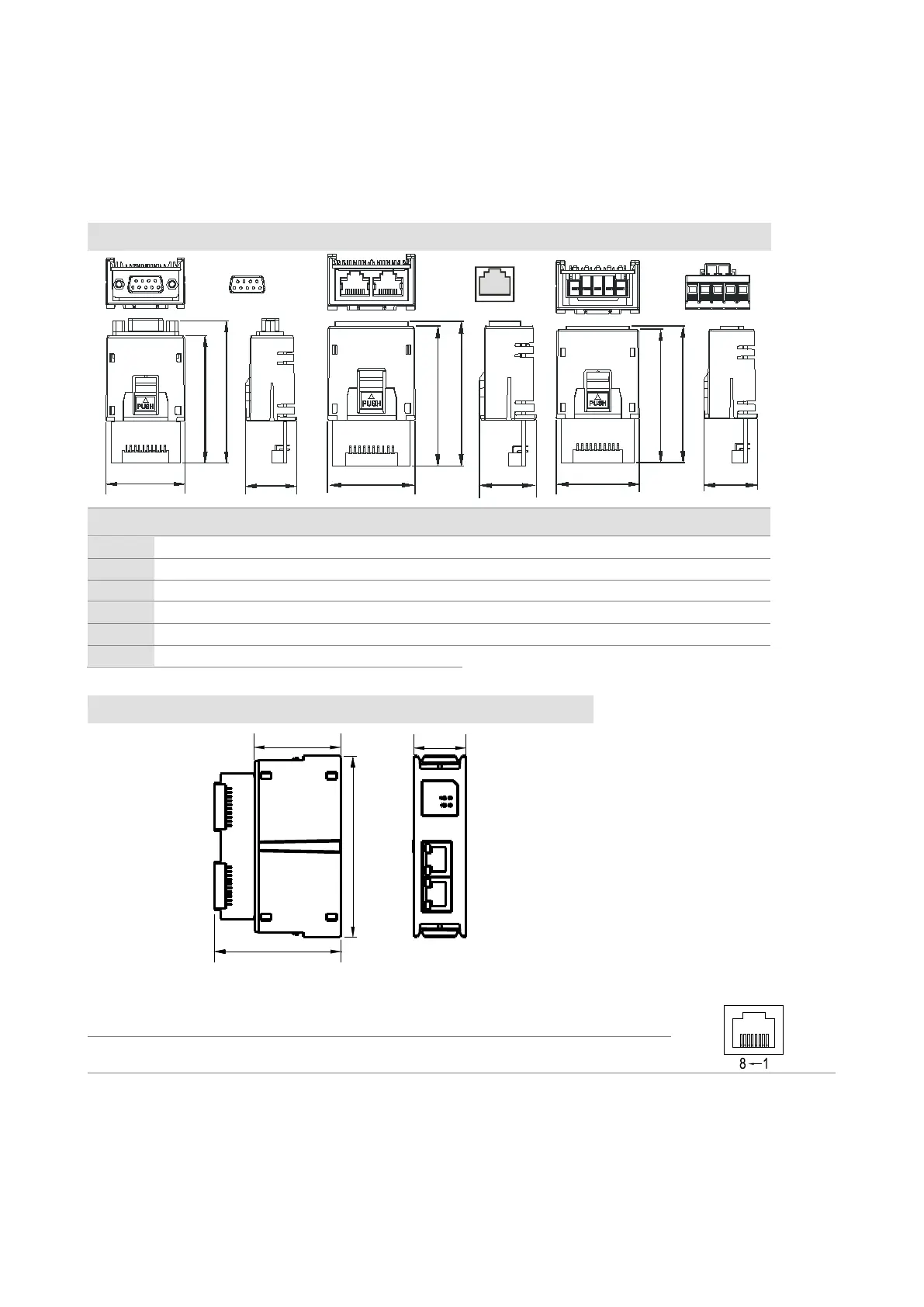

4.14.1 Communicational Function Card Profiles and the Pin Definitions
AS-F232 AS-FCOPM AS-F422/AS-F485
37
23.9
59.3
66.3
1
5
6 9
61.3
37
59.3
23.9
1
2
3
4
5
6
7
8
1
8
37
23.9
59.3
60.8
1 5
Pin no. AS-F232 AS-FCOPM AS-F422 AS-F485
1 - CAN_H R+ -
2 TX CAN_L R- -
3 RX GND T+ D+
4 - - T- D-
5 GND - SG SG
6-9 - -
AS-FEN02 / AS-FPFN02 / AS-FECAT
88
42
61.5
25.2
1 TX+ 2 TX- 3 RX+ 4 N/C
5 N/C 6 RX- 7 N/C 8 N/C
