Delta AS218TX-A User Manual

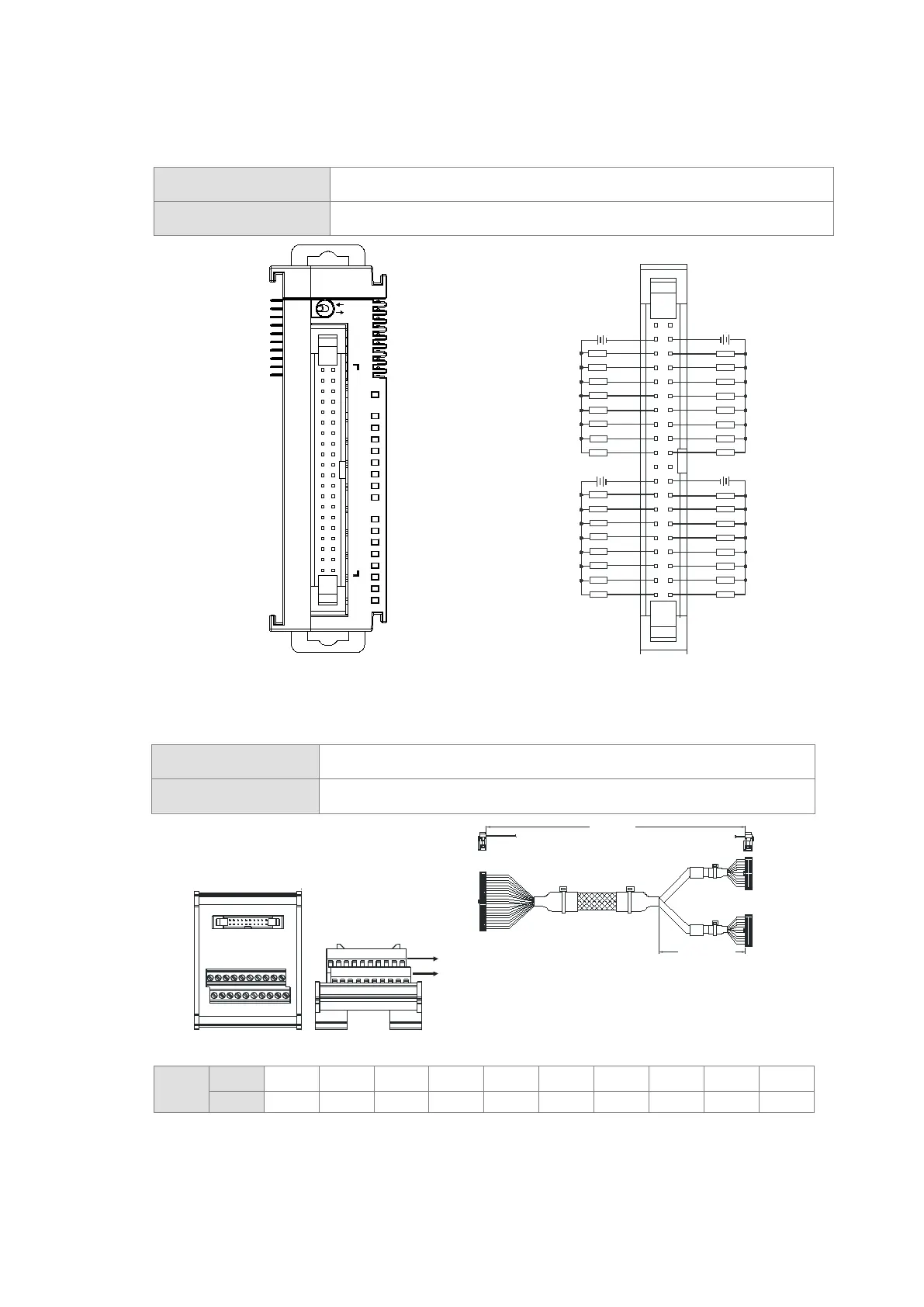

4.7.13 Wiring AS32AN02T-A
Output form
Transistor-T (sinking)
Voltage specifications
5 to 30 VDC, 0.1A/output, 3.2A/COM
PWR
39
2
13
15
14
8
10
9
12
1
11
4
5
3
7
6
OUT
1
0
Y1 LED
Y0 LED
32AN
1.0
1.2
1.4
1.6
1.8
1.10
1.12
1.14
1.1
1.3
1.5
1.7
1.9
1.11
1.13
1.15
0.0
0.1
0.2
0.4
0.6
0.8
0.10
0.12
0.14
0.3
0.5
0.7
0.9
0.11
0.13
0.15
C0
C0
C0
C0
OUT
 Wiring the External Terminal Module UB-10-ID16A
For cables that can only be connected to the cables of group #1, see below.
Output form
Transistor-T (sinking)
Voltage specifications
5 to 30 VDC, 0.1 A
TB1
TB2
Length
UC-ET010-24D(1M)(28AWG)
UC-ET020-24D(2M)
UC-ET030-24D(3M)
(28AWG)
(28AWG)
Length:
39 40
1 2
500+10mm
-
19 20
1 2
19 20
1
2
#1
#2
#1
TB1 Y0.0 Y0.2 Y0.4 Y0.6 Y0.8 Y0.10 Y0.12 Y0.14 C0 -
TB2
Y0.1
Y0.3
Y0.5
Y0.7
Y0.9
Y0.11
Y0.13
Y0.15
C0
-
