Delta AS218TX-A User Manual

(2) The 24 VDC cable should be twisted and connected to a module within a short distance.
(3) Do not bundle 110 VAC cable, 220 VAC cable, 24 VDC cable, the (high-voltage high-current) main circuit,
and the I/O signal cable together. The distance between adjacent cables should be more than 100
millimeters.
(4) Connect a cable with a diameter of 14 AWG or higher to ground.
(5) Use single-wire cables or two-wire cables with a diameter of 20 AWG to 14 AWG. Only use copper
conducting wires with a temperature rating of 60/75°C.

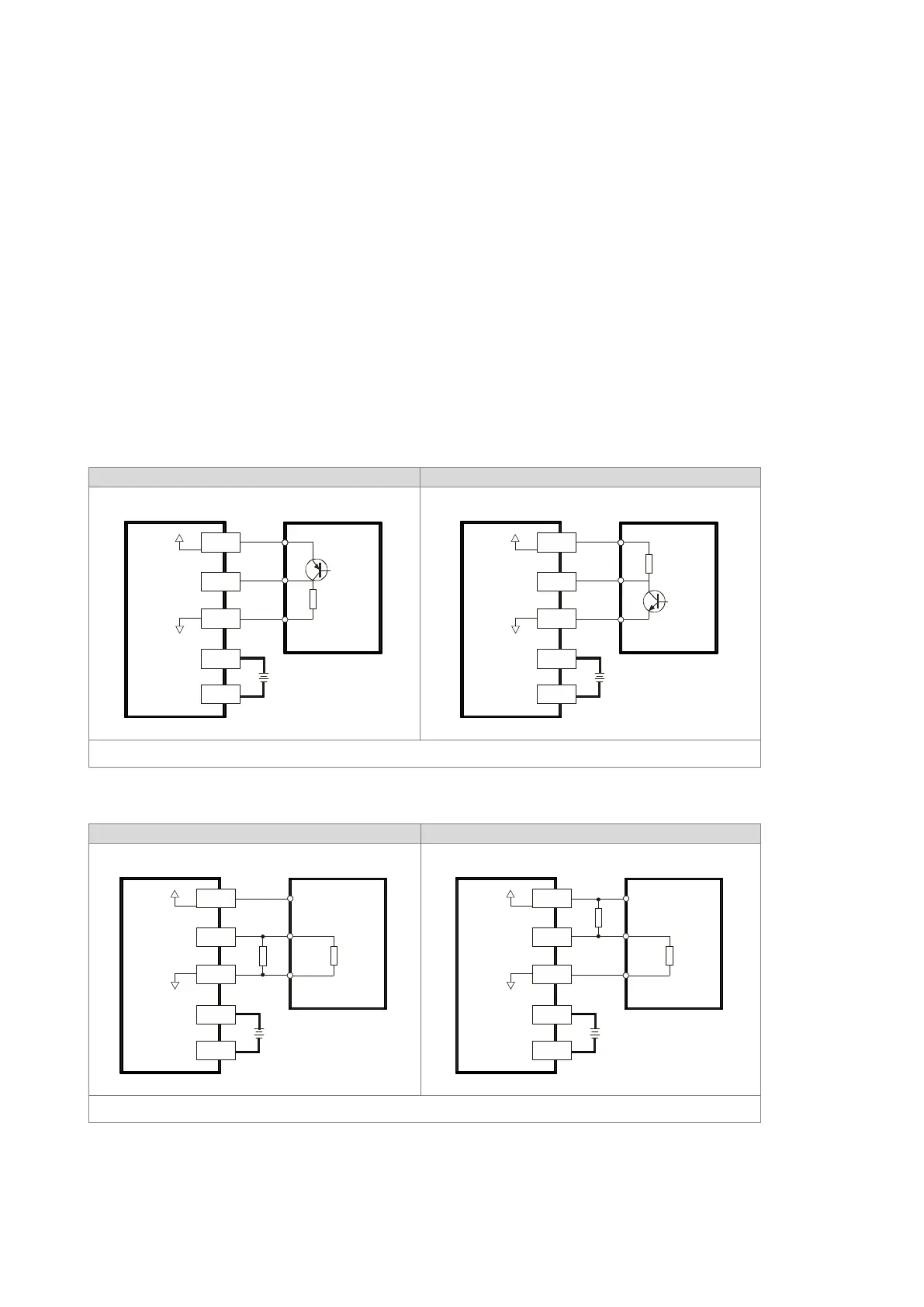

4.13.6.2 Digital Input Wiring (SIO Mode)
When the connected device is a PNP type
When the connected device is a NPN type
Ln+
CQn
Ln-
24V
0V
AS04SIL-A
24 V
0V
Ln+
CQn
Ln-
24V
0V
AS04SIL-A
24 V
0V
Note: n=1~4
4.13.6.3 Digital Output Wiring (SIO Mode)
When the connected device is a PNP type
When the connected device is a NPN type
Ln+
CQn
Ln-
24V
0V
AS04SIL-A
+
R
24 V
0V
-
signal
Load
Ln+
CQn
Ln-
24V
0V
AS04SIL-A
R
+
-
signal
24 V
0V
Load
Note: n=1~4
