Chapter 12 Description of Parameter SettingsC2000
12.1-04-1
04 Multi-step Speed Parameters This parameter can be set during operation.

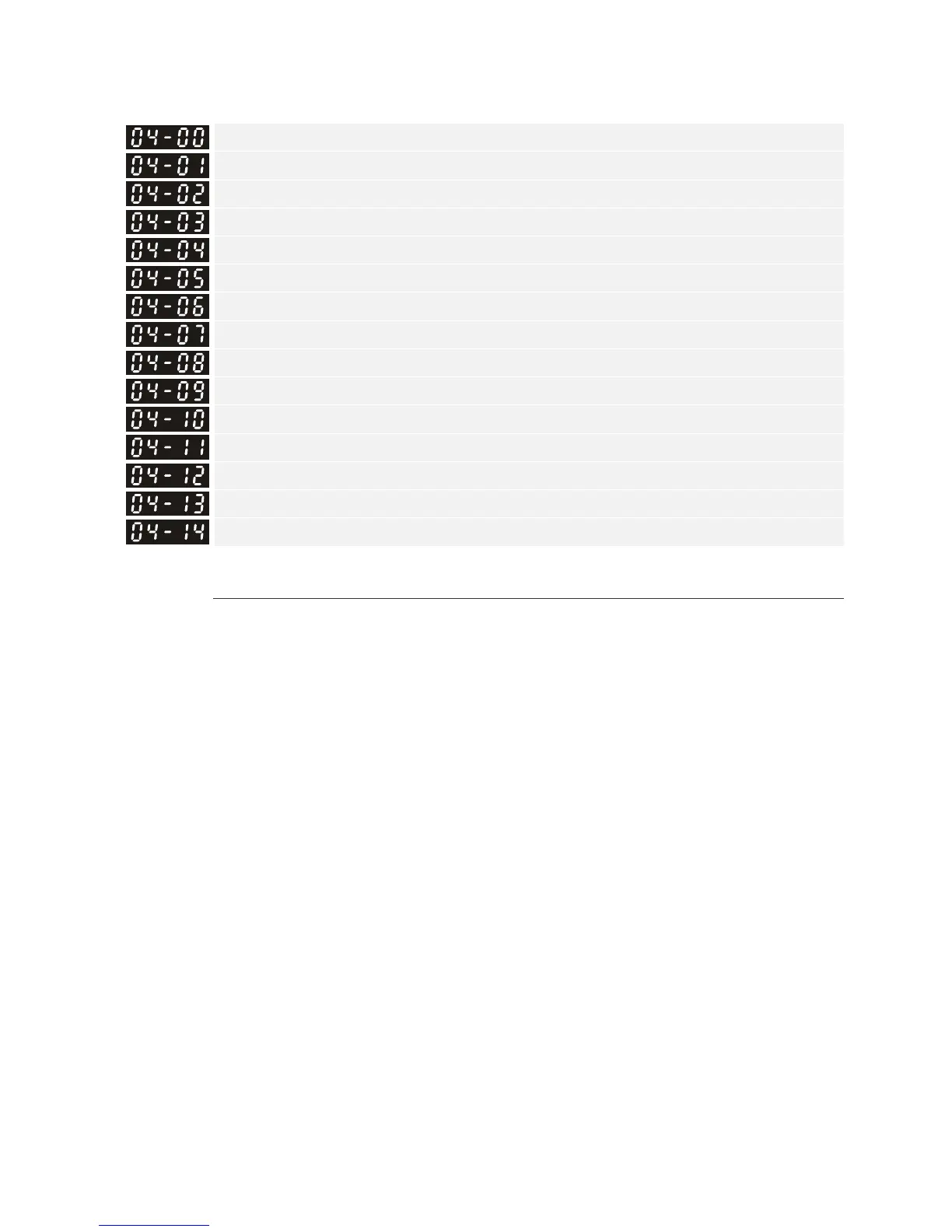

1st Step Speed Frequency
2nd Step Speed Frequency
3rd Step Speed Frequency
4th Step Speed Frequency
5th Step Speed Frequency
6th Step Speed Frequency
7th Step Speed Frequency
8th Step Speed Frequency
9th Step Speed Frequency
10th Step Speed Frequency
11th Step Speed Frequency
12th Step Speed Frequency
13th Step Speed Frequency
14th Step Speed Frequency
15th Step Speed Frequency
Default: 0.00
Settings 0.00–599.00 Hz
Use the multi-function input terminals (refer to settings 1–4 of Pr. 02-01–02-08 and Pr.
02-26–02-31 Multi-function Input Command) to select the multi-step speed command (the
maximum is 15
th
step speed). Pr. 04-00 to Pr. 04-14 set the multi-step speed frequency as shown
in the following diagram.
The external terminal/digital keypad/communication controls the RUN and STOP commands with
Pr.00-21.
You can set each multi-step speed between 0.00–599.00 Hz during operation.
Explanation for the timing diagram of the multi-step speed and external terminals
The related parameter settings are:
1. Pr. 04-00–04-14: sets the 1
st
to 15
th
multi-step speed (to set the frequency of each step speed)
2. Pr. 02-01–02-08 and Pr. 02-26–02-31: sets the multi-function input terminals (multi-step speed
command 1–4)
Related parameters:
Pr. 01-22 JOG Frequency
Pr. 02-01 Multi-function Input Command 1 (MI1)
Pr. 02-02 Multi-function Input Command 2 (MI2)
Pr. 02-03 Multi-function Input Command 3 (MI3)
Pr. 02-04 Multi-function Input Command 4 (MI4)
