Chapter 16 PLC Function ApplicationsC2000
16-12

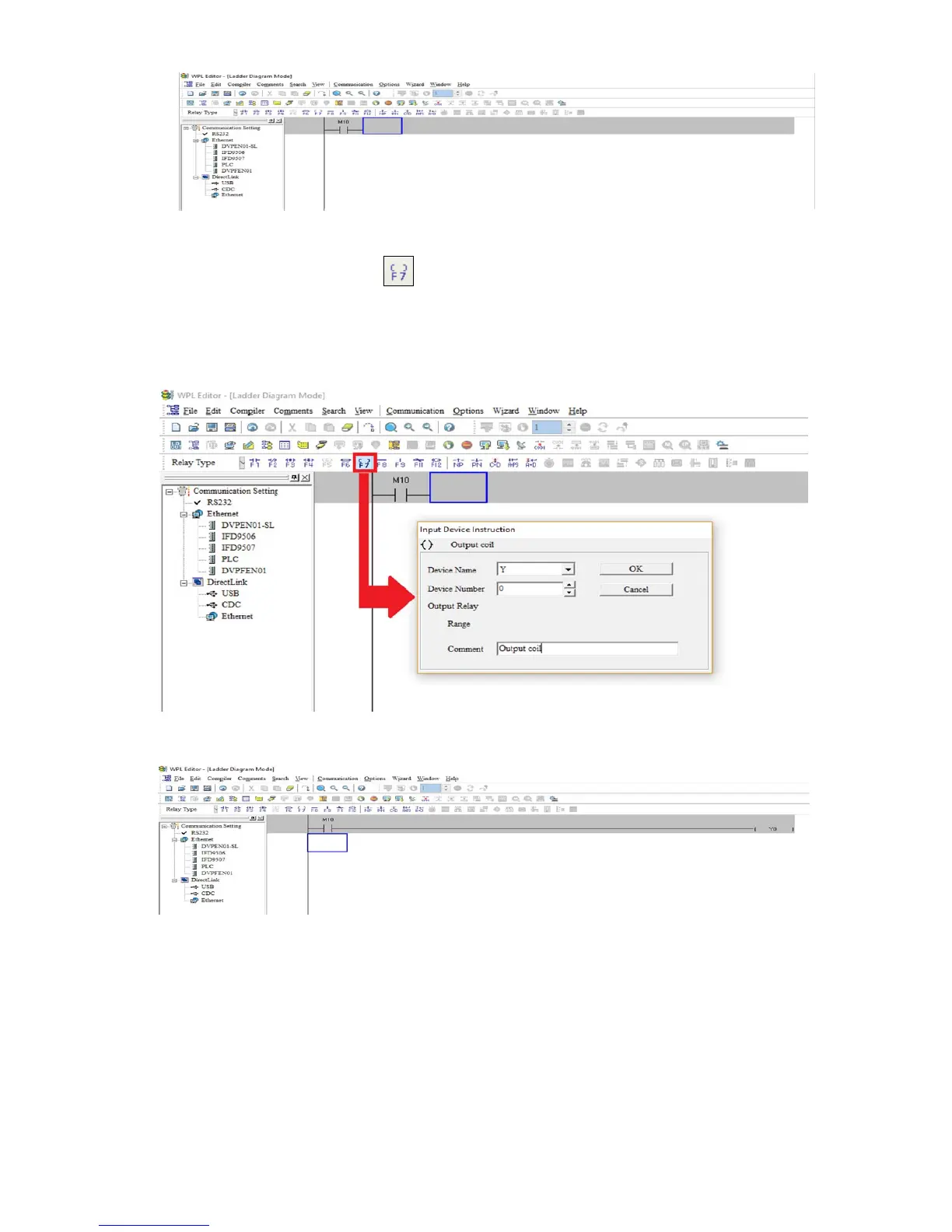

Figure 16-13
Step 3: Click on the output coil icon
or press function key F7. After the name of the input device
and the comment dialog box have appeared, the device name (such as "Y"), device number
(such as "0"), and input comments (such as "output coil") can be selected; press the OK button
when finished (see figure 16-14 and 16-15 below).
Figure 16-14
Figure 16-15
