32
Product Overview

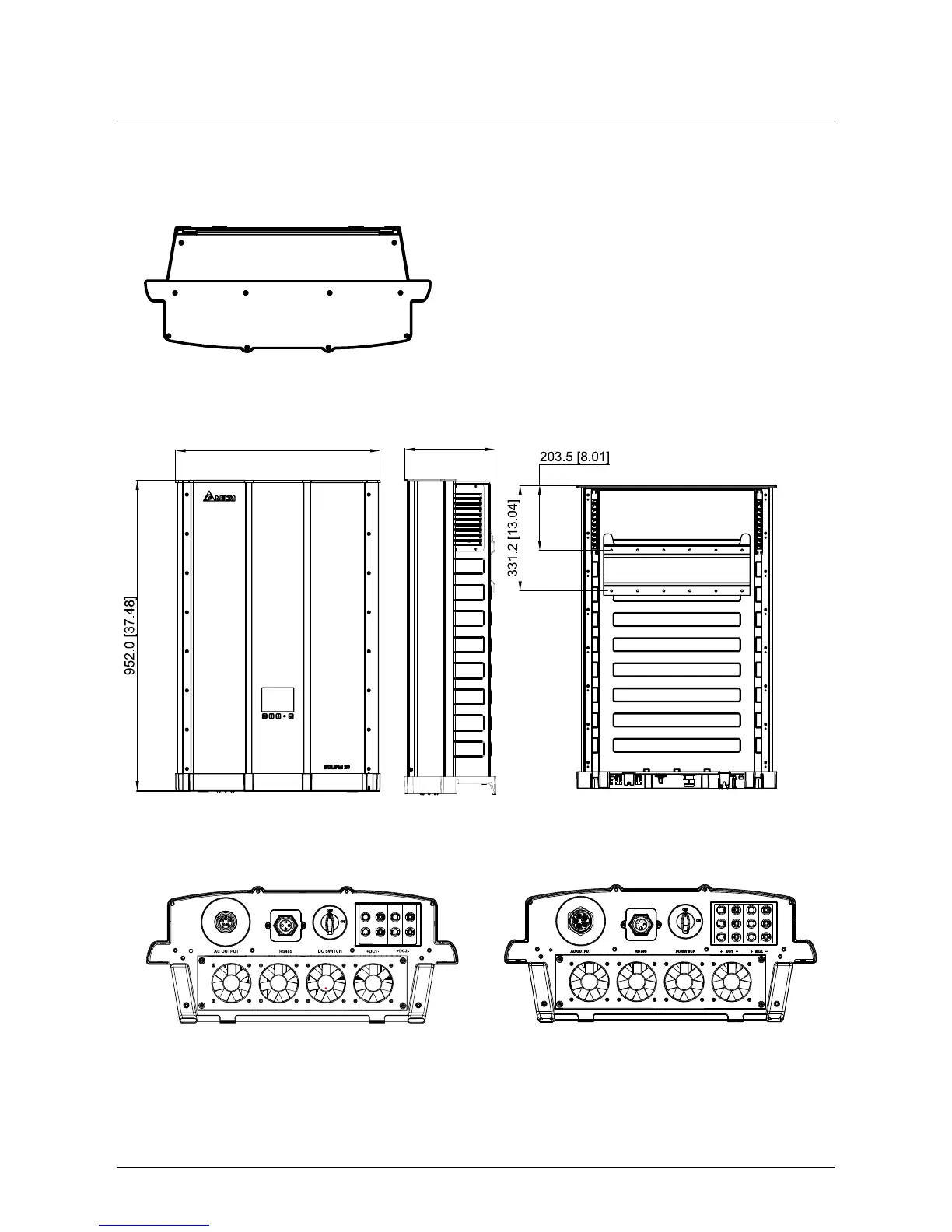

4.2 Dimensions SOLIVIA 15 TL, 20 TL, 30 TL
Bottom view: 15 TL / 20 TL
Rear viewSide view
Front view
275 [10.83]
625 [24.6]
Top view
Figure 4.2.: Dimensions of SOLIVIA 15 TL / 20 TL / 30 TL
Bottom view: 30 TL
