72
Operating the PV inverter

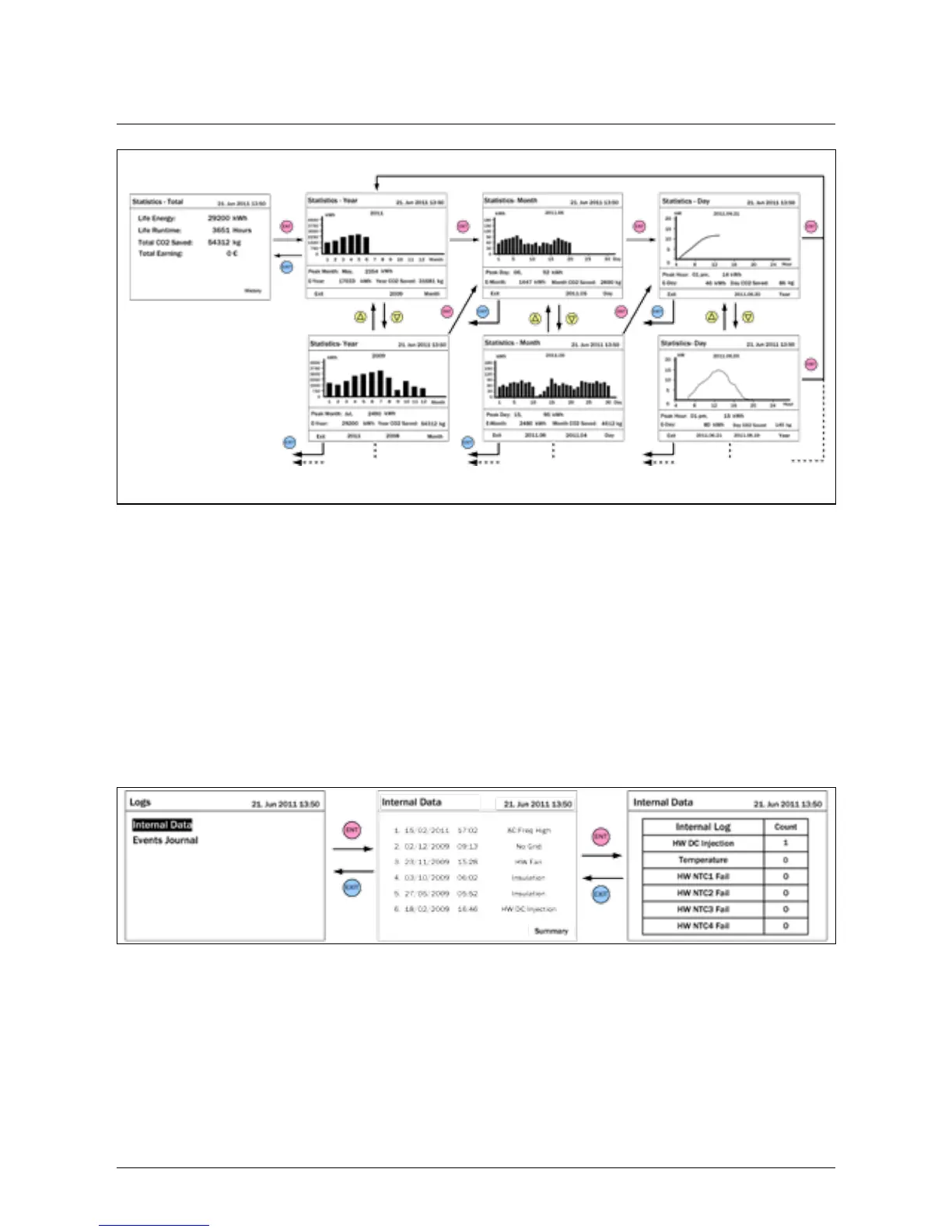

Figure 7.7.: Statistics Pages
7.3.3 Logs
After pressing ENT on this page, the user can view the internal log and can view the events log.
7.3.3.1 Internal Data
The internal data shows all messages coming from the inverter. These messages indicate the sta-
tus of internal processes and also changes on the AC and DC terminals, for example: frequency,
voltage, etc.
Figure 7.8.: Internal Data Flow Chart
7.3.3.2 Events Journal (Germany LVD or MVD Grid Only)
The events journal records all events coming through the RS485 link or made on the display at
the user level. Only events that could affect global production are shown in this log.
