EN
Operating the PV inverter

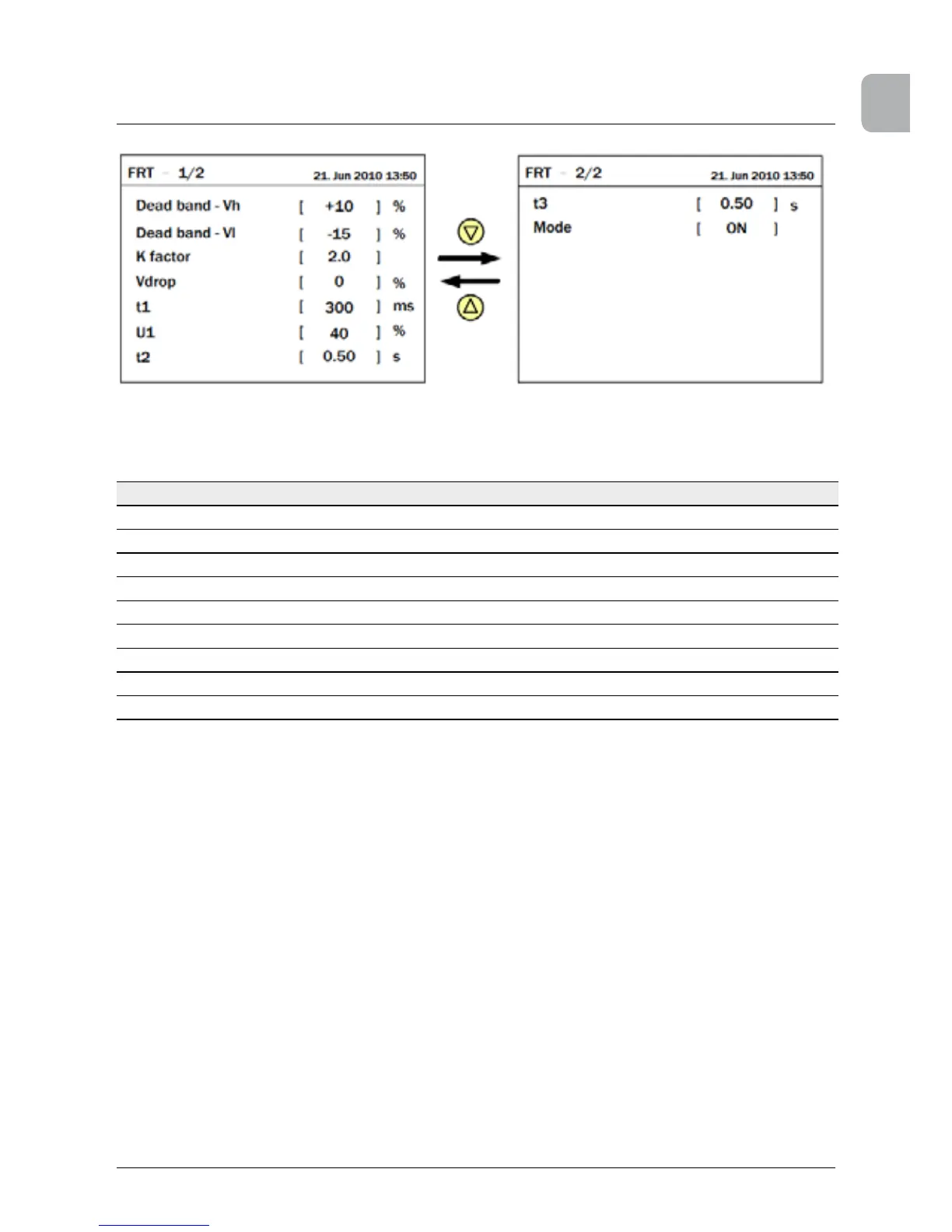

Figure 7.37.:
Fault Ride Through settings page
Adjustable parameters
Parameter
Adjustable values
Description
Dead band - Vhigh
+0 ... +20 %
10%
Dead band - Vlow
-20 ... 0 %
-15%
K factor
Do not adjust
Vdrop
Do not adjust
t1
Do not adjust
U1
Do not adjust
t2
Do not adjust
t3
Do not adjust
Mode
ON | OFF
This switches the feature ON and OFF
