Wiring the Inverter
Inverter
Next tighten the cable gland ➁ to the connector housing ➀. Tightening torque for cable
sheath diameters between 11 and 20 mm: 6 to 8 Nm. Rotate the coupling ring ➂ to mate
the connector with the inverter‘s AC plug.
After wiring the mating connector, screw
the connector housing ➀ to the coupling
ring ➂. To do this push the coupling ring
➂ to the connector housing ➀ and tighten
1-2 Nm.
Rotate the connector housing and cable
gland to remove them from the coupling
ring.
The female cable
connector needs to
be wired as shown
below.
To wire the connector refer to placement
of L1, L2, L3, N and PE shown to the left.
Screw termination is provided to x the
wires to the contacts.
NOTE: Rear view of cable
connector
L1
L2
L3
N
PE
Cable
Slide the connector housing and cable
gland onto the cable.
➀
➁
➂

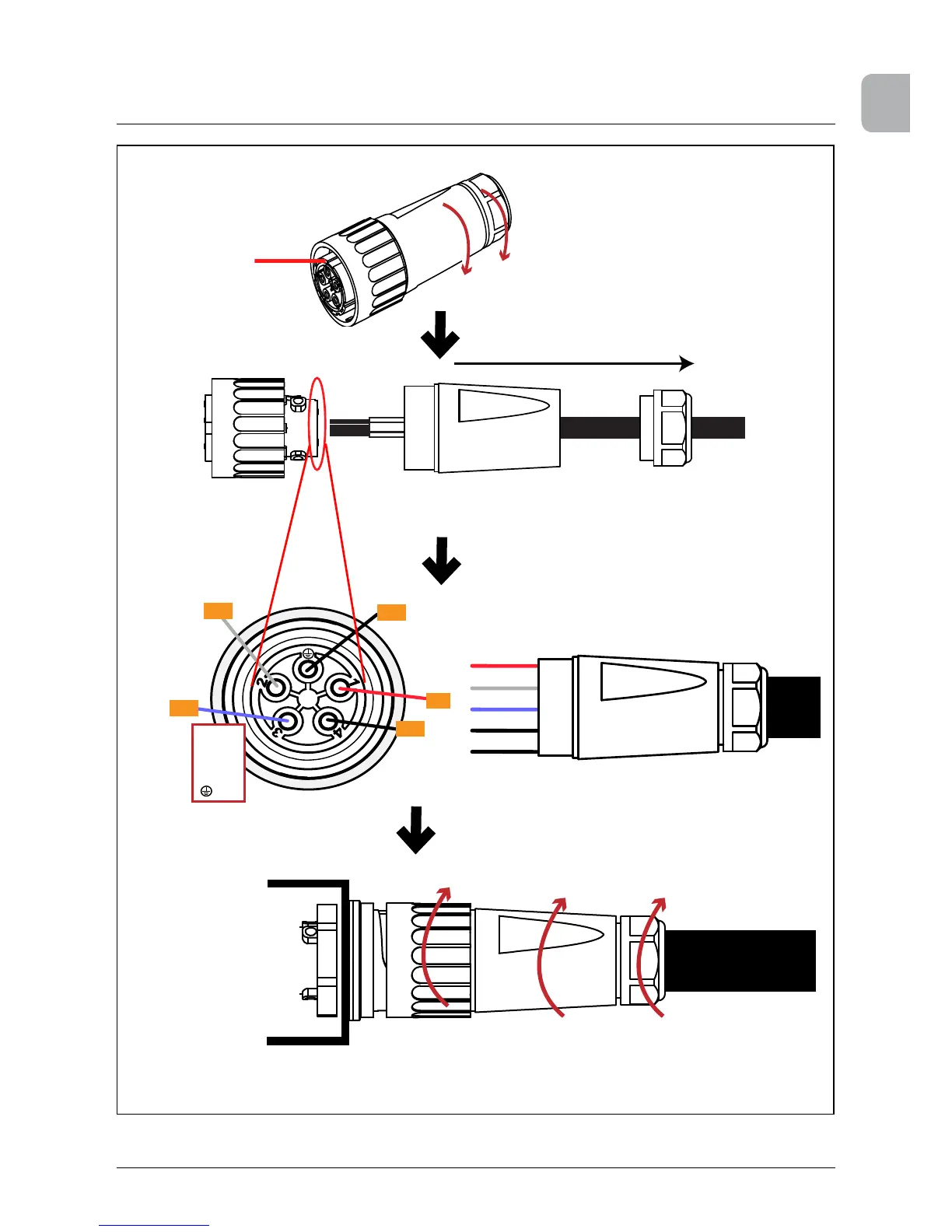

Figure 6.5.: AC connector 10 TL, 15 TL, and 20 TL
