Wiring the Inverter
➀ ➁
➂
➃
DC input panel for the 10
TL, 15 TL, and 20 TL has 4
DC inputs. The 30 TL DC
input interface shown
below, provides 6 DC
inputs.
SOLIVIA 30 EUT4TL

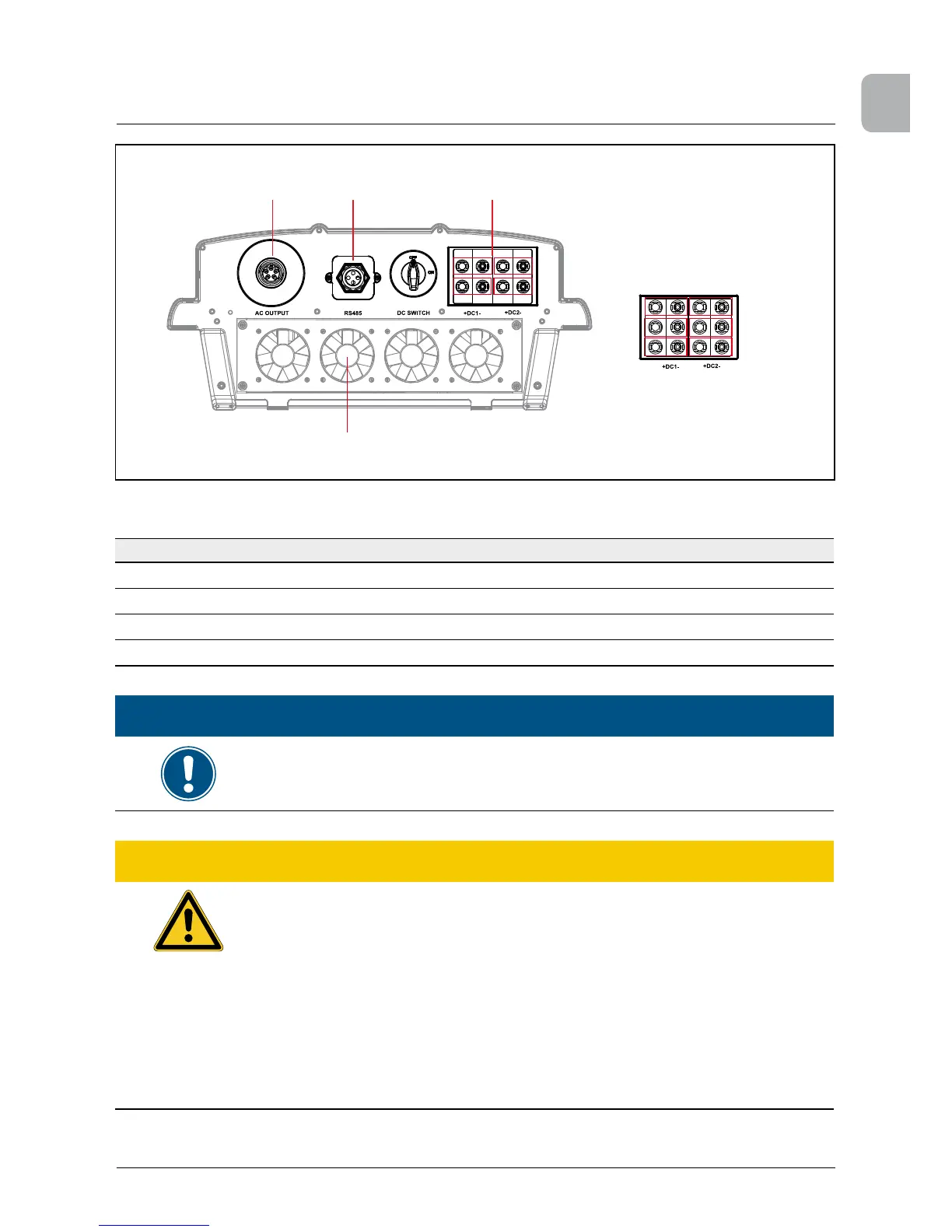

Figure 6.8.: Input/Output Interface
No. Designation Description
➀
AC connector 400 V
AC
for 10 / 15 / 20 TL ; 500 V
AC
for 30 TL
➁
Communication 2 × RS485, 1 × EPO, 2 × Dry contact
➂
DC connector 4 Strings (10 TL / 15 TL / 20 TL), 6 Strings (30 TL)
➃
Fans 4 Fans (10 TL model with only one fan)
NOTE
The fans shown are without the required protective screen for illustrative
purposes
CAUTION
Machine and equipment damage may occur.
► The connection number of PV ARRAY, open circuit voltage and power
of String_1 and String _2 must be coherent.
► The connection number of PV ARRAY, open circuit voltage and power
of String _3 and String _4 must be coherent.
► The maximum open circuit voltage of PV Array must not exceed 1000 V.
► The range of V
mpp
of Input DC1 and Input DC2 shall be 350~800 V
DC
.
► The device installed between PV array and inverter must meet the rat-
ing of voltage <1000 V
DC
and < short current.
► The input power connected to the inverter must not exceed the maxi-
mum rating of input power as shown in the table below.
