Wiring the Inverter
1.
2.
3.
Dry contact
EPO
(Emergency
Power Off)
RS485
Dip Switch
to activate
the terminal
resistor
Dip Switch
to activate
the terminal
resistor
RS485
EPO
(Emergency
Power Off)
Dry contact
15 TL / 20 TL / 30 TL 10 TL

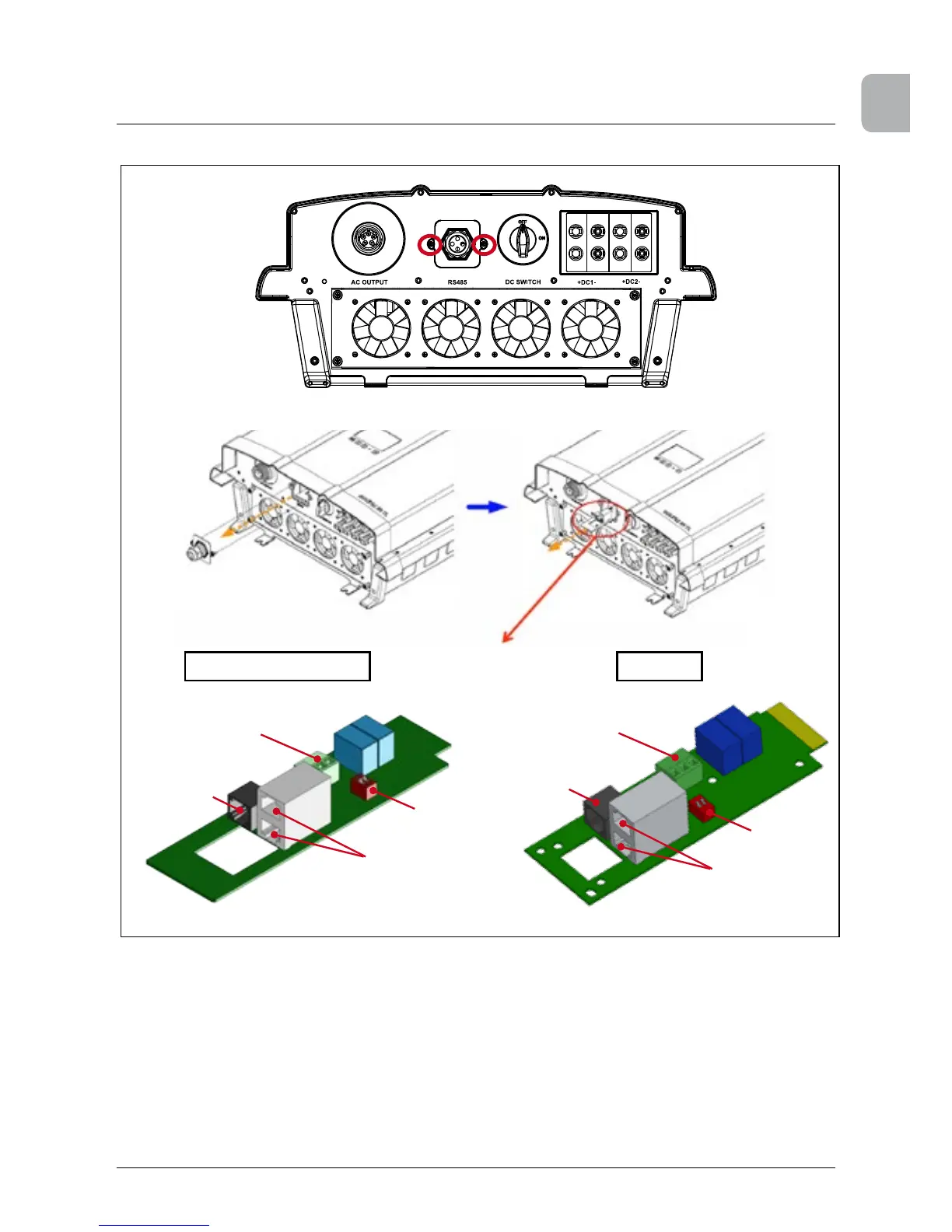

Figure 6.15.: Communication module removal
To remove the communication module follow these instructions:
1. Unscrew and remove the two Phillips screws highlighted above in Figure 6.15.
2. Remove the front plate as shown.
3. Carefully pull out the communication module from the inverter. Remove glands and plugs
where applicable.
