Operating the PV inverter
7.2 Home Page

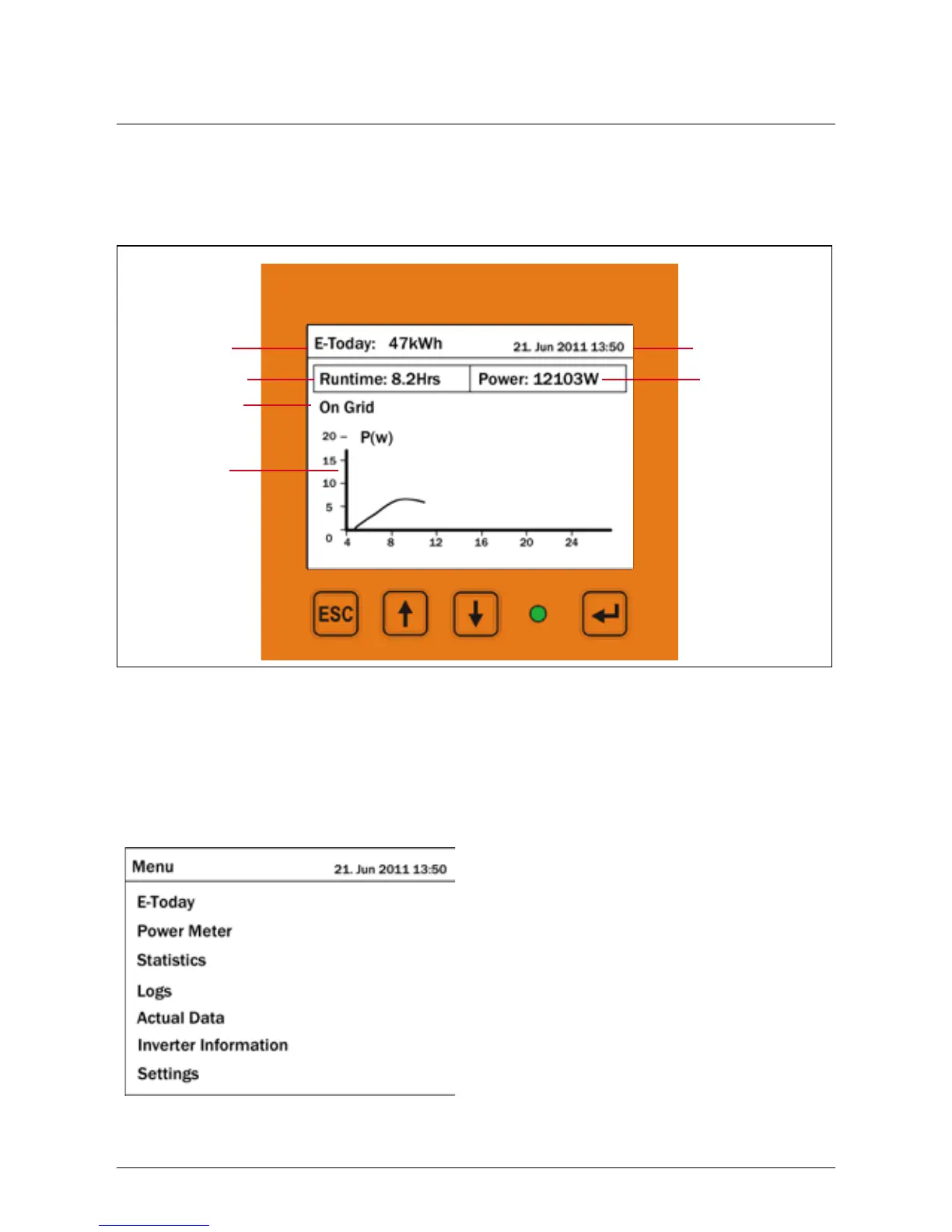

When the inverter is operating normally, the LCD will show the home page as shown in Figure 7.4.
On the home page the user can nd the output power, inverter status, E-today, date and time.
Actual Power
Date and Time
Today Power
Today Runtime
Inverter Status
Today Power
Curve
Figure 7.4.: Home page
7.3 LCD Flow Chart
Press any button to enter the menu page, the selections are shown in Figure 7.5. E-today is on
the home page; the content of the rest of the pages will be explained in detail from 7.3.1 ... 7.3.6.
Figure 7.5.: Main menu page
To Next Page
