Domino Gx150i User Manual

Counter Increment Types
Digital Input
Note An input will need to be assigned to Counter, see I/O Function Assignment on
page 82.
To set a counter that will increment each time an input to one of the controller's I/O connectors/
terminal blocks is activated:
1.
Select Home > Setup > Global Print Settings > Counter settings.
2. Select a counter name.
Note
Counter elements that are assigned this name will use these settings.
3. Select Increment type and select Digital Input.
4. Select Increment source and select the I/O connector/terminal block input pin number that
will trigger the counter to increment.
End of procedure.
Counter Overrun
To set a counter that will increment when another counter in the label reaches it's end value:
1. Select Home > Setup > Global Print Settings > Counter settings.
2. Select a counter name.
Note Counter elements that are assigned this name will use these settings.
3. Select Increment type and select Counter Overrun.
4. Select Increment source and select the counter that will trigger this counter to increment.
End of procedure.
After Each Message Group
This increment type sets the counter to increment after each label is printed. Or if making more
than 1 print per print trigger (# of prints per object), the counter will increment after the specified
number of prints per object has been printed.
Note The # of prints per object is set in the label's settings, see Label Settings on
page 134.

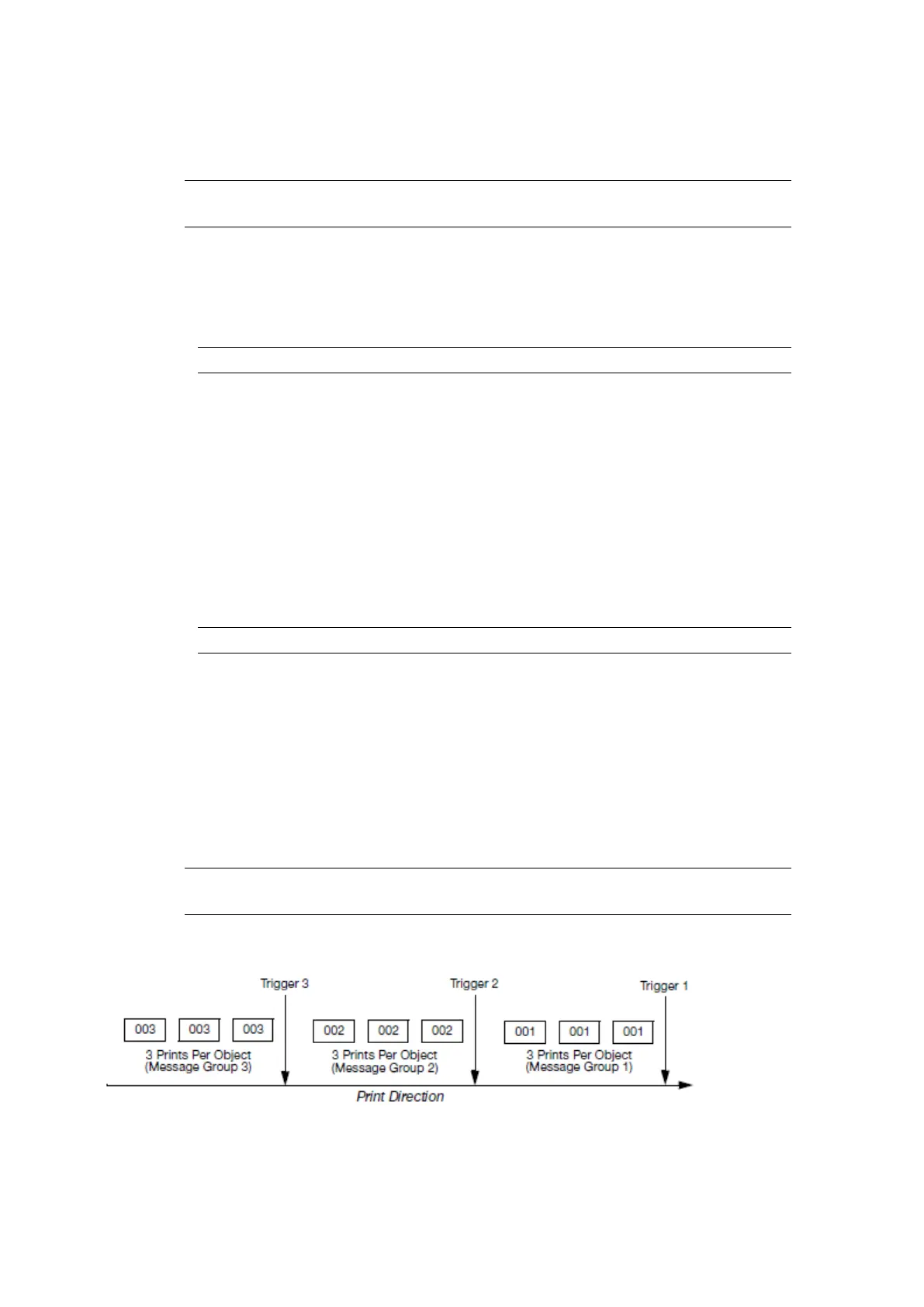

For example, if # of prints per object is set to 3 and Increment type is set to After each message
Group, the counter will increment in the order illustrated below
OPERATION
EPT053091 - Issue 5 - 07 May 2021 162
