Pin Description Pin Description

7 Alarm Common 8 Not Used

9 External Output 2 Common 10 External Input 2 Common

11 External Output 2_1 12 External Input 2_1

13 External Output 2_2 14 External Input 2_2

15 External Output 2_3 16 External Input 2_3

17 External Output 2_4 18 External Input 2_4

I/O Connection Examples (Gx-IC10/Gx-OEM)

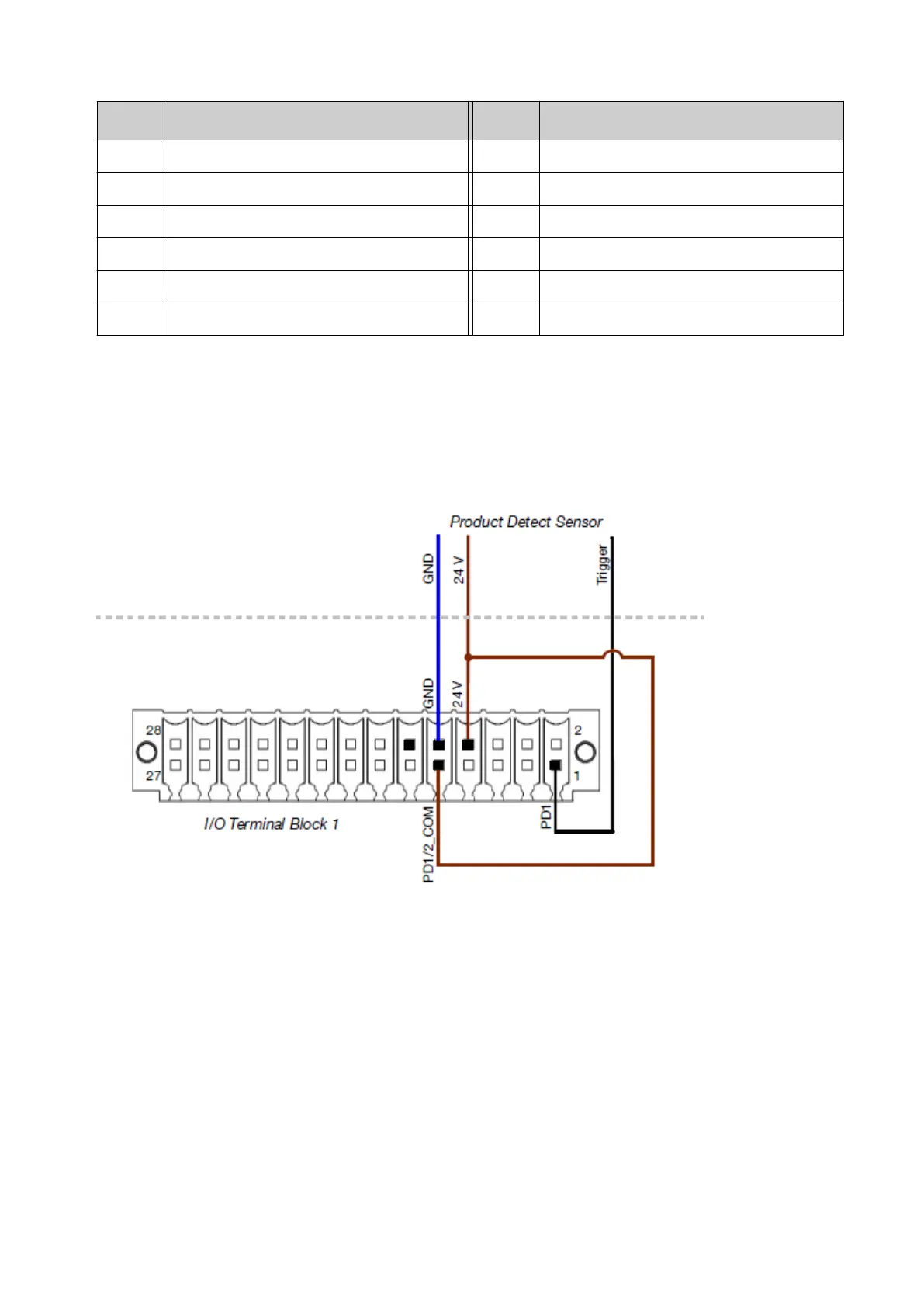

Product Detect Sensor NPN Connection

4 product detect sensor trigger inputs are available on I/O terminal block 1. The diagram below

illustrates the connection to PD1. The other product detect sensor trigger inputs (PD2, PD3, and

PD4) are listed see I/O Terminal Block 1 Layout (Gx-IC10/Gx-OEM) on page 44.

Gx-IC10/Gx-OEM Product Detect Sensor NPN Connection

INSTALLATION

47 EPT053091 - Issue 5 - 07 May 2021
