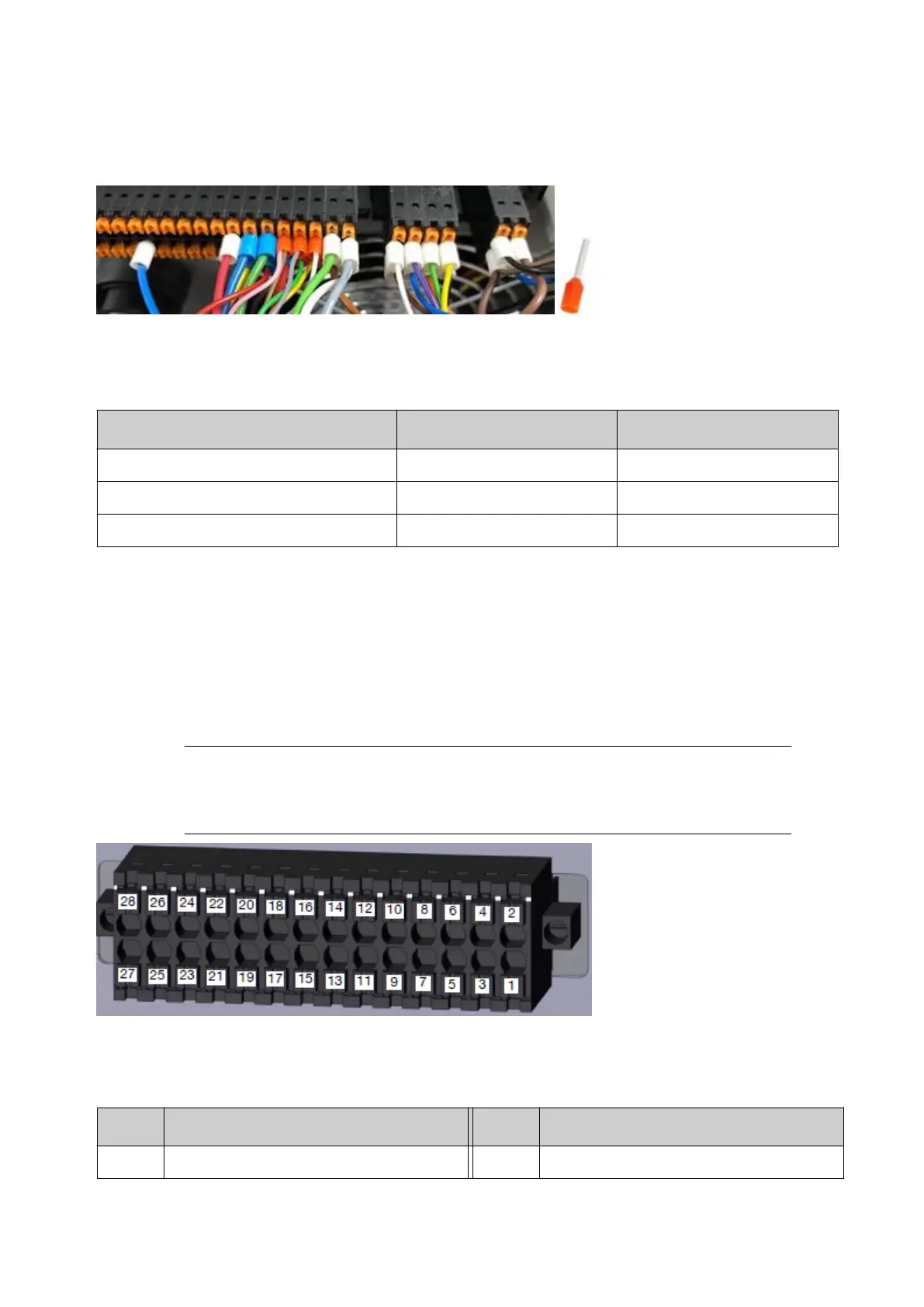

I/O Terminal Block Wire Termination (Gx-IC10/Gx-OEM)
To provide support for wires connected to the I/O terminal blocks, it is recommended to
terminate the wire ends with bootlace style insulated cord end terminals.
There are two recommended specifications for cord end terminals. The specification depends if
2 wires or 1 wire needs to be inserted. The specifications are listed in the table below.
Bootlace Cord End Terminal Specification
To Insert 1 Wire To Insert 2 Wires
Pin Length: 12 mm 12 mm
Pin Diameter: 1.5 mm 1.5 mm
To Accept Maximum Wire Size: 0.5 mm² 0.75 mm²
I/O Terminal Block 1 Layout (Gx-IC10/Gx-OEM)
Gx-IC10 and Gx-OEM Controllers have two I/O connectors.
Use a B2CF 3.5mm, 28 way, pluggable terminal block to connect to the controller's S2C terminal
block.
To define input and output functions, see I/O Function Assignment on page 82.
The pin assignment for I/O terminal block 1 is llustrated below.
Note The layout was changed, for I/O terminal blocks on Gx-OEM controllers from
serial number E79888D0G111242 onwards, and Gx-IC10 controllers from serial
number E79961F0G111198 onwards. The terminal block layouts for controllers
that are earlier and later than these serial numbers are both listed below.
1 x S2C 3.5mm, 28-Way, Terminal Block (External View)
Gx-OEM Serial Number E79888D0G111242 or Later, and Gx-IC10 Serial Number
E79961F0G111198 or Later.
Pin Description Pin Description
1 Product Detect 1 (PD1) 2 Output 24 V DC
INSTALLATION
EPT053091 - Issue 5 - 07 May 2021 44
