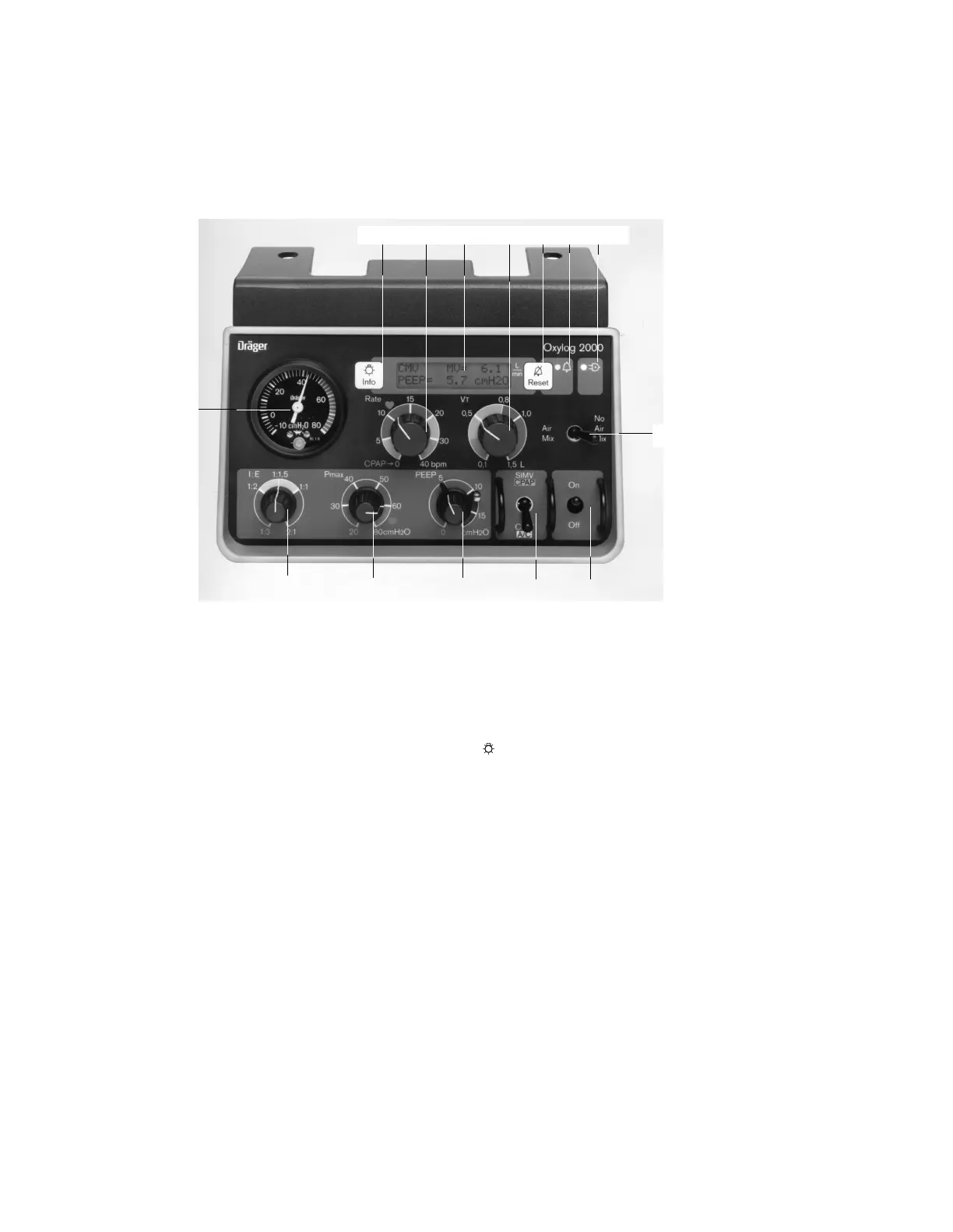

What's What
Front View
Operating Instructions Oxylog 2000, SW 3.n
48
12 Liquid crystal display for minute ventilation, alarm and
advisory messages
13 Dial knob for ventilation rate »Rate«,
infinitely adjustable from 5 to 40 bpm.
0 bpm position used for »CPAP« ventilation mode
14 »
M
Info« key to display additional settings and
measured values, to switch on LCD backlighting for
30 seconds and to check all displays and the audible
alarm
What's What
Front View
1 Pressure gauge for airway pressure
2 Dial knob for ventilation time ratio »I:E«,
infinitely adjustable from 1 : 3 to 2 : 1
3 Dial knob for limiting the airway pressure »Pmax«,
infinitely adjustable from 20 to 60 cmH2O; can also
be set to 80 cmH2O.
4 Dial knob for »PEEP«,
infinitely adjustable from 0 to 15 cmH2O, with lock
for PEEP greater than 10 cmH2O.
5 Switch for ventilation modes: CMV / Assist Control
and SIMV/CPAP
6 ON/OFF switch »0 / I«
7 Selector switch for inspiratory oxygen concentration
during CMV / A/C and SIMV
No Air Mix = 100 % O2 by vol.
Air Mix = 60 % O2 by vol.
8 Green power supply status light
9 Red alarm status light
10 »g Reset« key, used to silence audible alarms for
approximately 2 minutes and to clear alarm messages
11 Dial knob for tidal volume VT,
infinitely adjustable from 0.1 L to 1.5 L
MT 308-98
14 13 12 11 10 9 8
7
2 3 4 5 6
1
