What's What
Right-Hand Side View
Operating Instructions Oxylog 2000, SW 3.n
50

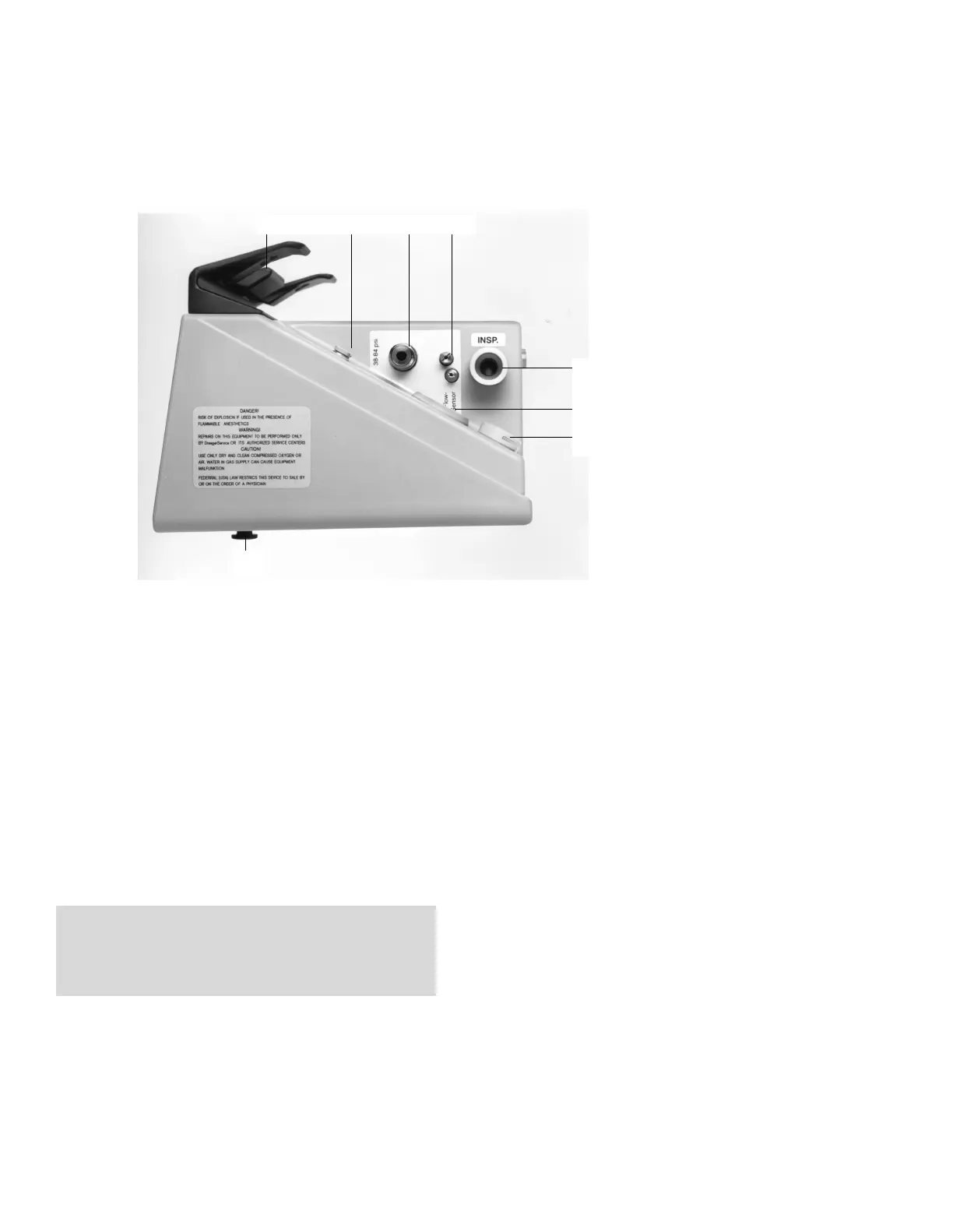

Right-Hand Side View
1 Bracket for securing ventilator in vehicles and for
hanging unit from wall rails and horizontal tubes up to
38 mm (1.5 inch) diameter
2 Connector for external power supply (AC adapter unit
or on-board supply with DC/DC converter)
3 Connector for O2, 40 to 88 psi ( = 2.7 to 6.0 bar)
4 Connectors for flow measuring hoses
5 Inspiratory port, 22 mm ISO taper
6 Beeper
7 Ventilator air intake and exhaust
8 Ventilator feet, may also be used to secure the
carrying strap
WARNING !
Do not block air intake. Ventilator malfunction
will result.
8
1 2 3 4
5
6
7
