Instructions for Use Oxylog 3000 SW 1.n 131
Principles of Operation

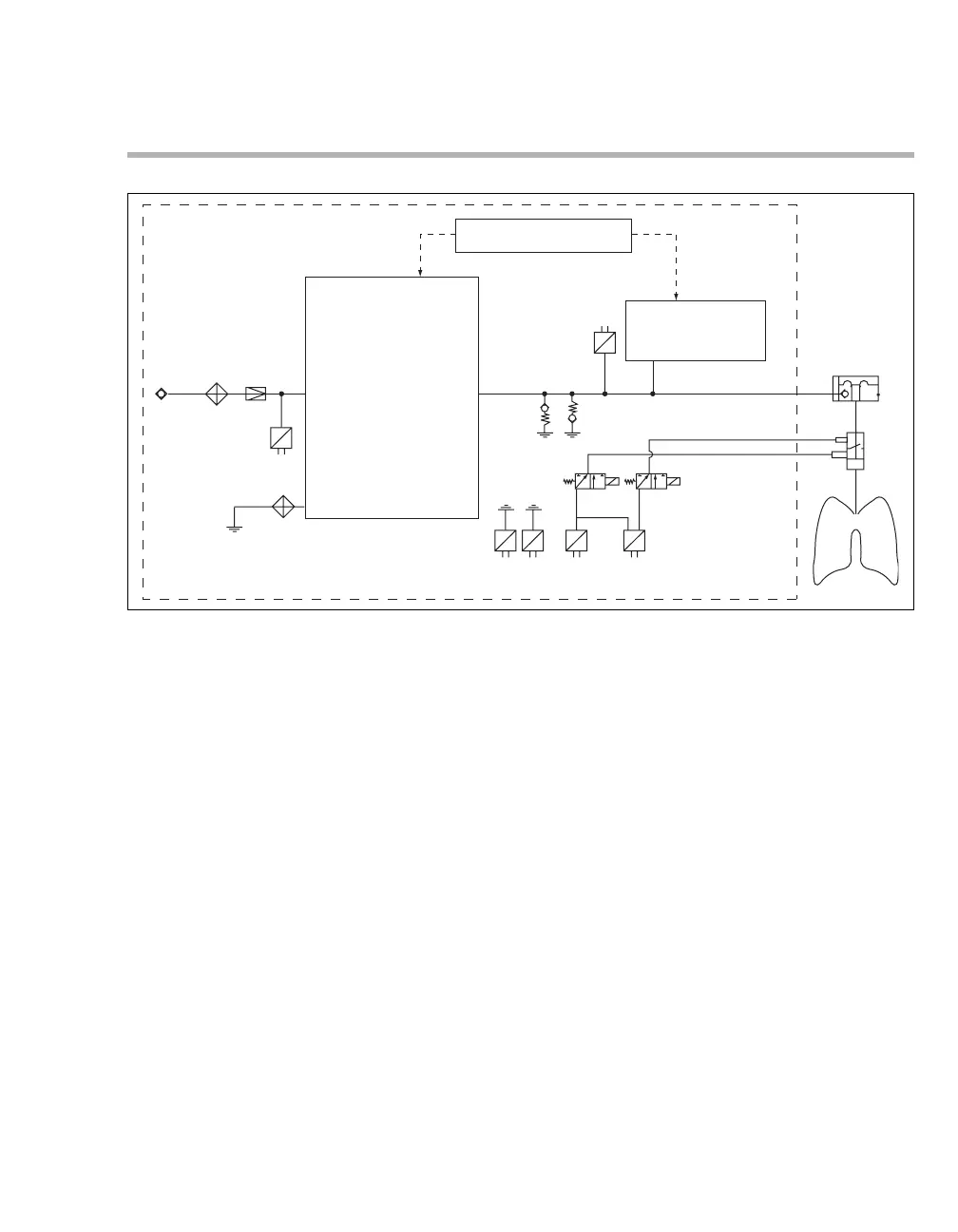

Functional description
The variable pneumatic actuators in the
Oxylog 3000 are controlled by the microprocessor
system via digitized electrical signals.
Gas supply
The supply gas O2 is purified by filter F1 and
adjusted to a constant pressure by pressure
regulator DR. Ambient air is taken in via filter F2 as
required. The supply pressure is monitored by
pressure sensor S3.
Inspiration
Gas blender V1-3 delivers the variable inspiration
flow as a mixture of supply gas O2 and ambient air
in accordance with the ventilation mode and
required O
2 concentration. The tidal volume is
applied regardless of ambient pressure (absolute
pressure sensors S7 and S9) under patient
conditions BTPS for volume-controlled breathing;
the applied tidal volume corresponds with that set
for BTPS, taking into account the ambient
pressure. In this way, Oxylog 3000 meters and
measures roughly 10% less volume in operation
with a test lung (dry gas at room temperature).
Expiration
During volume-controlled inspiration, pressure con-
trol V6 closes the inspiratory channel and controls
the PEEP pressure during expiration or reduces the
pressure in the inspiration hose to control the ASB,
Pinsp or Pmax pressure when the target values are
reached. Breathing valve V10 on the patient side,
which is indirectly controlled by V6, seals off
against atmospheric air during inspiration and
adjusts the required patient pressure during expira-
tion by controlling the pressure in the inspiration
hose. The measured value of the airway pressure
sensor S5 on the patient side serves as a set point
for pressure regulation.
10737171
Microprocessor system
Pressure control V6
O
2
F1
F2
DR
SV
S8
S4
S9 S7 S5 S6
NV
V10
V7 V8
S3
Gas blender
V1 - 3
P
P
E
P
E
P
E
P
E
P
E
E
