Part Names and Their Functions
1
Before Using This Machine

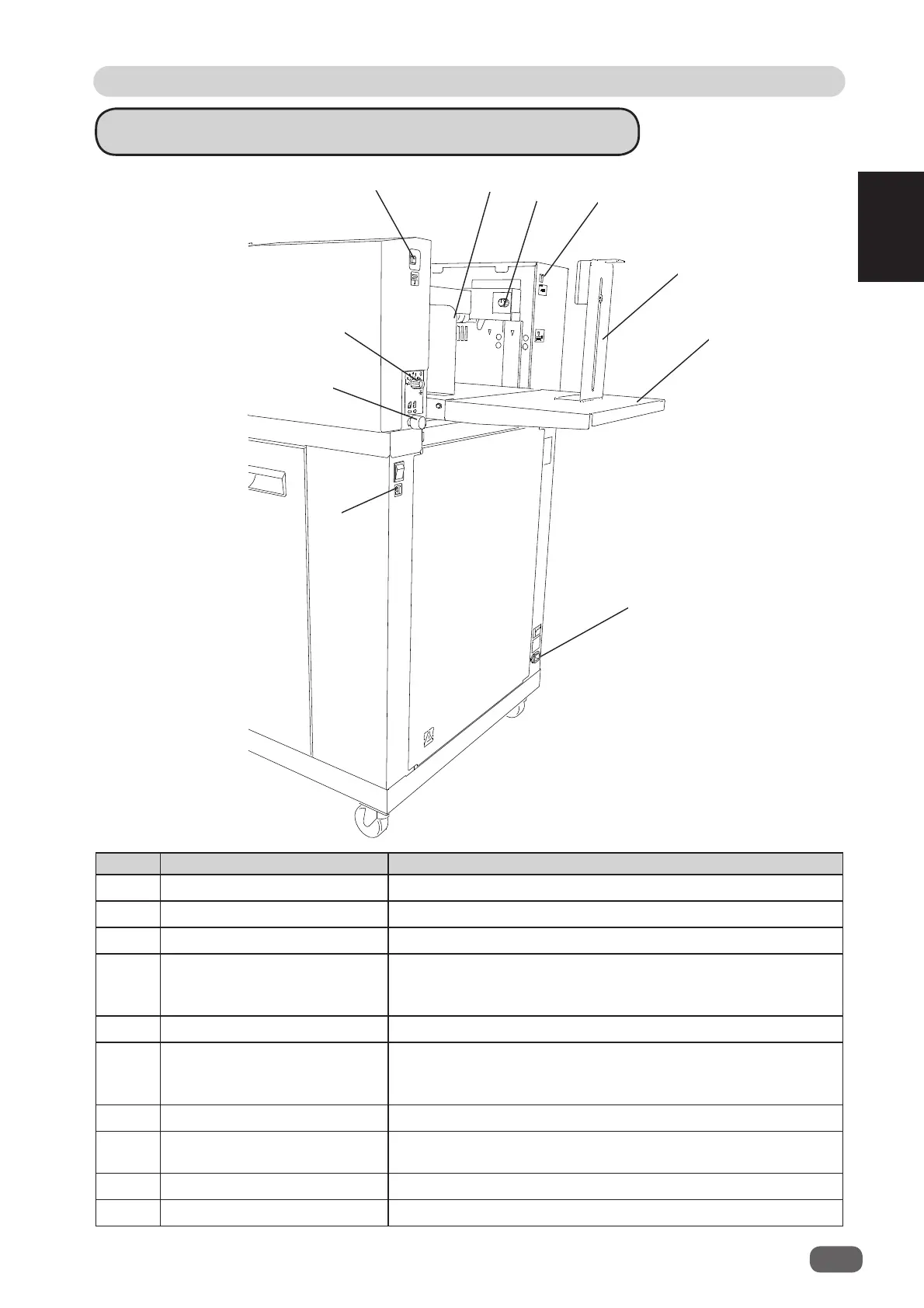

Appearance (Document Feed Side)
No. Name Function
1 Feed tray Place original documents here.
2 Back guide (for feed tray) Set this according to the document length.
3 Side guide (for feed tray) Set this according to the document width.
4 Level adjustment knob
Adjusts the height of the feed tray. Adjust the height of the
elevator with this when a document is not fed or is double-
fed.
5 Elevator down switch Press this to lower the feed tray.
6 Separator adjustment knob
Adjust the distance between the separator and the
conveyance belt with this when a document is not fed or is
double-fed.
7 Skew adjustment knob Adjusts document skew.
8 USB terminal
Used for the connection to your computer on the PC
Controller used.
9 Power switch Press this to turn on/off the power.
10 AC inlet Connect the power cord here.
5
6
7
8
9
10
4
3
2
1
