Part Names and Their Functions

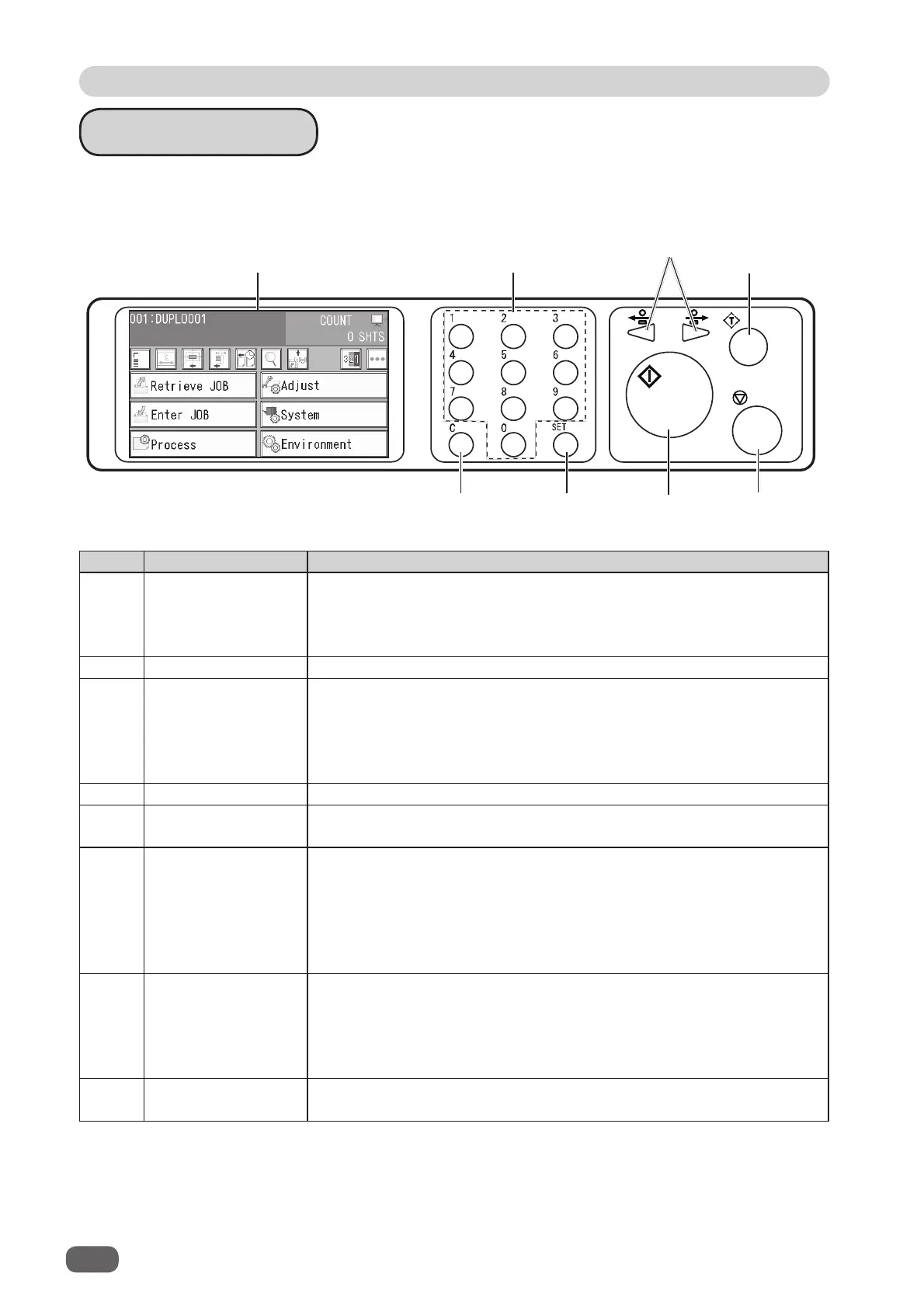

Control Panel
No. Name Function
1 Touch panel
Displays operation and status of the machine, and sets functions.
Displays a message when an error occurs.
Operate the machine by touching the key and the icon displayed on
the touch panel.
2 NUMERIC key Press this to enter JOB/values during manual programming.
3 CLEAR key
Press this to clear the entered value when programming a JOB.
Press this to clear the count of sheets processed in the
count-up
mode
.
Press this to clear the count of sheets processed in the
preset
count mode
, which switches to the
count-up mode
.
4 SET key Press this to set selection/entry.
5
JOG (forward/
backward) key
Press this to eject the document from the machine when a document
jam has occurred.
6 START key
Press this to start processing documents.
The START key light turns green when the machine is ready to
process documents.
This is inactive when the light is red. In this case, the machine may
be running or having an error.
Pressing and holding this key enters
pause feeding mode
.
7 TEST key
Press this to process one sheet of documents to test the current
JOB details.
Press this to check if the documents are processed properly.
Pressing and holding the TEST key enters
card stacker adjustment
mode
.
8 STOP key
Press this to switch the current screen to the main screen or to stop
processing.
1
2
3
4
5
6
7
8
