Part Names and Their Functions
1
Before Using This Machine
Inside

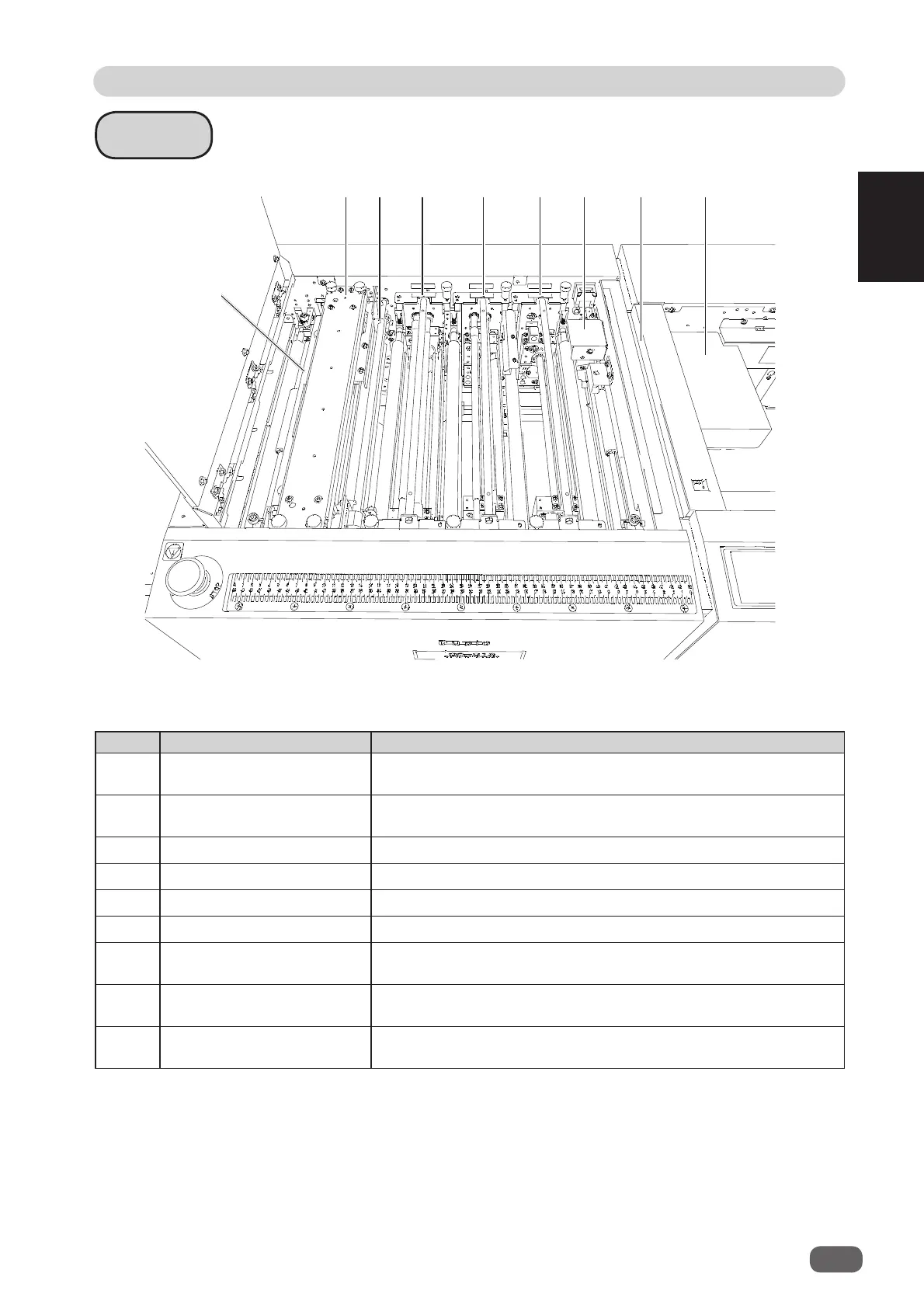

No. Name Function
1 Belt suction unit
The suction fan sucks up documents one by one and the
feed belt feeds each of them.
2
Double feed detection
section
Detects double feed with the ultrasonic sensor.
3 CCD section Reads a REG mark and a barcode.
4 Slot 1 Install the margin slitter module here.
5 Slot 2 Install the center slitter module 1 here.
6 Slot 3 Install the center slitter module 2 here.
7 Gutter defl ector section
The gutter defl ectors automatically move according to gutter
positions and drop gutter slits in the waste box.
8 Creaser section
Creases a document perpendicularly to the document feed
direction.
9 Cutter section
Cuts a document perpendicularly to the document feed
direction.
2 134568 7
9
To Next Page
