Duplo DC-645 User Manual

11
11
Before Using This Machine
Before Using This Machine
This chapter contains essential information you should understand such as how to set up the system, the
names of the machine parts, etc.
Chapter 1
11

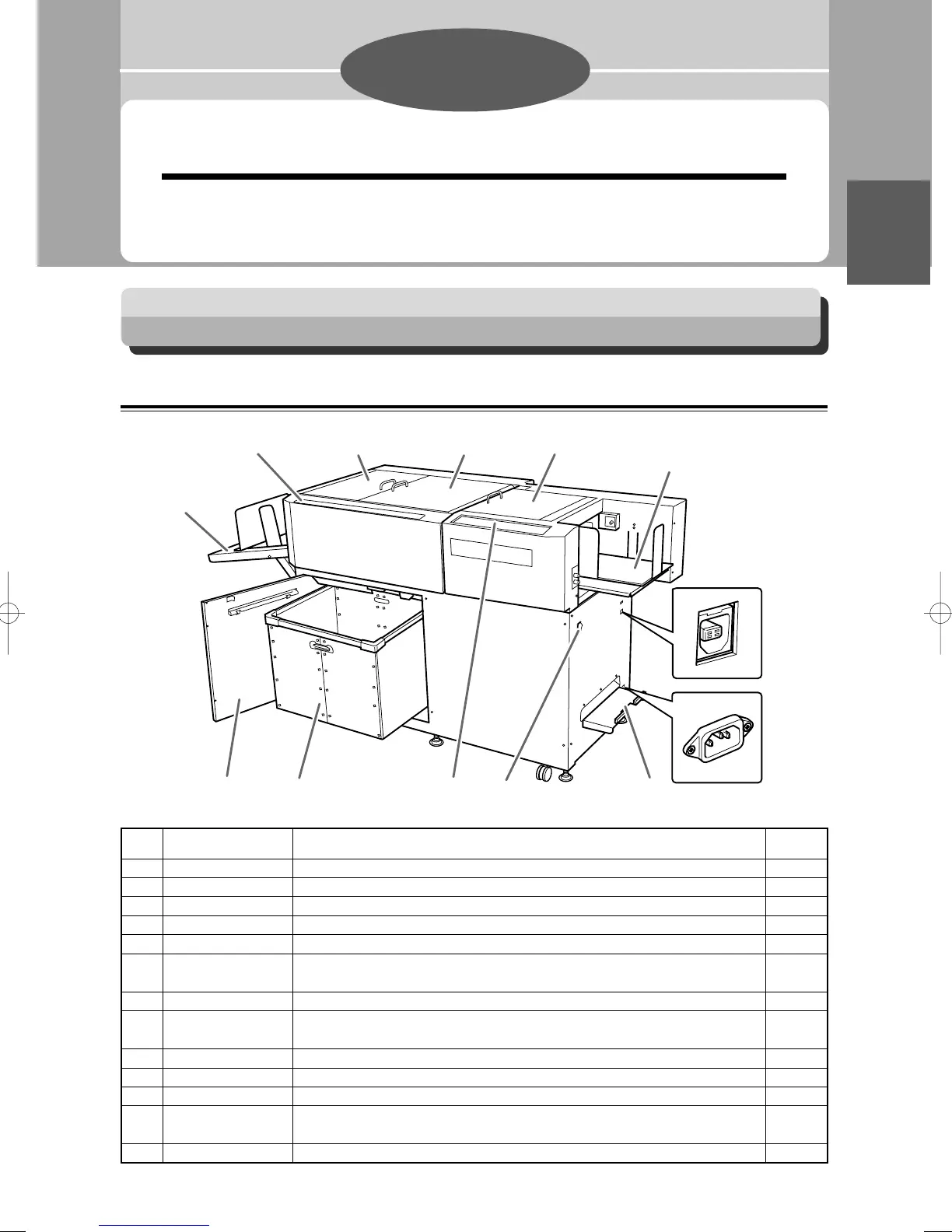

Part Names and Their Functions
Appearance
No. Name Function
1 Control panel Displays operations and statuses.
2 Waste box Receives pieces of waste paper.
3 Front cover Open to remove pieces of paper in the waste box.
4 Stacker tray Receives the finished document.
5 Scale This measures the cut and slit position, and the finish of the document.
6 Top cover 3 Open this to remove the paper jam from the cutter/crease/optional module or
to replace the optional module.
7 Top cover 2 Open this to remove the paper jam from the slitter module.
8 Top cover 1 Open this to move the upper guide or to remove the paper jam from the feed
unit.
9 Feed tray The original document is placed here.
10 USB terminal Insert a USB cable here to connect the computer and this machine.
11 AC inlet Connect the power cord.
12 Reject tray This is where the document comes when it is rejected due to double feed,
barcode error, REG. Mark error, etc.
13 Power switch Press to switch the power on and off.
Reference
page
14
74
78,82
66,69
—
89 – 94
87,88
75,
85 – 86
70,97
18,31
16
81,99
16,17
1
13
12
11
10
9
8
7
6
5
4
2
3
