Before Using This Machine

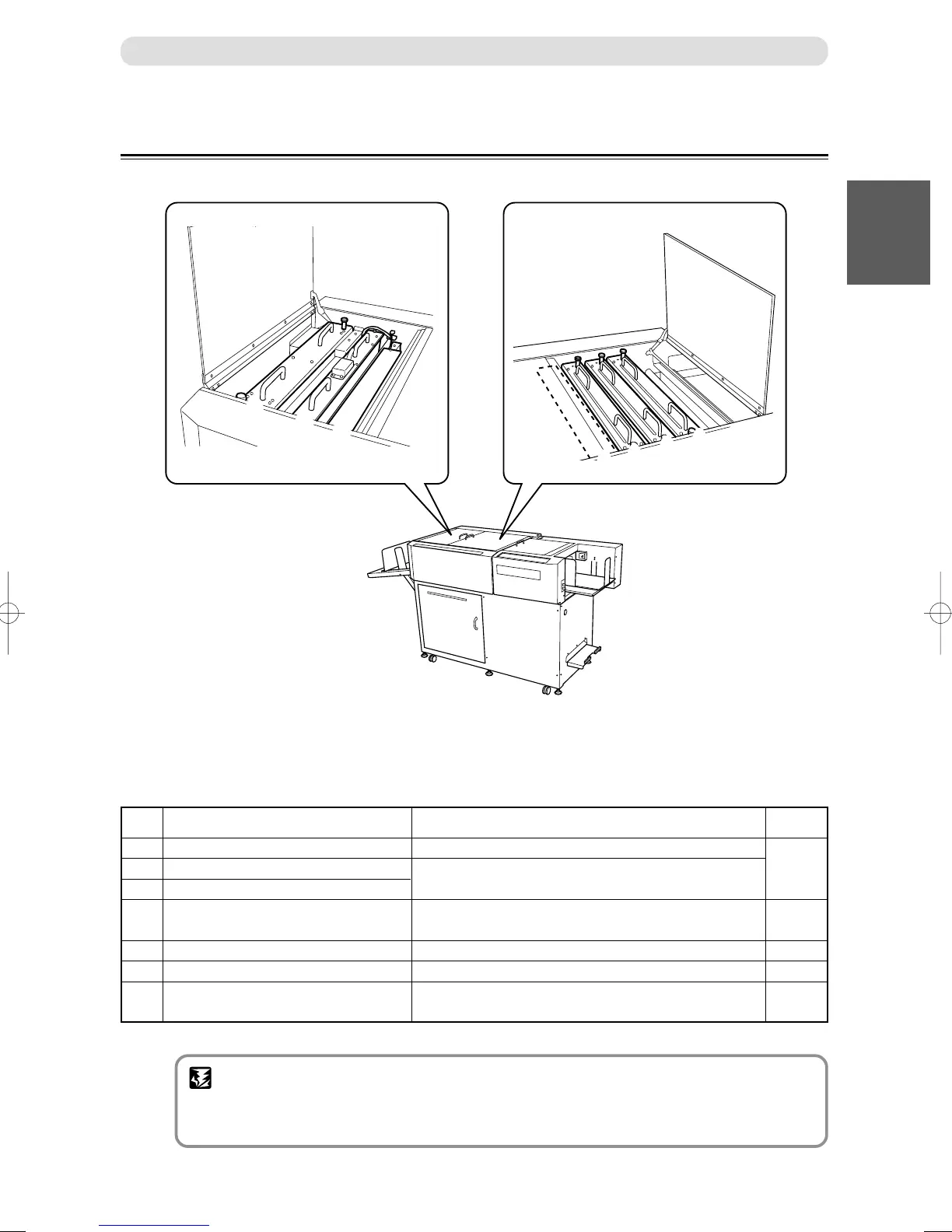

Part Names and Their Functions
Modules
No. Name
1 Slitter Module A
2 Slitter Module B
3 Slitter Module C
4 Gutter Deflector
5 Cutter Module
6 Creaser Module
7 Transport Module
(or Optional Module)
Function
Cuts off the blank-area of the further-side and front-side.
Cuts parallel in the paper feed direction.
The blank-area cut off by the slitter is dropped in the
waste box.
Cuts in a right angle in the paper feed direction.
Creases parallely in the paper feed direction.
Transports the paper to the stacker tray.
IMPORTANT
• When removing various modules of this device, always re-set the module in the sequential
order indicated in the illustration above. It is especially that the slitter module is properly
assembled, when setting slitter module A, B and C again.
Reference
page
19,54,
80,82
36,37,
72,81
54,79,80,89
54,79,81,89
36,57
1
2
3
4
5
6
7
