5.5.7 Two-Speed Timer Setup
The two-speed timers can be congured for the actuator to be controlled with
different opening and closing times. All congured timers are active in the LOCAL
and REMOTE modes.
NOTE:
All three timers, close, open, and anti-water hammer, can operate at the same time.
If two timer ranges overlap, the anti-water hammer timer overrides all timers.
1. At the “TWO-SPEED TIMER SETUP?” prompt answer “YES.”
2. Use the selector knob (NEXT/BACK) to review the settings for each timer.
3. Use the control knob (NO) to select either ON or OFF, increment the
position percentage, and pulse time.
4. Answer “YES” after each selection. See Figure 5-12.

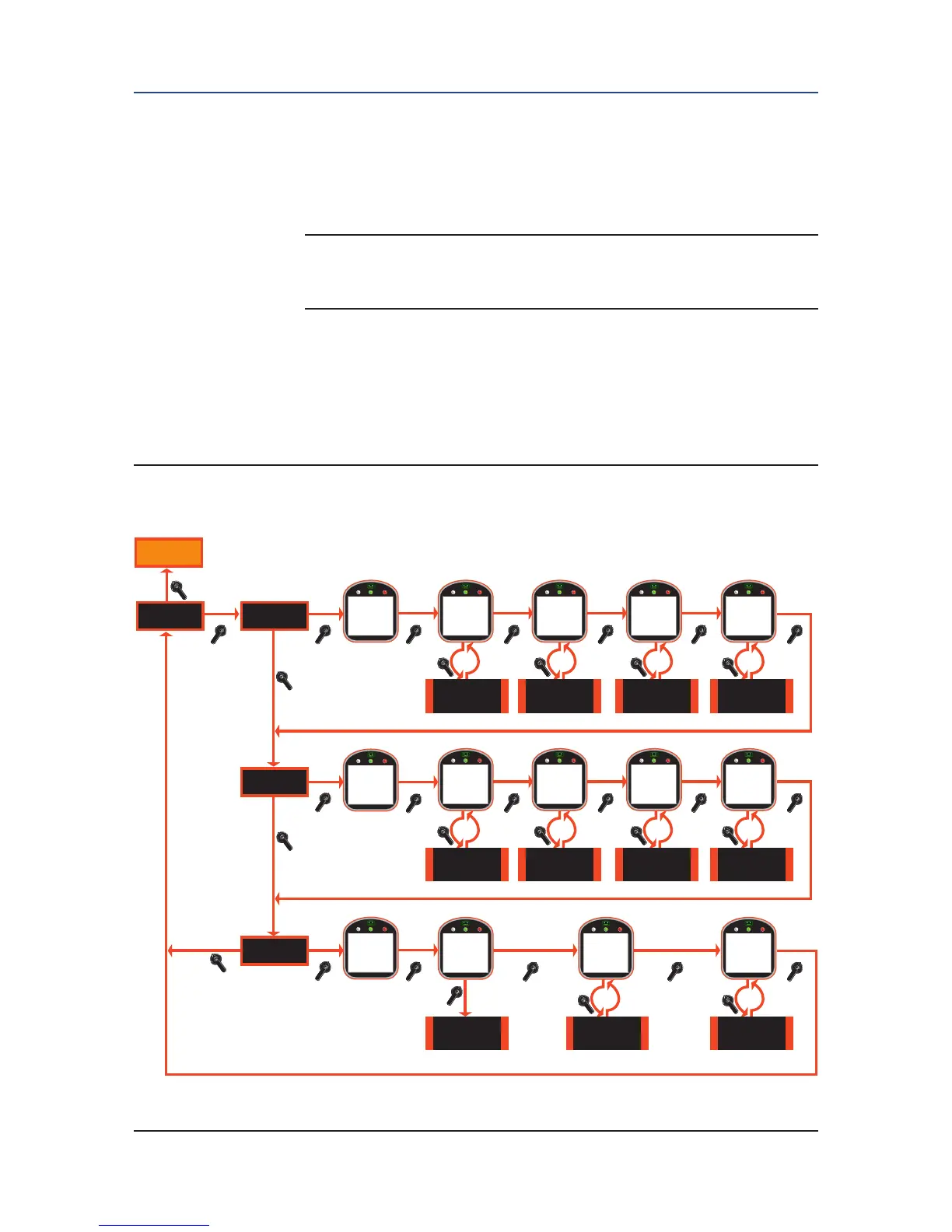

Figure 5-12 Two-Speed Timer Setup
NO
NO
NO NO NO
Figure 5-12 Two-Spead Timer Setup
Go to
Figure 5-4
YES YES
YES
YES
YES
Close Timer
<On / O>
YES
Open Timer
<On / O>
YES
YES
Anti-Water
Hammer
<On / O>
YES
Timer Start
Position:
<xx>%
YES YES
Timer Stop
Position:
<xx>%
YES
Pulse On Time:
<xx.x> Sec
Pulse Off Time:
<xx.x> Sec
TWO-SPEED
TIMER SETUP?
CLOSE
TIMER SETUP?
OPEN
TIMER SETUP?
ANTI-WATER
HAMMER SETUP?
Increment Position
1-99% in Steps of 1%
Increment Position
1-99% in Steps of 1%
1-10 sec in
0.5 sec Increments
1-100 sec in
1 sec Increments
NO NO NO NO
YES
Timer Start
Position:
<xx>%
YES YES
Timer Stop
Position:
<xx>%
YES
Pulse On Time:
<xx.x> Sec
Pulse Off Time:
<xx.x> Sec
Increment Position
1-99% in Steps of 1%
Increment Position
1-99% in Steps of 1%
1-10 sec in
0.5 sec Increments
1-100 sec in
1 sec Increments
NO
YES
Timer Start
Position:
<xx>%
YES
Pulse Off Time:
<xx.x> Sec
Increment Position
1-30% in Steps of 1%
NO
NO
NO
NO
YES
Pulse On Time:
<xx.x> Sec
1-10 sec in
0.5 sec Increments
1-100 sec in
1 sec Increments
