Appendix
Appendix
A.4 Infrared Controller (IRC) – “Clicker”
(Not available in England or Japan)
The infrared controller, otherwise known as the “Clicker,” is a small key-size, handheld unit
with four buttons as shown in the Figure below. The buttons are labeled as follows:
• YES
• NO - Stop
• NEXT - Open
• BACK - Close
These button functions correspond to the YES, NO, NEXT, and BACK functions of the
control knobs on the LDM. The “Clicker” transmits operation commands only and the
feedback information is displayed in the LDM LCD or the RDM LCD.
For the “Clicker” to control the actuator:
1. Enter “SETUP” mode using the control knobs as dened in Section 5.1, Entering
Setup Mode.
2. Select “LOCAL IrDA PORT” for control mode under Valve Control Setup.
See Section 5.5.2, Valve Control Setup.
3. Place the selector knob in the REMOTE position. Press the applicable “Clicker”
button (Open, Close, Stop) for the desired function while “pointing” the back of
the “Clicker” at the LDM or the RDM.

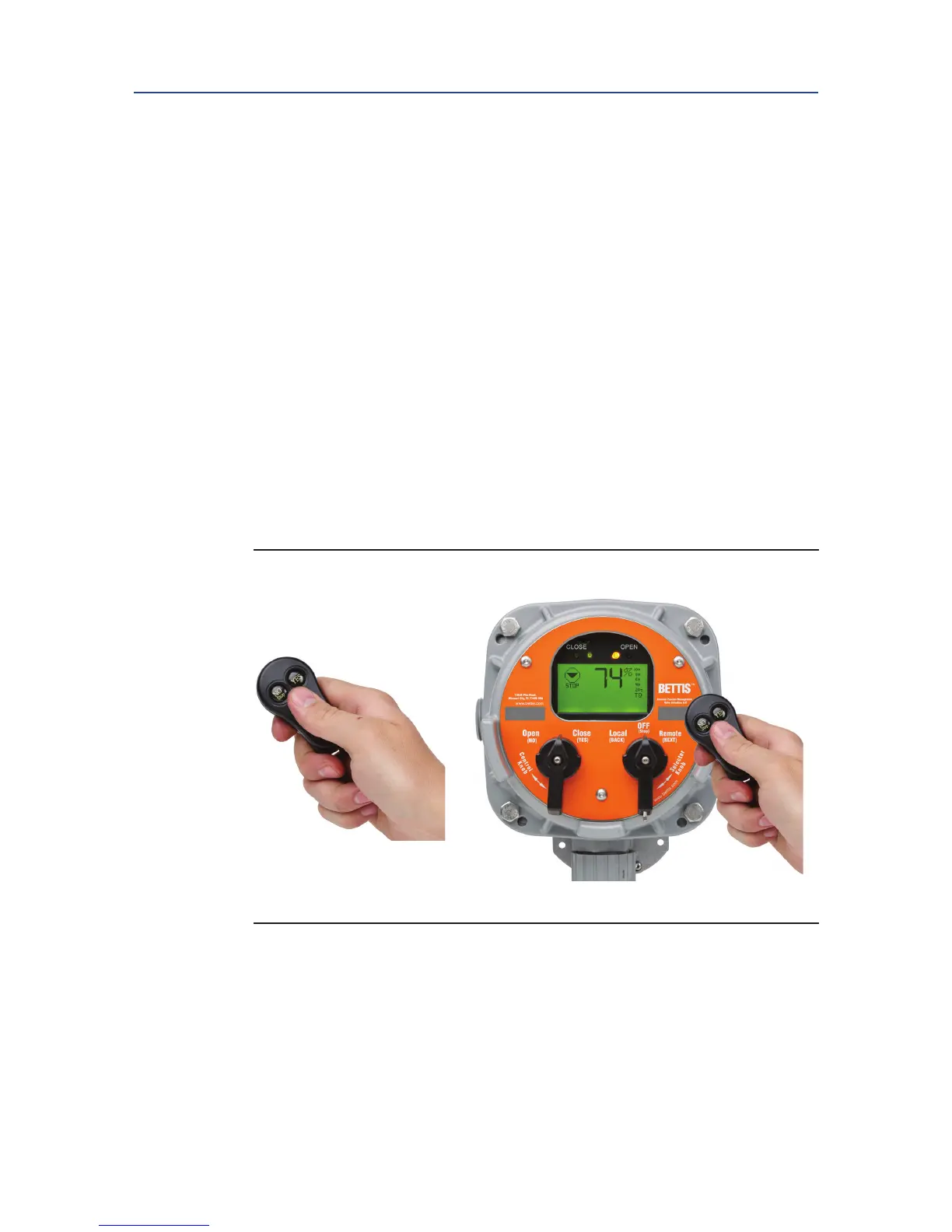

Figure A-1 Clicker
