12.15 Menus 15 and 16: Solutions Module
set-up

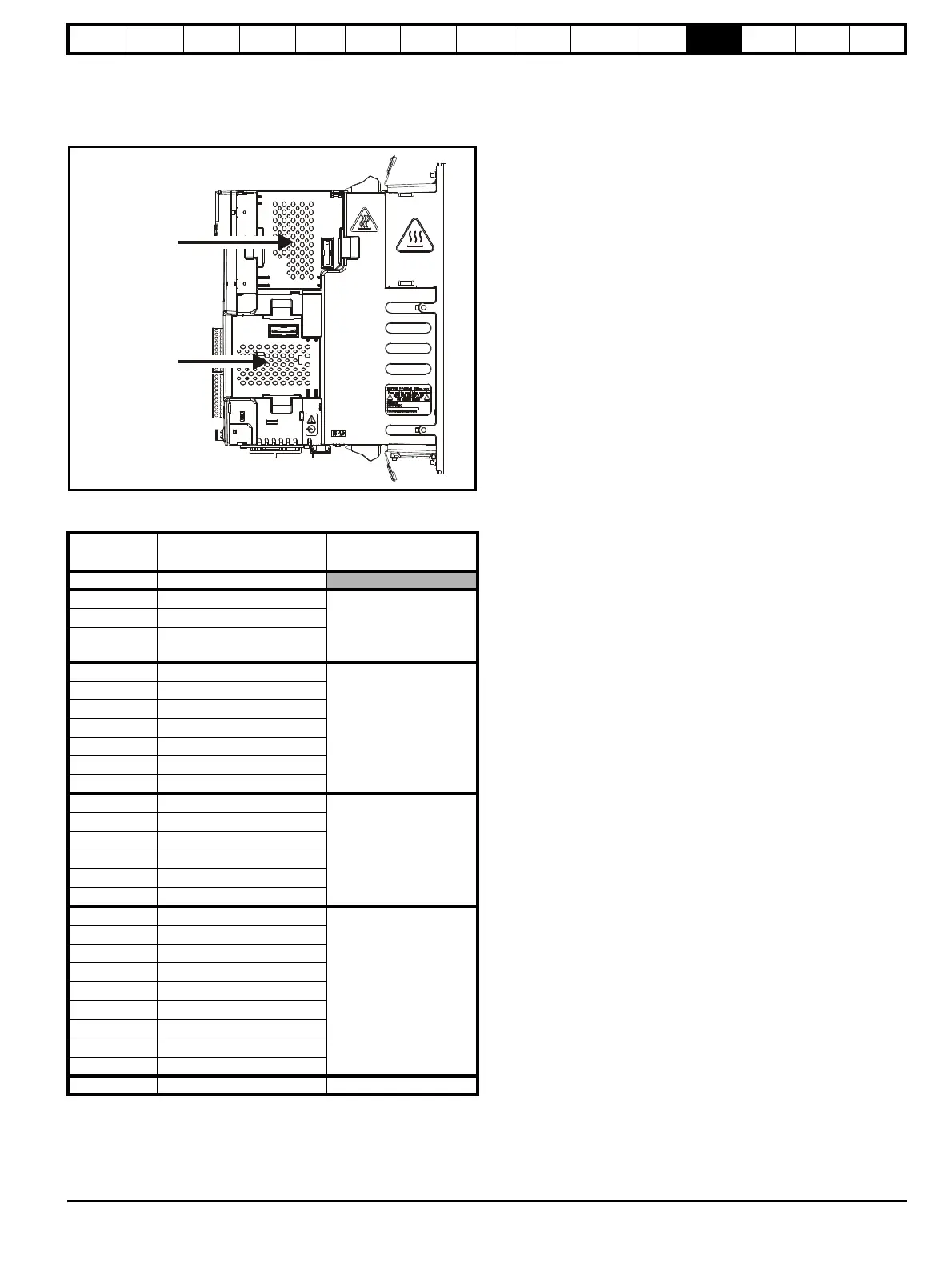

Figure 12-17 Location of Solutions Module slots and their
corresponding menu numbers
Pr 15.01 and Pr 16.01 indicate the type of module that is installed in the
corresponding slot.
* Features provided by this option are integrated within the product.
Solutions Module software
Most Solutions Modules contain software. The software version of the
module can be checked by looking at Pr x.02 and Pr x.51.
The software version takes the form of xx.yy.zz, where Pr x.02 displays
xx.yy and Pr x.51 displays zz. I.e. for software version 01.01.00, Pr x.02
would display 1.01 and Pr x.51 would display 0
The SM-Resolver, SM-Encoder Plus, SM-Encoder Output Plus and SM-
I/O Plus modules do not contain any software.
For further information relating to Solution Modules, refer to the
appropriate Solutions Module User Guide.
Solutions
Module ID
Module Category
0 No module installed
101 SM-Resolver
Feedback
102 SM-Universal Encoder Plus
104
SM-Encoder Plus /
SM-Encoder Output Plus
201 SM-I/O Plus
Automation
(I/O Expansion)
203 SM-I/O Timer
204 SM-I/O PELV
205 SM-I/O 24V Protected
206 SM-I/O 120V
207 SM-I/O Lite
208 SM-I/O 32
301 SM-Applications*
Automation
(Applications)
302 SM-Applications Lite*
303 SM-EZMotion*
304 SM-Applications Plus*
305 SM-Applications Lite V2*
306 SM-Register
401 SM-LON
Fieldbus
403 SM-PROFIBUS-DP-V1
404 SM-INTERBUS
406 SM-CAN
407 SM-DeviceNet
408 SM-CANopen
409 SM-SERCOS
410 SM-Ethernet
421 SM-EtherCAT
501 SM-SLM SLM
Solutions Module
slot 2 (Menu 16)
Solutions Module
slot 1 (Menu 15)
