Safety
Information
Product
information
Mechanical
installation
Electrical
installation
Getting
started
Basic
parameters
Running the
motor
Optimization
EtherCAT
interface
SMARTCARD
Operation
Onboard
PLC
Advanced
parameters
Technical
Data
Diagnostics
UL listing
information
Digitax ST User Guide 31
Issue: 5
Table 4-14 DST120X (200 V) emission compliance (single and
three phase drives
Table 4-15 DST140X (400 V) emission compliance
Key to Table 4-14 and Table 4-15
(shown in decreasing order of permitted emission level):
E2R EN 61800-3:2004 second environment, restricted distribution
(Additional measures may be required to prevent interference)
E2U EN 61800-3:2004 second environment, unrestricted distribution
I Industrial generic standard EN 61000-6-4:2007
EN 61800-3:2004 first environment restricted distribution (The
following caution is required by EN 61800-3:2004)
R Residential generic standard EN 61000-6-3:2007
EN 61800-3:2004 first environment unrestricted distribution
EN 61800-3:2004 defines the following:
• The first environment is one that includes residential premises. It
also includes properties directly connected without intermediate
transformers to a low-voltage power supply network which supplies
buildings used for residential purposes.
• The second environment is one that includes all establishments
other than those directly connected to a low-voltage power supply
network which supplies buildings used for residential purposes.
• Restricted distribution is defined as a mode of sales distribution in which
the manufacturer restricts the supply of equipment to suppliers,
customers or users who separately or jointly have technical competence
in the EMC requirements of the application of drives.
IEC 61800-3:2004 and EN 61800-3:2004
The 2004 revision of the standard uses different terminology to align the
requirements of the standard better with the EC EMC Directive.
Power drive systems are categorized C1 to C4:
Note that category 4 is more restrictive than E2R, since the rated current
of the PDS must exceed 400 A or the supply voltage exceed 1000 V, for
the complete PDS.
N
Where the drive is incorporated into a system with rated input current
exceeding 100 A, the higher emission limits of EN 61800-3:2004 for the
second environment are applicable, and no filter is then required.
N
Operation without an external filter is a practical cost-effective possibility
in an industrial installation where existing levels of electrical noise are
likely to be high, and any electronic equipment in operation has been
designed for such an environment. This is in accordance with EN 61800-
3:2004 in the second environment, with restricted distribution. There is
some risk of disturbance to other equipment, and in this case the user
and supplier of the drive system must jointly take responsibility for
correcting any problem which occurs.
4.12 Serial communications connections
The drive has a serial communications port (serial port) as standard
supporting 2 wire EIA485 communications. Please see Table 4-16 for
the connection details for the RJ45 connector.

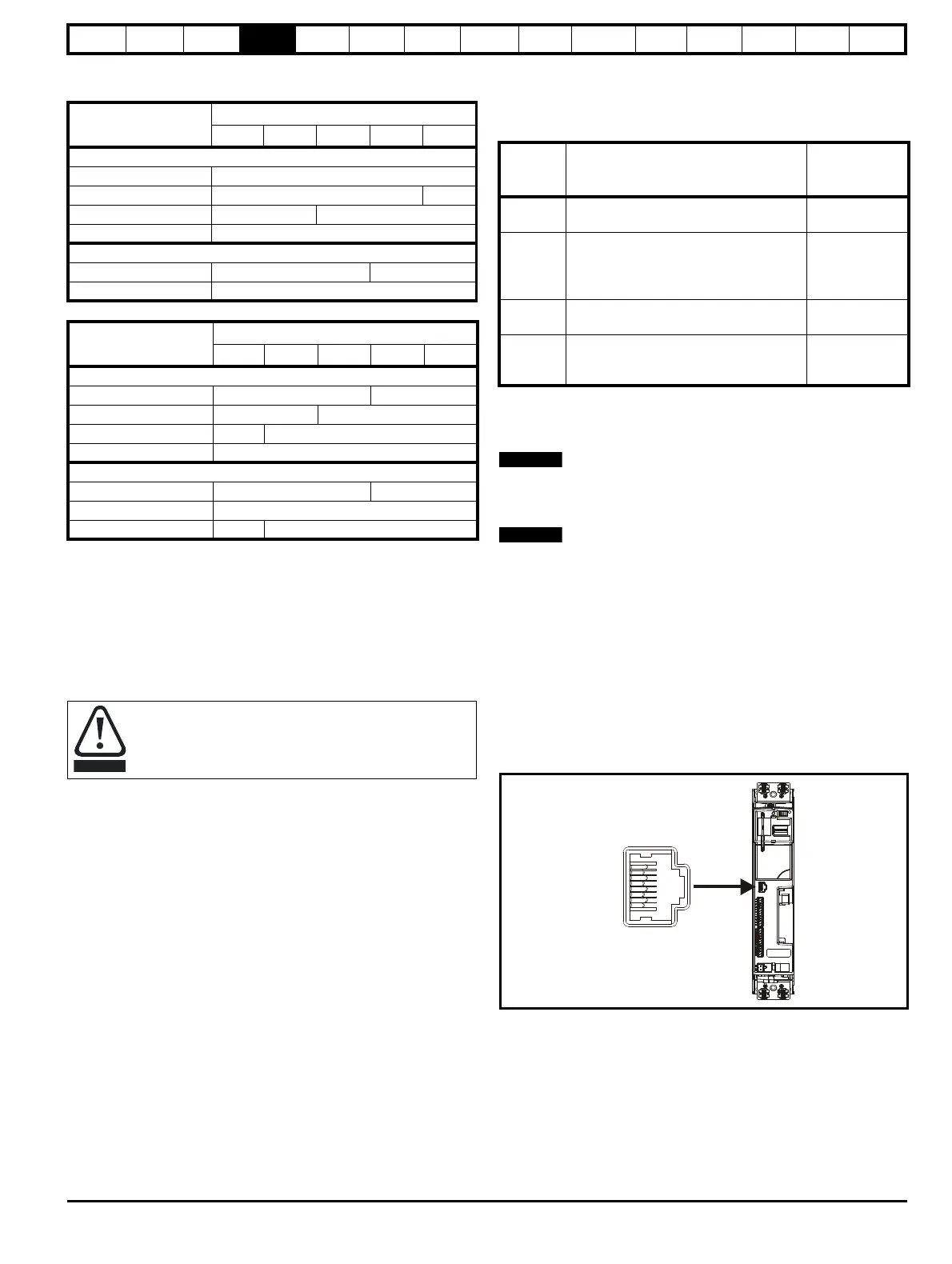

Figure 4-9 Location of the RJ45 serial comms connector
Motor cable length
(m)
Switching frequency (kHz)
346812
Using internal filter:
0 to 7 E2U
7 to 9 E2U E2R
9 to 11 E2U E2R
>11 E2R
Using external filter:
0 to 20 R I
20 to 100 I
Motor cable length
(m)
Switching frequency (kHz)
346812
Using internal filter:
0 to 6 E2U E2R
6 to 12 E2U E2R
12 to 14 E2U E2R
>14 E2R
Using external filter:
0 to 20 R I
20 to 70 I
70 to 100 I Do not use
This is a product of the restricted distribution class according
to IEC 61800-3. In a residential environment this product may
cause radio interference in which case the user may be
required to take adequate measures.
Category Definition
Corresponding
code used
above
C1
Intended for use in the first or second
environments
R
C2
Not a plug-in or movable device, and
intended for use in the first environment
only when installed by a professional, or
in the second environment
I
C3
Intended for use in the second
environment, not the first environment
E2U
C4
Rated at over 1000 V or over 400 A,
intended for use in complex systems in
the second environment
E2R
