28 Mentor MP User Guide
www.controltechniques.com Issue: 3
3.9 Electrical terminals
3.9.1 Location of the power and ground terminals

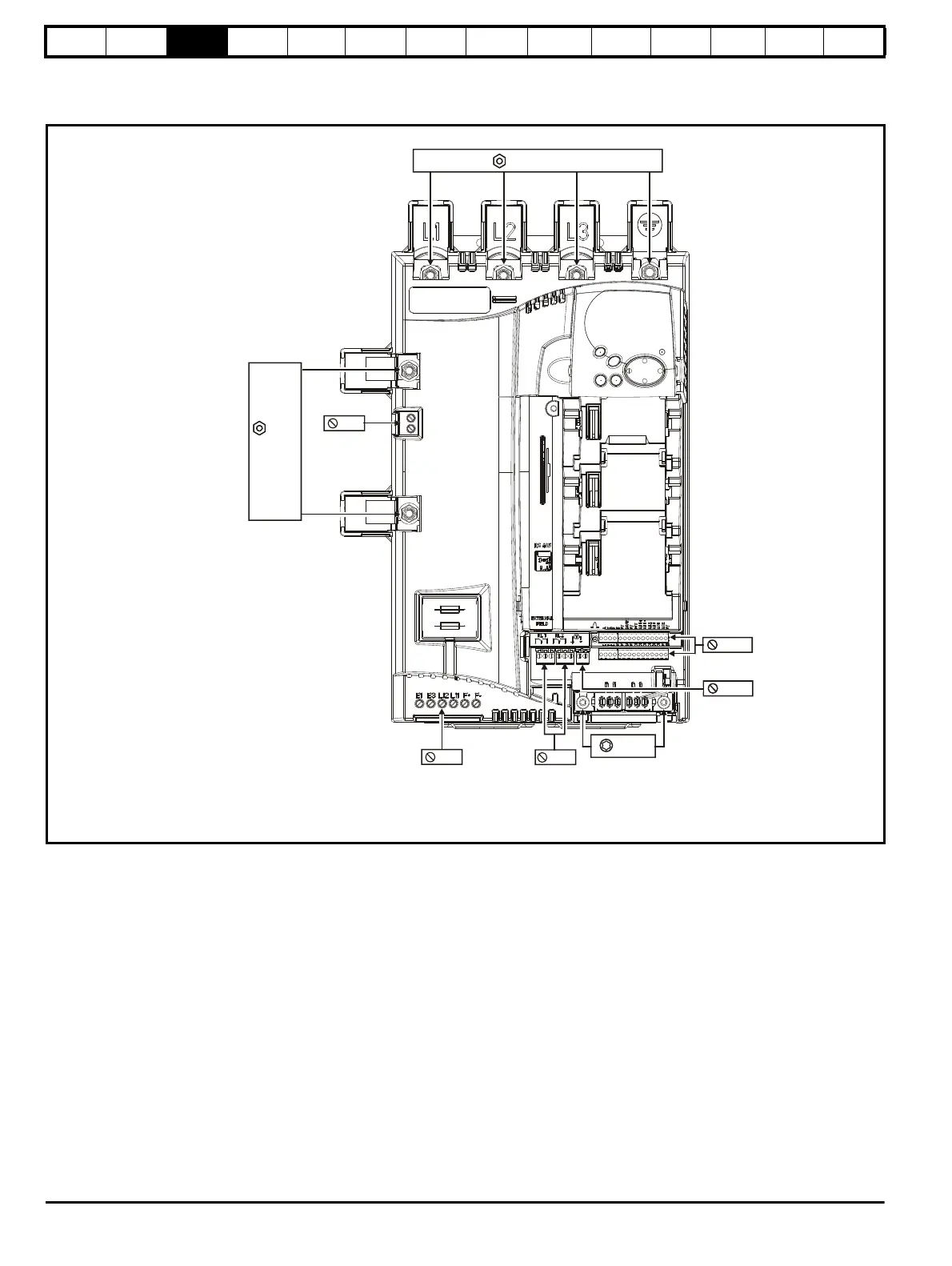

Figure 3-19 Location of the power and ground terminals on size 1 drives
M8 nut / 13 mm AF
AC input
M8 nut
13mm AF
DC output
T25 Torx
Ground
connections
Tac h o
connections
3.5 mm
Relay
connections
3.5mm
5mm
Auxiliary
connections
Control and
encoder
connections
2.5 mm
5mm
Machine
feedback
terminals
MA1
MA2
