Emerson Rosemount Analytical X-STREAM Enhanced Series User Manual

X-STREAM XE
Emerson Process Management GmbH & Co. OHGA-18
Short Form Manual
HASXEE-SFM-HS
05/2017

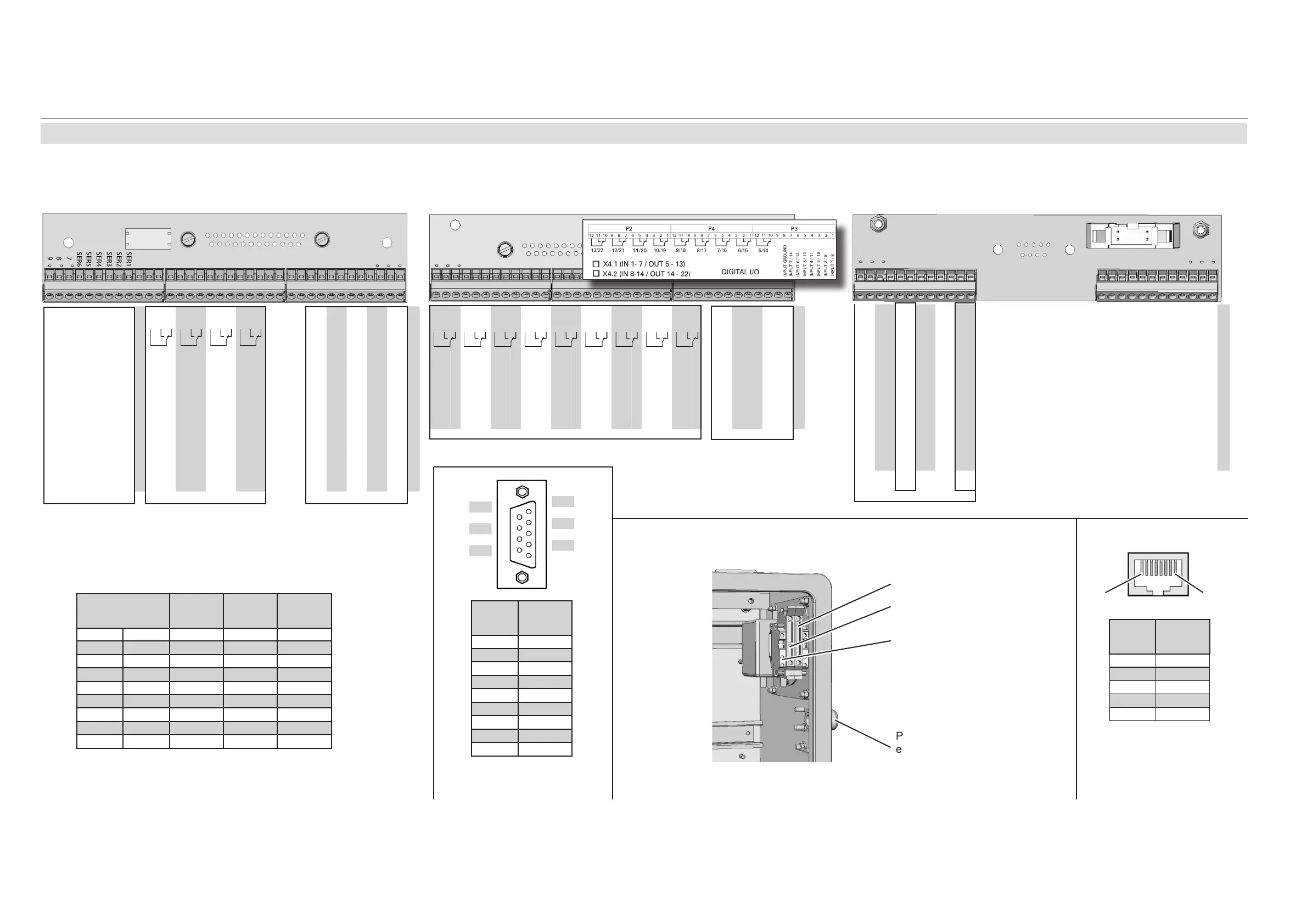

A.2 Assignment of Terminals and Sockets
A.2.2 Field Housings
XSTA: Standard strip with standard and optional signals
XSTD: Optional strips with
7 Dig Inputs and 9 Dig Outputs each
Power terminals
L
PE
N
Power cord
entry
L= Line
N= Neutral
PE= Protective Earth
Service Port Connector -
Serial RS 232 interface
Pin
9
8
7
6
Pin
5
4
3
2
1
Pin no. RS 232
1 Common
2 RXD
3 TXD
4 not used
5 Common
6 not used
7 not used
8 not used
9 not used
Ethernet connector
for Modbus
Pin 1 Pin 8
Pin no. Signal
1 TX+
2 TX-
3 RX+
6 RX-
other not used
*)
See table below
**)
Conguration of relay output termi-
nals as per standard factory setting
(NAMUR status signals)
XSTI: Analog inputs
Analog Inputs
Pin Signal P3.1 not used P3.2 not used P3.3 not used P3.4 not used P3.5 not used P3.6 not used P3.7 not used P3.8 not used P3.9 not used P3.10 not used P3.11 not used P3.12 not used P2.1 BR 1 t a wire bridge here to apply analog P2.2 BR 1 signal in current mode to input 1 P2.3 Input 1 high (+) P2.4 Input 1 high (+) P2.5 Input 1 low (-) P2.6 Input 1 low (-) P2.7 BR 2 t a wire bridge here to apply analog P2.8 BR 2 signal in current mode to input 2 P2.9 Input 2 high (+) P2.10 Input 2 high (+) P2.11 Input 2 low (-) P2.12 Input 2 low (-)
{
}
{
}
IN1
Mode
IN2
Mode
Note!
Line and neutral terminals with
built-in fuse holders
Pin Signal P2.1 Channel 1, (+) 4 (0) - 20 mA P2.2 Channel 1, GND P2.3 Channel 2, (+) 4 (0) - 20 mA P2.4 Channel 2, GND P2.5 Channel 3, (+) 4 (0) - 20 mA P2.6 Channel 3, GND P2.7 Channel 4, (+) 4 (0) - 20 mA P2.8 Channel 4, GND P2.9 Channel 5, (+) 4 (0) - 20 mA P2.10 Channel 5, GND P2.11 not used P2.12 not used P3.1 not used P3.2 not used P3.3 Output 1 (Failure), NC P3.4 Output 1 (Failure), NO P3.5 Output 1 (Failure), COM P3.6 Output 2 (Maintenance Request), NC P3.7 Output 2 (Maintenance Request), NO P3.8 Output 2 (Maintenance Request), COM P3.9 Output 3 (Out of Spec), NC P3.10 Output 3 (Out of Spec), NO P3.11 Output 3 (Out of Spec), COM P3.12 Output 4 (Function check), NC P4.1 Output 4 (Function check), NO P4.2 Output 4 (Function check), COM P4.3 not used P4.4 P4.5 P4.6 P4.7 P4.8 P4.9 P4.10 P4.11 P4.12
Relay Outputs
**)
Analog Outputs
Serial Interface
*)
Note!
The conguration illustrated here is that of
the rst adapter (X4.1).
Inputs 8-14 and outputs 14-22, if availa-
ble, are on the second adapter (X4.2).
Pin Signal P3.1 Input 1 P3.2 Input 2 P3.3 Input 3 P3.4 Input 4 P3.5 Input 5 P3.6 Input 6 P3.7 Input 7 P3.8 GND for inputs 1-7 P3.9 unused P3.10 Output 5, NC P3.11 Output 5, NO P3.12 Output 5, COM P4.1 Output 6, NC P4.2 Output 6, NO P4.3 Output 6, COM P4.4 Output 7, NC P4.5 Output 7, NO P4.6 Output 7, COM P4.7 Output 8, NC P4.8 Output 8, NO P4.9 Output 8, COM P4.10 Output 9, NC P4.11 Output 9, NO P4.12 Output 9, COM P2.1 Output 10, NC P2.2 Output 10, NO P2.3 Output 10, COM P2.4 Output 11, NC P2.5 Output 11, NO P2.6 Output 11, COM P2.7 Output 12, NC P2.8 Output 12, NO P2.9 Output 12, COM P2.10 Output 13, NC P2.11 Output 13, NO P2.12 Output 13, COM
Digital inputs
Digital outputs
Signal Terminals Strips
Terminal
MOD 485/
2 wire
MOD 485/
4 wire
RS 232
P4.4 SER1 Common Common Common
P4.5 SER2
not used not used
RXD
P4.6 SER3
not used not used
TXD
P4.7 SER4
not used
RXD1(+)
not used
P4.8 SER5 D1(+) TXD1(+) Common
P4.9 SER6
not used not used not used
P4.10 7
not used not used not used
P4.11 8
not used
RXD0(-)
not used
P4.12 9 D0(-) TXD0(-)
not used
Assignment of serial interface terminals
