3.4 Front Panel Elements
3.4 Front Panel Elements
Note!
During an active webserver session, the
heart symbol is replaced by a network sym-
bol:
All X-STREAM XE gas analyzers feature an
easy-to-use graphical user interface, which
displays measurement values, status and
error messages, and menus for the input of
parameters.
For ease of use, the operator can select one
of the following languages for the display:

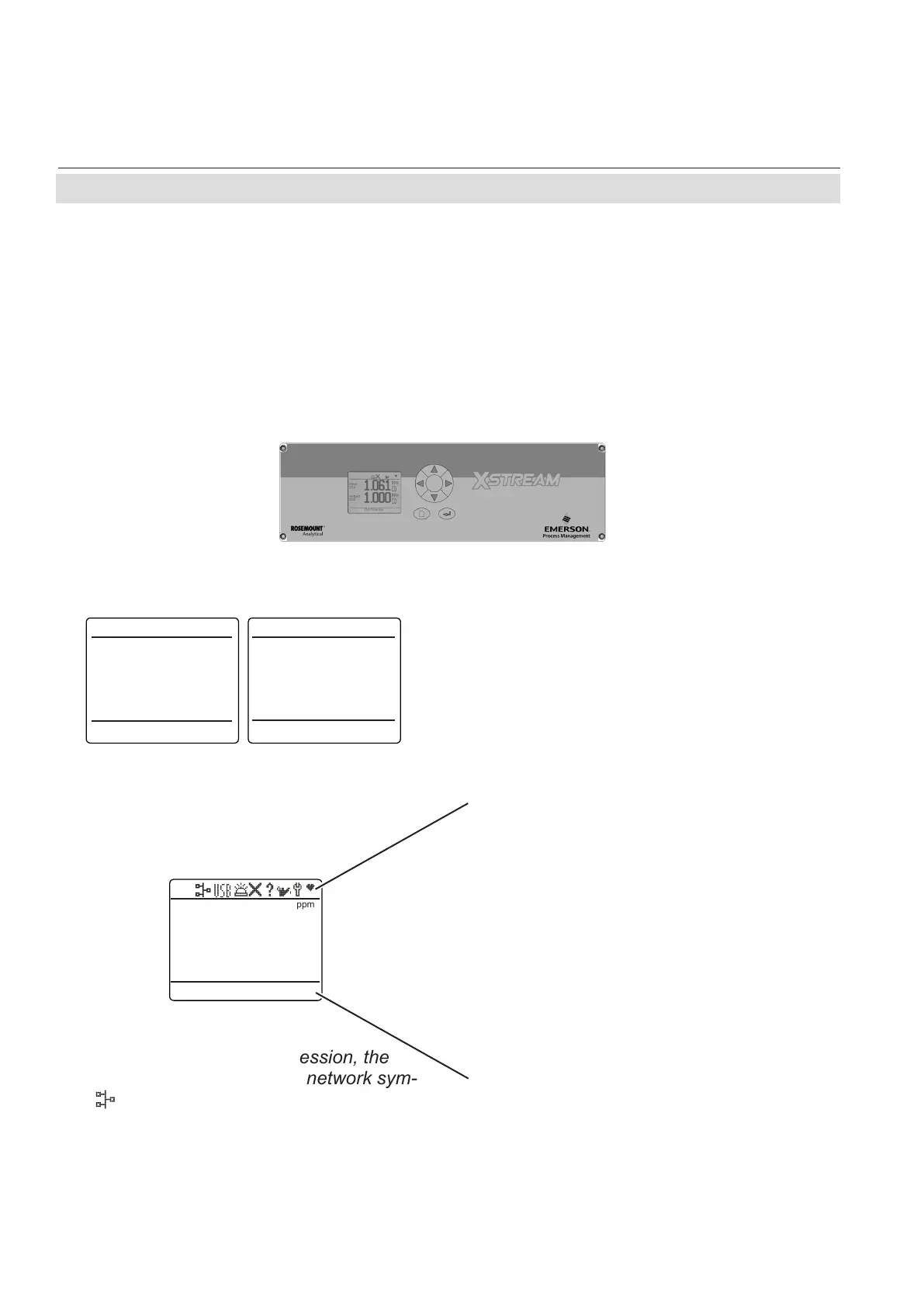

Fig. 3-2: X-STREAM XE Front Panel
English, German, French, Spanish, Italian,
Portuguese and Polish.
The units are operated by six keys on the
front panel.
10.000
ppm
Ch1 CO
5.000
ppm
Ch2 CO
7.000
ppm
Ch3 CO
20.000
ppm
Ch4 CO
1/10/2012 13:18
10.000
ppm
Ch1 CO
5.000
ppm
Ch2 CO
7.000
ppm
Ch3 CO
20.000
ppm
Ch4 CO
1/10/2012 13:18
3.4.1 Display
The measurement display can be congured
to various layouts. The gure to the left ex-
amplarly shows a 4 channel layout and a 2
channel layout with additional Information and
differing letter sizes.
3.4.2 Status Line and Text Message Line
10.0000
ppm
Input
Ch1
CO
10.0000
ppm
Output
Ch2
CO
Flow 1 0.00 l/min
1/10/2012 13:18
Status information is provided by different
icons in the display´s rst line:
USB = USB device is attached
Bell = 'Alarm'
Cross = 'Failure'
Question mark = 'Off spec'
Oil can = 'Maintenance request'
Tool = 'Function check'
Heart = the analyzer´s 'heart beat',
indicating the instrument is operating.
Clear text messages appear in the bottom
line, replaced by current analyzer date &
time if no messages are to be displayed.
