SETUP enables several additional congura-
tions, e.g.
• 2 pages measurement display
• different font sizes

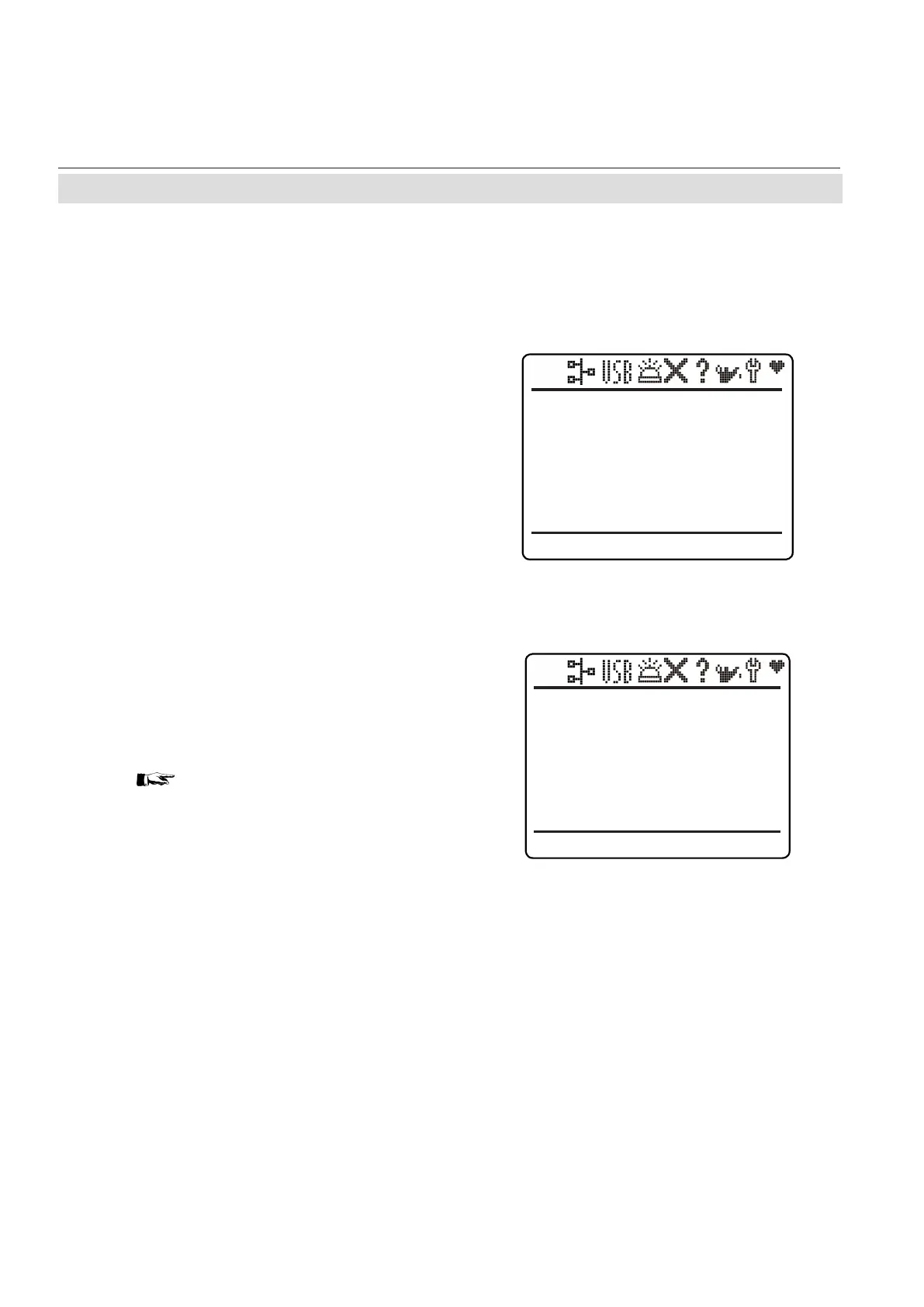

The very rst display line shows
• a ashing heart, showing the instrument is
operating
• one or more status pictograms, if (NAMUR)
status are active. Some of these are ex-
plained by a text message in the last line
• a channel indicator, if the current menu
page is related to a specic channel only.
The display´s bottom line shows plain text
status information (errors, maintenance
requests, function checks or off-spec perfor-
mance).
Active messages are stored in an internal buf-
fer. If there is more than one message in the
buffer, the display will cycle through.
Most messages also activate a NAMUR relay
(if a relay has been assigned to that NAMUR
function; X-STREAM Enhanced Series
instruction manual ).
Note!
There are also functions, that do activate a
relay, but are not shown on the display. In
such cases, check the STATUS menu for
more information.
3.6 Powering Up
MEASUREMENT DISPLAY
4 lines display
2 lines display with additional sec-
ondary parameter line
1.000
ppm
Ch1 CO
500
ppm
Ch2 CO
2.400
ppm
Ch3 CO
1.900
ppm
Ch4 CO
10.0000
ppm
Input
Ch1
CO
10.0000
ppm
Output
Ch2
CO
Flow 1 0.00 l/min
