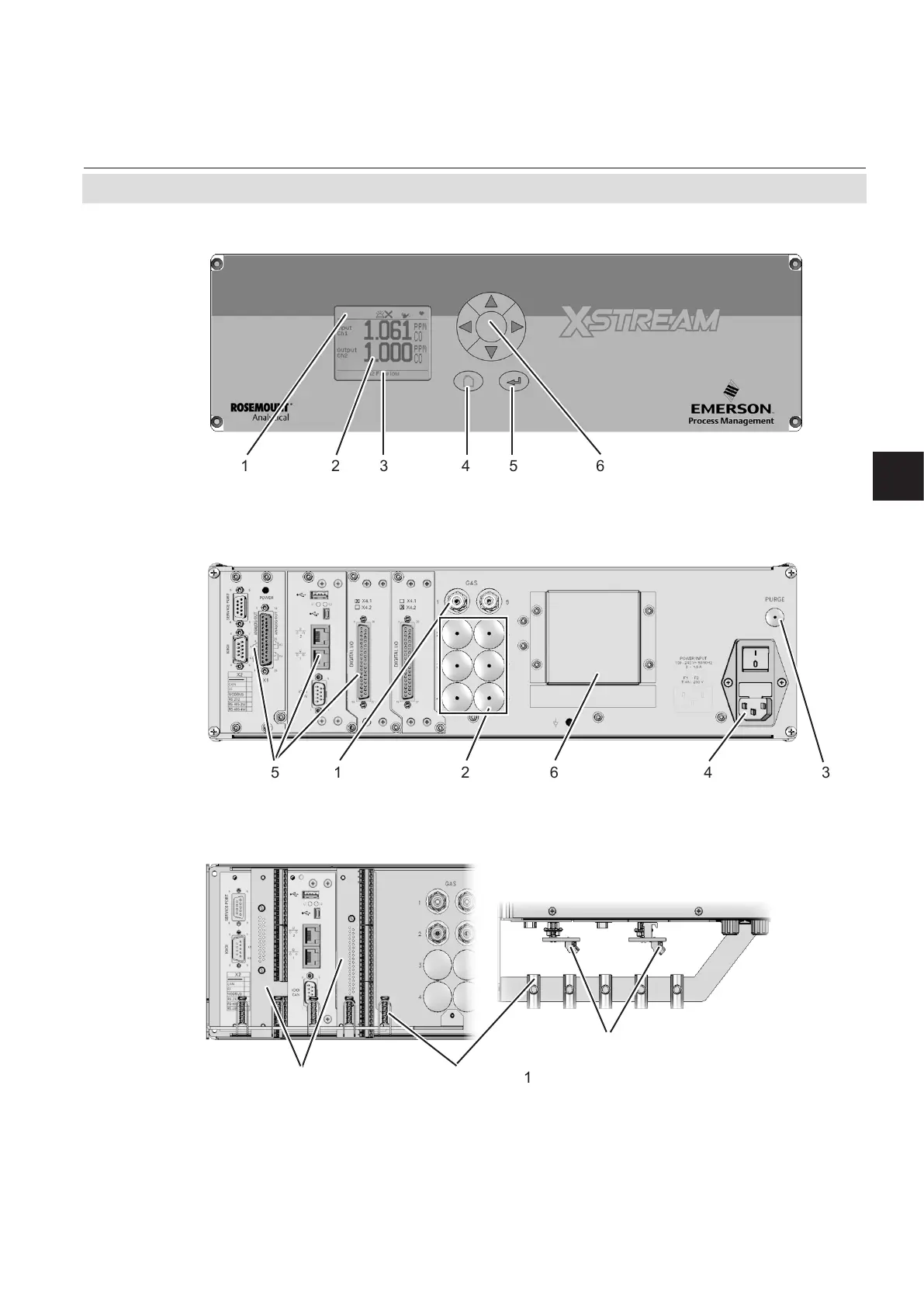

Fig. 1-3: X-STREAM XEGP - Details
1.4 X-STREAM XEGP
1 Status line
2 Graphic display
3 Messages line
4 home key
5 enter key
6 4 keys for adjustment and menu selection
Optional
screw-type terminal
adapter
Front view
1 3 4 5 62
1 Screw-type terminal adapters
2 Strain-reliefs
1
2
1
Strain-reliefs, top view details
1 Gas connector ttings
2 Space for additional ttings
3 Optional purge gas inlet
4 Power inlet with lter, fuses & switch
5 Signal input/output connectors (some optional)
6 Cover for eO
2
or tO
2
sensor
Rear view
15 2 4 36
