Power and signal cables are connected using
internal screw-type terminals. This requires
opening the unit, which in turn requires releas-
ing the fasteners on the housing.
Gas connectors are accessible from the out-
side, on the underside of the instrument.
The number and conguration of the gas
inlets and outlets depends on the analytical
application, and is noted on a sticker on the
underside of the instrument next to the con-
nectors.
To simplify installation, we recommend label-
ling the gas lines in accordance with these
markings. This avoids confusion should the
analyzer need to be disconnected for main-
tenance.

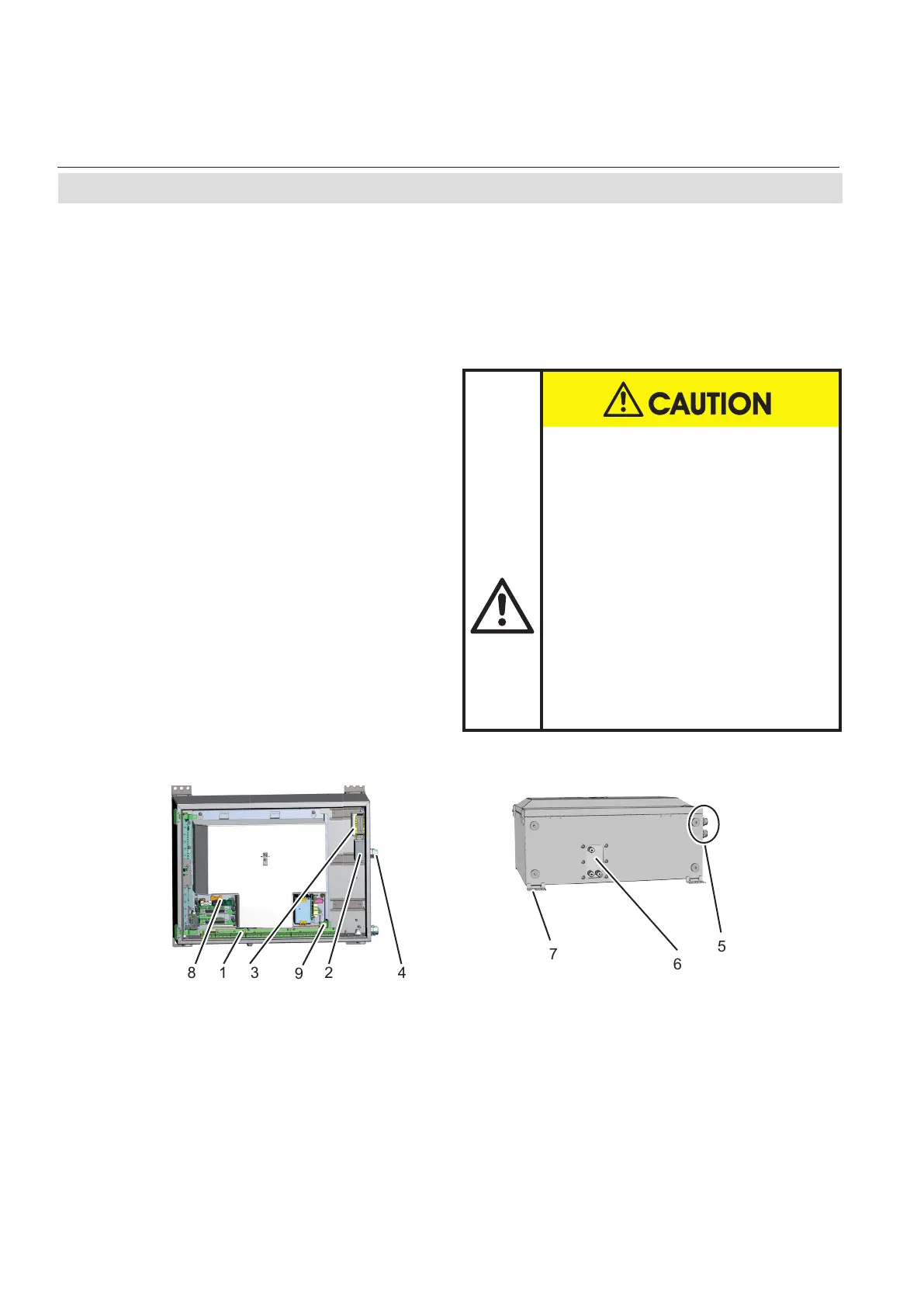

Fig. 2-11: X-STREAM XEXF Field Housings - Arrangement of Terminals, Cable Glands and Gas Connectors
6 Gas inlets and outlets
7 Plugs for openings to connect housings
8 Ethernet Service Port and USB connection (optional)
9 Ethernet network connection
1 Terminals for signal cables
2 Mains lter
3 Power connections with integrated fuses
4 Glands for power cable
5 Glands for signal cables
2.6.2 Installation - X-STREAM XEXF Field Housings
6
5
7
Gas inlets
Gas outlets
Note on XDF!
In case of the dual compartment version XDF,
the electrical connections are established in the
upper compartment, and the gas connections to
ttings at the lower compartment.
Besides this, the design and layout of terminals
and ttings are the same as with the single com-
partment version XEF.
GASKETS AT LOW
TEMPERATURES
Consider that enclosure gaskets
may be frozen if the instrument is
installed outdoors. Carefully open
the enclosure at temperatures
below -10 °C / 14 °F to not damage
the gaskets.
Damaged gaskets void the ingress
protection, possibly causing pro-
perty damage, personal injury or
death.
