Emerson Rosemount Analytical X-STREAM Enhanced Series User Manual

Emerson Process Management GmbH & Co. OHG 1-7
1
Techn. Description
X-STREAM XE
Short Form Manual
HASXEE-SFM-HS
05/2017
1.3 X-STREAM XEGK

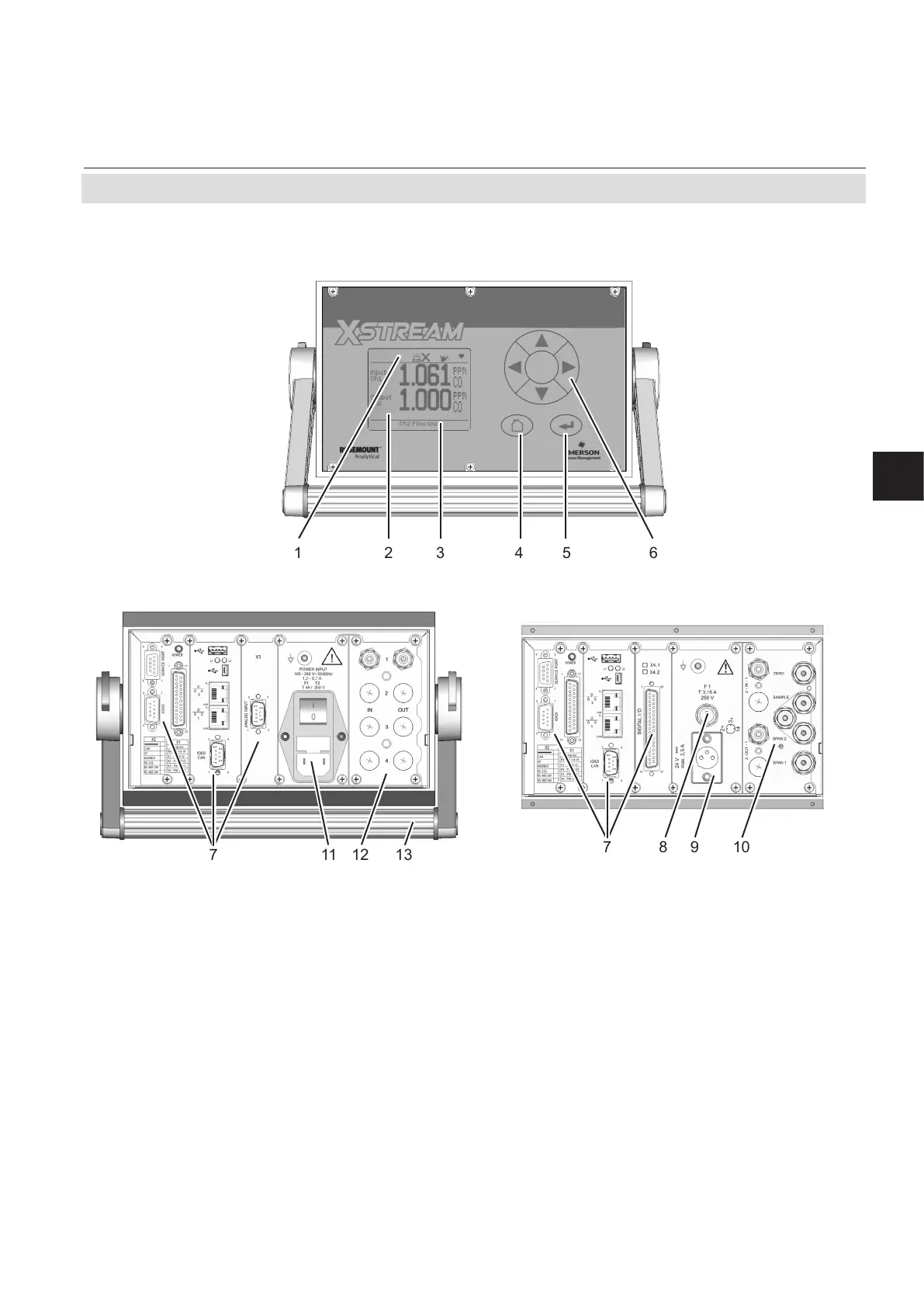

Fig. 1-2: X-STREAM XEGK
7 8 9 10
1 Status line
2 Graphic display
3 Messages line
4 home key
5 enter key
6 4 keys for adjustment and menu selection
7 Signal connectors (some optional)
1 3 4 5 62
11 12 137
Note!
Figures show optional components!
8 DC power input fuse
9 DC power input
10 Gas ttings and valve block
11 AC power input with switch and fuses
12 Standard gas in- and outlets
13 Carrying handle
