Installation
2.6.1 Installation - X-STREAM XEGK, X-STREAM XEGP
approx. values in mm [in]
Strain relief bracket, detail
(model with clamping adapters)

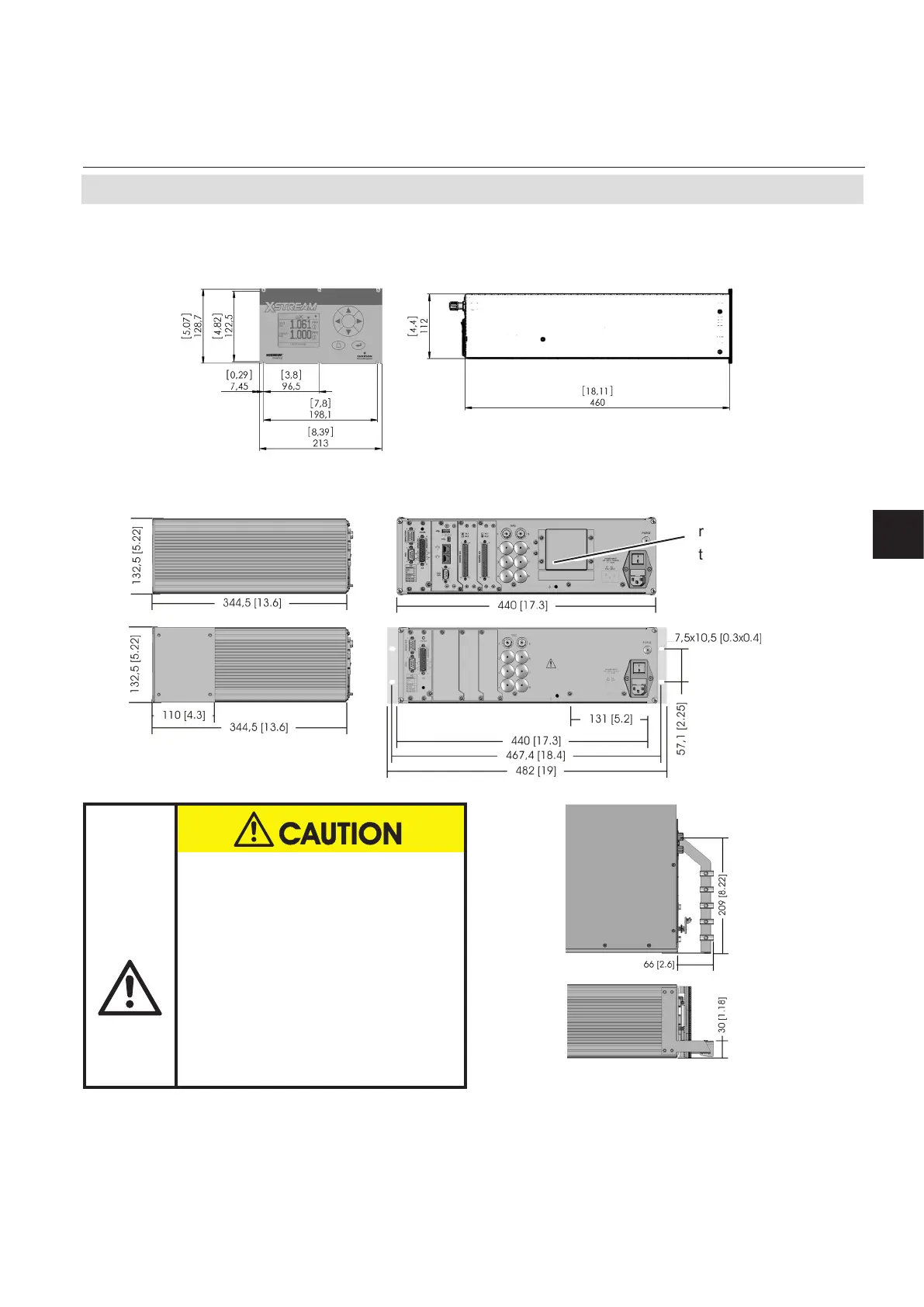

Fig. 2-6: X-STREAM XEGP - Dimensions
RACK INSTALLATION HAZARD
The brackets are not designed
to carry the weight of the
instrument!
Support the instrument, when
rack mounting!
Disregarding may cause per-
sonal injury and damaged
equipment.
XEGK
XEGP
To be added:Height of
rear panel cover for
tO2 cell: 10 mm [0.39]
eO2 cell: 36 mm [1.42]
