Epson EB-L1505U User Manual

a
• Auto adjustment is not available when using the following lenses.
- EB-L1505U/EB-L1500U: ELPLR04, ELPLL08, ELPLL07
- EB-L1405U/EB-L1300U/EB-L1200U/EB-L1100U: ELPLX01,
ELPLR04, ELPLM11, ELPLM07, ELPLL08, ELPLL07
• After auto adjustment, the movement range for lens shift is reduced
for some lenses.
s "Adjusting the Position of the Projected Image (Lens Shift)"
p.33
Automatically correct the brightness and tint for multiple
projectors
Automatically correct the brightness and tint for the projectors selected in
Projector Grouping based on the brightness and tint on the master
projector.
a
• Check the following before starting auto adjustment.
- The projector is connected to the network
- The Location Setup for the projector has already been set
• Auto adjustment is performed using the camera built into the front
of the projector. Do not block the camera or the projected images.
• The time necessary for auto adjustment varies according to the
location and number of projectors and can take up to approximately
seven minutes.
• Settings are auto adjusted for Brightness Settings and Black Level
(Color Adjustment only).
• After making automatic adjustments, Color Uniformity and Color
Matching are returned to their defaults.
a

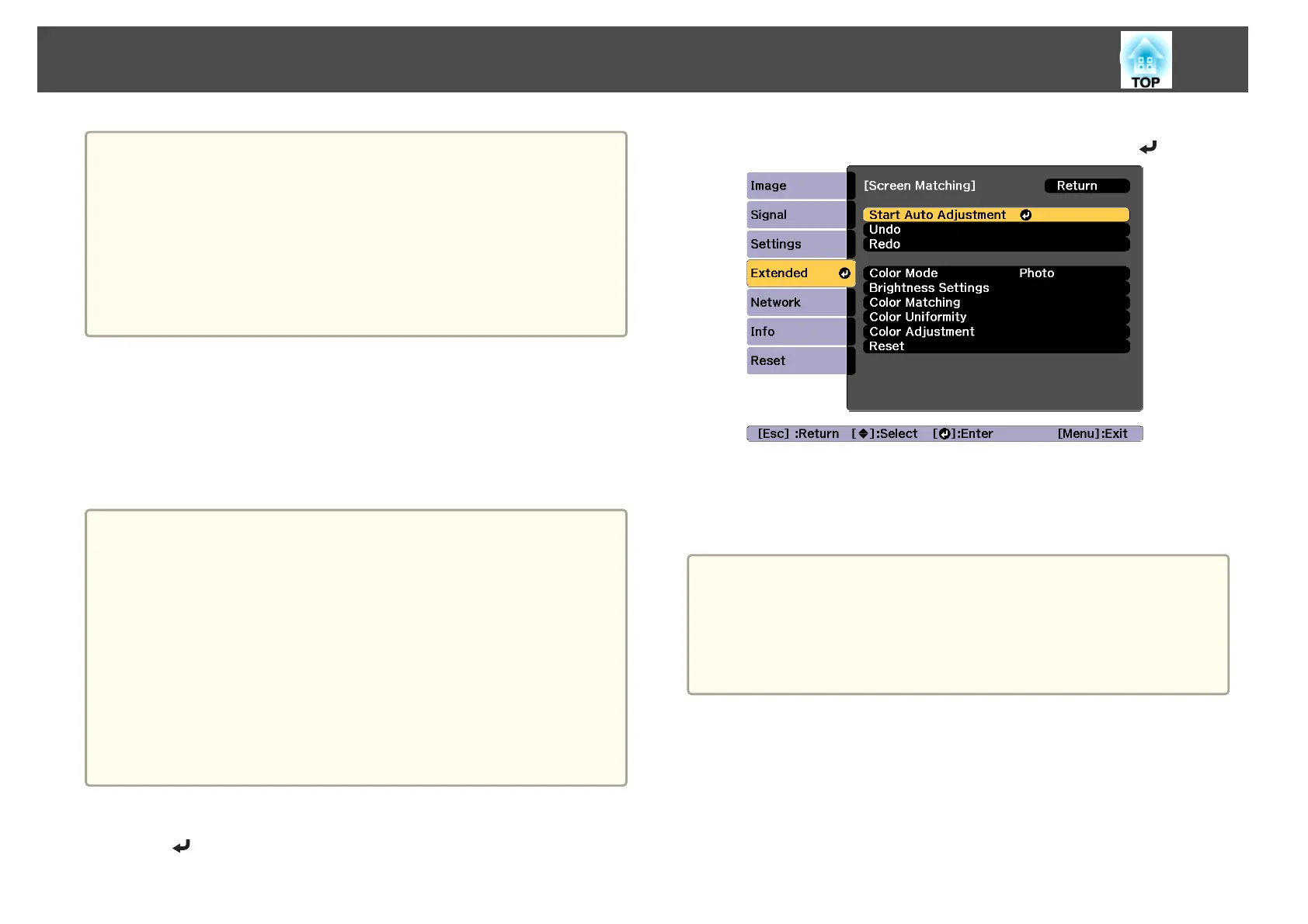

Select Screen Matching from Multi-Projection, and then press
the [
] button.
b
Select Start Auto Adjustment, and then press the [ ] button.
The adjustment pattern is displayed, and adjustment starts. If the
projected image is displayed before the adjusting, the procedure is
complete.
a
• See the following if an error occurs.
s "Automatic adjustments are not performed correctly" p.176
• To return to the status before auto adjustment, select Undo. When
you select Redo after selecting Undo, it returns the image to the
status after auto adjustment.
• To return Screen Matching to its default value, select Reset.
Color Matching
You can fine tune the color balance and brightness from black to white for
each color tone.
When the projectors are not connected to a network, or if you want to
adjust manually after the automatic adjustments, perform the following
steps on all projectors.
Multi-Projection Function
100

Epson EB-L1505U Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1.99 - 27.77 m
Projection technology	3LCD
Contrast ratio (typical)	2500000:1
Screen size compatibility	60 - 500 \
Projection distance (tele)	3.3 - 27.8 m
Projection distance (wide)	2 - 17.2 m
Projector native resolution	WUXGA (1920x1200)
Keystone correction, vertical	-45 - 45 °
Keystone correction, horizontal	-30 - 30 °
Built-in display	Yes
Display diagonal	1.03 \
Throw ratio	1.57 - 2.56:1
Focal length range	36 - 57.35 mm
Vertical lens shift range	-60 - 60 %
Horizontal lens shift range	-18 - 18 %
Lamp power	670 W
Light source type	Lamp
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
3D	No
Video color modes	Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
Audio (L/R) in	3
Audio (L/R) out	1
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	37 dB
Country of origin	China
Noise level (economic mode)	30 dB
Placement	Desktop
Product type	Large venue projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	908 W
Power consumption (economy mode)	597 W
Cables included	AC, VGA
Pallet width	800 mm
Pallet height	150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	6 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	492 mm
Width	586 mm
Height	211 mm
Weight	23800 g
Package depth	780 mm
Package width	750 mm
Package height	325 mm
Package weight	33900 g
