Epson EB-L1505U User Manual

D
Turns the video and audio on or off.
E
You can adjust the volume.
F
Automatically detects the input signal.
G
Turns the projector off.

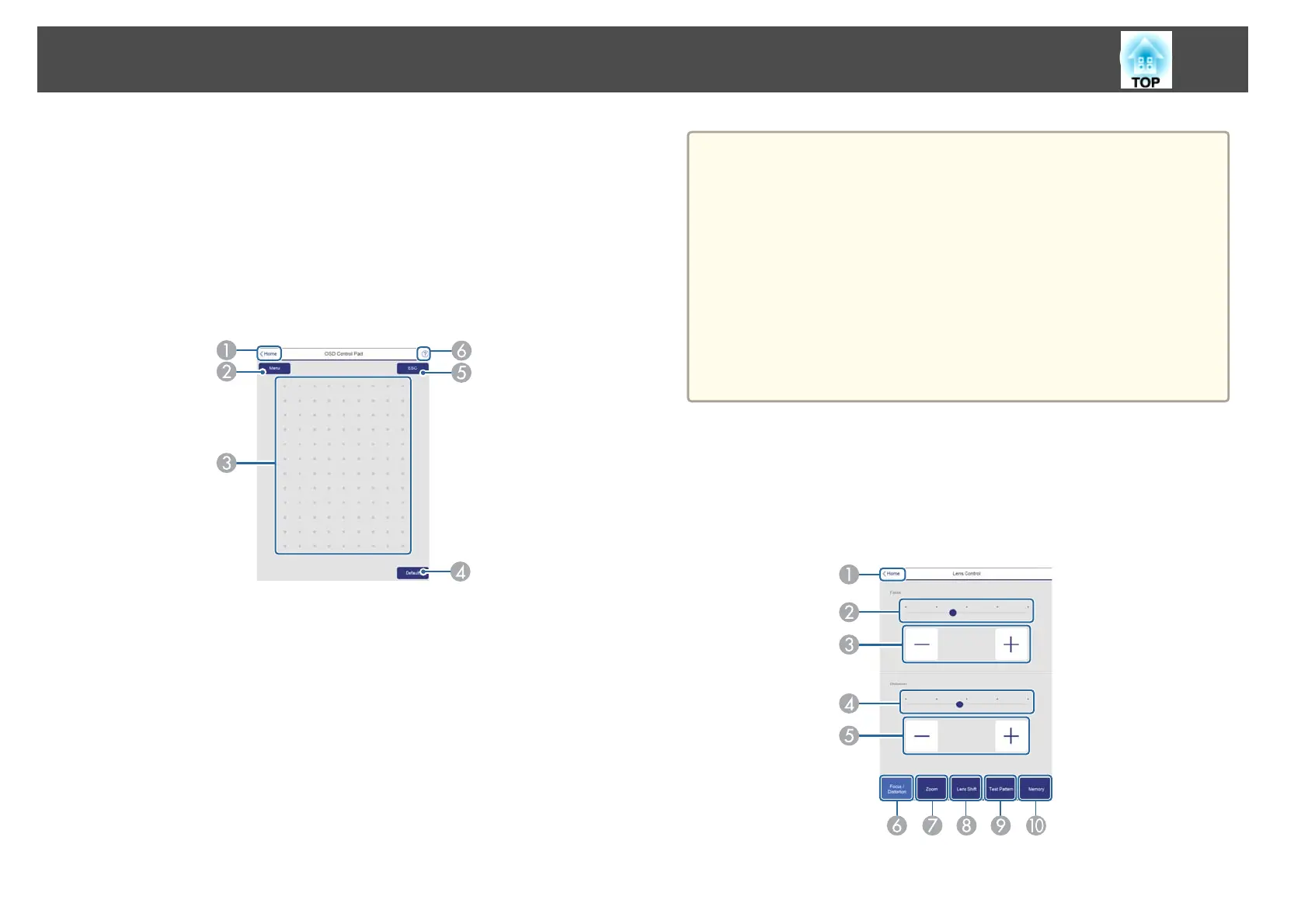

OSD Control Pad Screen
You can operate the Configuration menu of the projector.
A
Moves to the Home screen.
B
Displays and closes the Configuration menu.
C
You can operate the Configuration menu using your finger or mouse.
Flick to select an item, and tap to confirm the selection.
D
When "[Default] :Reset" is displayed on the Configuration menu guide, selecting
this icon returns the settings to their default values.
E
Returns to the previous menu level in the Configuration menu.
F
Displays information on using the OSD Control Pad.
a
Items in the Configuration menu that cannot be set in Epson Web
Control are listed below.
• Settings Menu - User Button
• Extended menu - Display - Message Position
• Extended Menu - User's Logo
• Extended menu - Operation - Advanced - BNC Sync Termination,
HDMI DDC Buffer, DVI-D DDC Buffer, Lens Type
• Extended menu - Operation - Lens Calibration
• Extended Menu - Language
The settings for items on each menu are the same as the projector's
Configuration menu.
s "Configuration Menu" p.123
Lens Control Screen
You can operate the lens of the projector.
Focus/Distortion Operation Screen
A
Moves to the Home screen.
Monitoring and Controlling
196

Epson EB-L1505U Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1.99 - 27.77 m
Projection technology	3LCD
Contrast ratio (typical)	2500000:1
Screen size compatibility	60 - 500 \
Projection distance (tele)	3.3 - 27.8 m
Projection distance (wide)	2 - 17.2 m
Projector native resolution	WUXGA (1920x1200)
Keystone correction, vertical	-45 - 45 °
Keystone correction, horizontal	-30 - 30 °
Built-in display	Yes
Display diagonal	1.03 \
Throw ratio	1.57 - 2.56:1
Focal length range	36 - 57.35 mm
Vertical lens shift range	-60 - 60 %
Horizontal lens shift range	-18 - 18 %
Lamp power	670 W
Light source type	Lamp
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
3D	No
Video color modes	Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
Audio (L/R) in	3
Audio (L/R) out	1
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	37 dB
Country of origin	China
Noise level (economic mode)	30 dB
Placement	Desktop
Product type	Large venue projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	908 W
Power consumption (economy mode)	597 W
Cables included	AC, VGA
Pallet width	800 mm
Pallet height	150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	6 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	492 mm
Width	586 mm
Height	211 mm
Weight	23800 g
Package depth	780 mm
Package width	750 mm
Package height	325 mm
Package weight	33900 g
