Epson EB-L1505U User Manual

Cable layouts

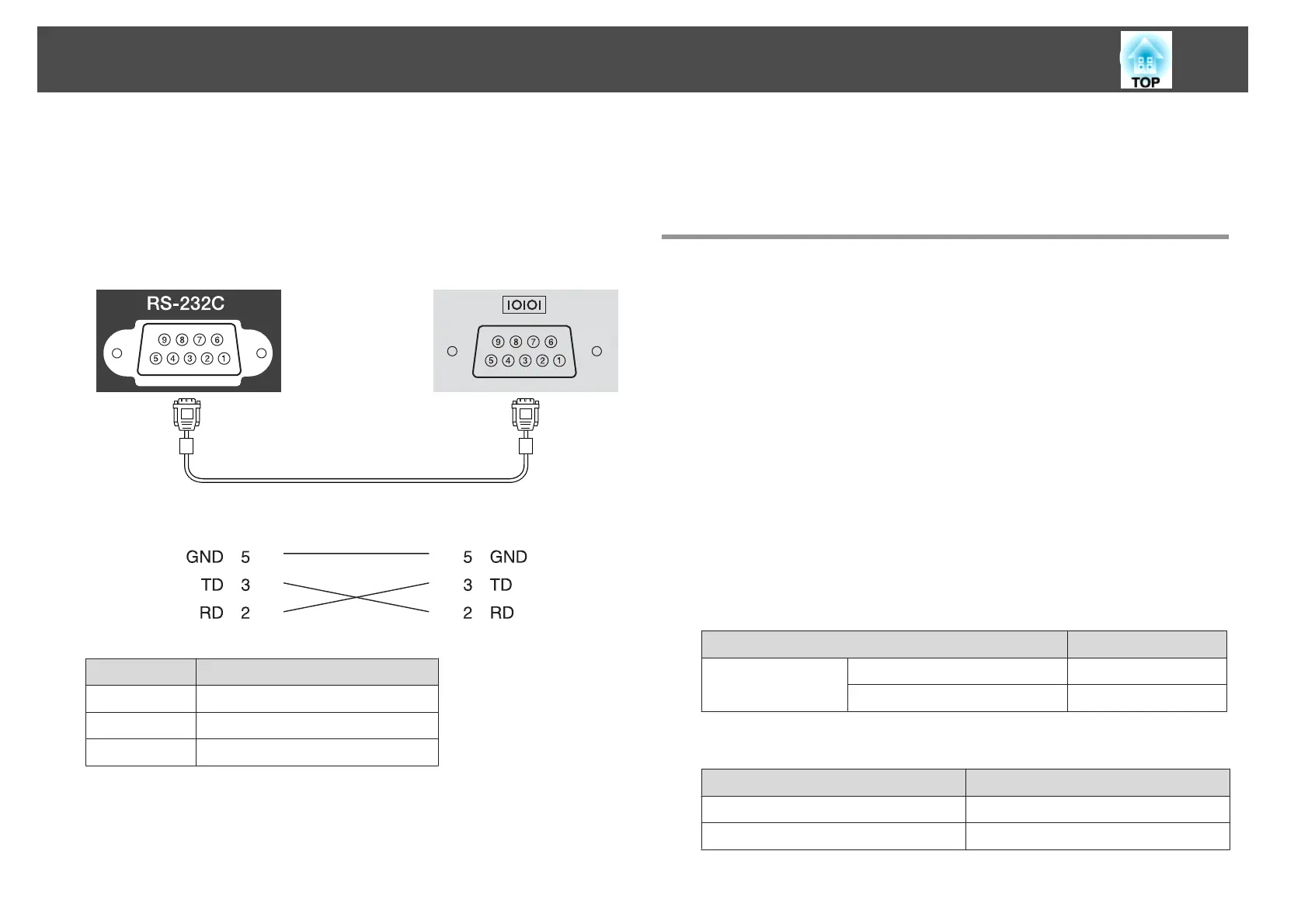

Serial connection
• Connector shape: D-Sub 9-pin (male)
• Projector input port name: RS-232C
<At the projector> <At the computer>
<At the projector> (PC serial cable) <At the computer>
Signal Name Function
GND
Signal wire ground
TD
Transmit data
RD
Receive data
Communications protocol
• Default baud rate setting: 9600 bps
• Data length: 8 bit
• Parity: None
• Stop-bit: 1 bit
• Flow control: None
About PJLink
PJLink Class1 was established by the JBMIA (Japan Business Machine and
Information System Industries Association) as a standard protocol for
controlling network-compatible projector's as part of their efforts to
standardize projector control protocols.
The projector complies with the PJLink Class1 standard established by the
JBMIA.
You need to make network settings before you can use PJLink. See the
following for more information on network settings.
s "Network Menu" p.137
It complies with all commands except for the following commands defined
by PJLink Class1, and agreement was confirmed by the PJLink standard
adaptability verification.
URL: http://pjlink.jbmia.or.jp/english/
• Non-compatible commands
Function PJLink Command
Mute settings Image muting set AVMT 11
Audio muting set AVMT 21
• Input names defined by PJLink and corresponding projector sources
Source PJLink Command
Computer INPT 11
BNC INPT 13
Monitoring and Controlling
201

Epson EB-L1505U Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1.99 - 27.77 m
Projection technology	3LCD
Contrast ratio (typical)	2500000:1
Screen size compatibility	60 - 500 \
Projection distance (tele)	3.3 - 27.8 m
Projection distance (wide)	2 - 17.2 m
Projector native resolution	WUXGA (1920x1200)
Keystone correction, vertical	-45 - 45 °
Keystone correction, horizontal	-30 - 30 °
Built-in display	Yes
Display diagonal	1.03 \
Throw ratio	1.57 - 2.56:1
Focal length range	36 - 57.35 mm
Vertical lens shift range	-60 - 60 %
Horizontal lens shift range	-18 - 18 %
Lamp power	670 W
Light source type	Lamp
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
3D	No
Video color modes	Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
Audio (L/R) in	3
Audio (L/R) out	1
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	37 dB
Country of origin	China
Noise level (economic mode)	30 dB
Placement	Desktop
Product type	Large venue projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	908 W
Power consumption (economy mode)	597 W
Cables included	AC, VGA
Pallet width	800 mm
Pallet height	150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	6 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	492 mm
Width	586 mm
Height	211 mm
Weight	23800 g
Package depth	780 mm
Package width	750 mm
Package height	325 mm
Package weight	33900 g
