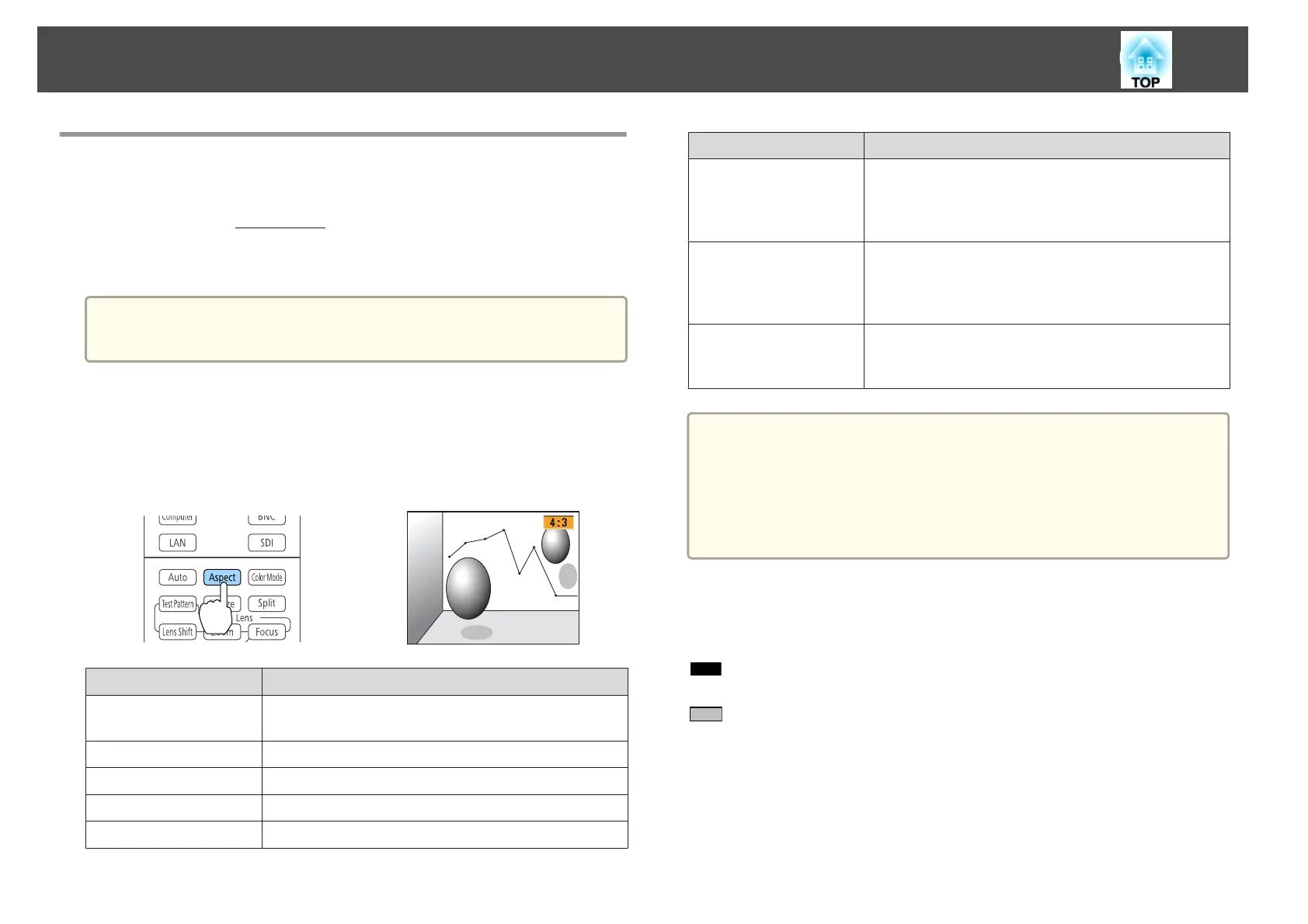

Epson EB-L1505U User Manual

Changing the Aspect Ratio of the Projected
You can change the Aspect Ratio g of the projected image to suit the type,
the ratio of height and width, and the resolution of the input signals.
Available aspect modes vary depending on the Screen Type currently set.
a
Set the Screen Type before changing the aspect ratio.
s "Screen Settings" p.30
Changing methods
Each time you press the [Aspect] button on the remote control, the aspect
mode name is displayed on the screen and the aspect ratio changes.
Remote control
Aspect Mode Explanation
Auto
Projects in an appropriate aspect ratio based on
information from the signal being input.
Normal
Projects while retaining the aspect ratio of the input image.
4:3
Projects at an aspect ratio of 4:3.
16:9
Projects at an aspect ratio of 16:9.
Full
Projects at the full size of the projected screen.
Aspect Mode Explanation
H-Zoom
Projects by enlarging the input image to the full width of
the projected screen while retaining the aspect ratio. Areas
that exceed the edges of the projected screen are not
projected.
V-Zoom
Projects by enlarging the input image to the full height of
the projected screen while retaining the aspect ratio. Areas
that exceed the edges of the projected screen are not
projected.
Native
Projects to the center of the projected screen at the
resolution of the input image. Areas that exceed the edges
of the projected screen are not projected.
a
• You can also set the aspect ratio from the Configuration menu.
s Signal - Aspect p.129
• If parts of the computer image are missing, set the Resolution
setting to Wide or Normal from the Configuration menu, according
to the resolution of the computer.
s Signal - Resolution p.129
The aspect mode changes as shown in the tables below.
The following colors in screen images in the tables indicate areas that are
not displayed.
: The area where the image is not displayed depending on the screen
type setting.
: The area where the image is not displayed depending on the aspect
mode setting.
Screen type setting: 16:10
Adjusting Projected Images
78

Epson EB-L1505U Specifications

General

Number of colors	1.073 billion colors
Native aspect ratio	16:10
Projection distance	1.99 - 27.77 m
Projection technology	3LCD
Contrast ratio (typical)	2500000:1
Screen size compatibility	60 - 500 \
Projection distance (tele)	3.3 - 27.8 m
Projection distance (wide)	2 - 17.2 m
Projector native resolution	WUXGA (1920x1200)
Keystone correction, vertical	-45 - 45 °
Keystone correction, horizontal	-30 - 30 °
Built-in display	Yes
Display diagonal	1.03 \
Throw ratio	1.57 - 2.56:1
Focal length range	36 - 57.35 mm
Vertical lens shift range	-60 - 60 %
Horizontal lens shift range	-18 - 18 %
Lamp power	670 W
Light source type	Lamp
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
3D	No
Video color modes	Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
Audio (L/R) in	3
Audio (L/R) out	1
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	37 dB
Country of origin	China
Noise level (economic mode)	30 dB
Placement	Desktop
Product type	Large venue projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	908 W
Power consumption (economy mode)	597 W
Cables included	AC, VGA
Pallet width	800 mm
Pallet height	150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	6 pc(s)
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	492 mm
Width	586 mm
Height	211 mm
Weight	23800 g
Package depth	780 mm
Package width	750 mm
Package height	325 mm
Package weight	33900 g
