Epson LS3-401 series User Manual

Maintenance 5. Arm #1
LS Rev.10 95

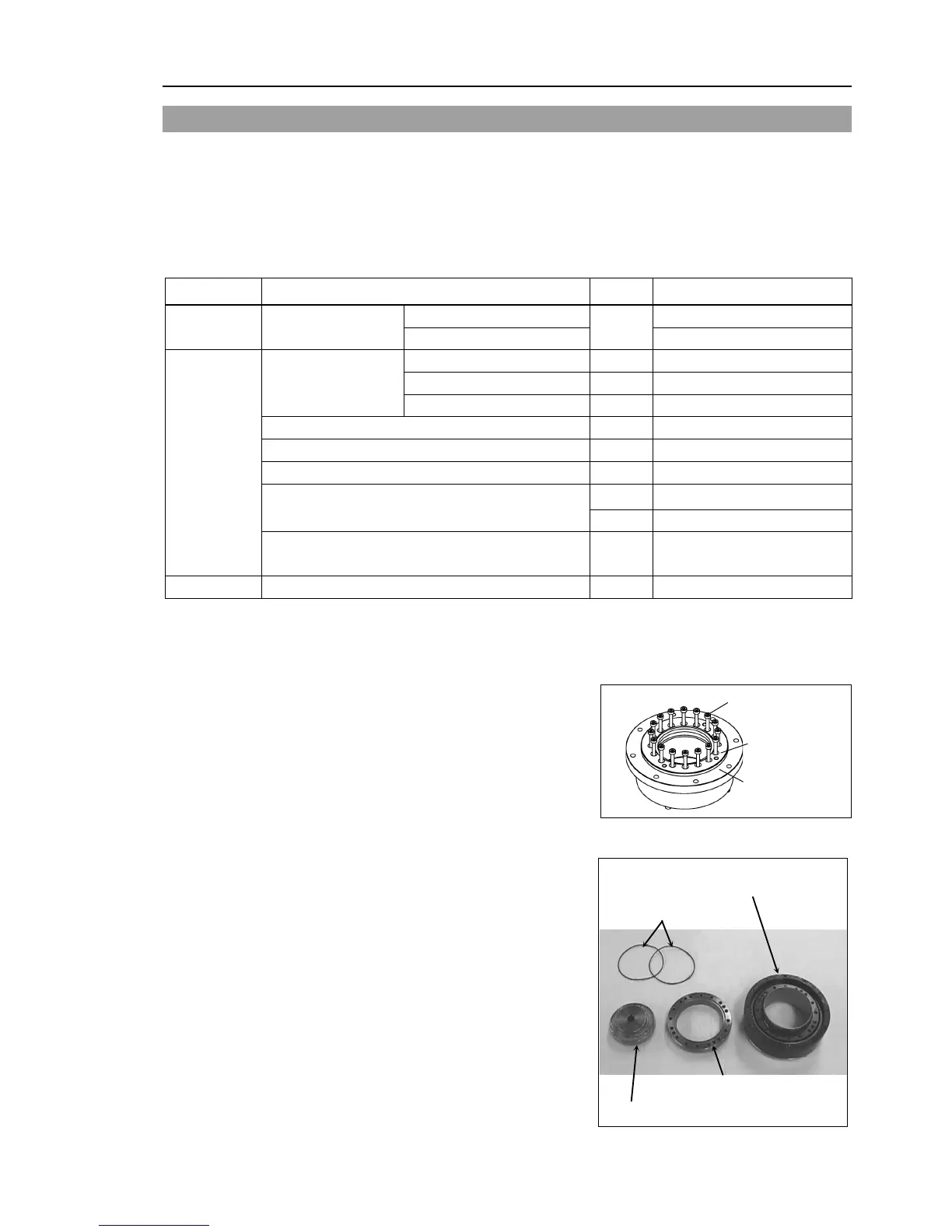

5.2 Replacing Joint #1 Reduction Gear Unit
A reduction gear unit consists of the following three parts. When replacing the reduction
gear unit, be sure to always replace the waveform generator, flexspline, and circular spline
all together as one set.
Waveform generator, Flexspline, Circular spline
For details of the reduction gear unit, refer to Maintenance: 14. Maintenance Parts List.
Name
Quantity
Note
Maintenance
Parts
Reduction Gear Unit
SHF20-50
1
LS3-401*: R13B010039
SHF25-80
LS6-602*: R13B010041
Tools
Hexagonal wrench
width across flats: 2 mm
1
For M4 set screw
width across flats: 2.5 mm
1
For M3 screw
width across flats: 3 mm
1
For M4 screw
Torque wrench
1
Nippers
1
Spatula
1
For apply grease
Wiping cloth
1
For wiping grease (Flange)
1
For wiping grease (Bolt)
Screw (M4) 2
About 20 mm in length
For flexspline removal
Grease
Grease (SK-1A)
-
-
Joint #1
R
eduction
G
ear Unit
Removal
(1)
Remove the Joint #1 motor unit.
Follow
the removal steps in Maintenance: 5.1 Replacing Joint #1 Motor.
(2)
Remove the
reduction gear unit from the
Joint #1 flange.
Flange
Reduction
Gear Unit
LS3: 16-M3×20
LS6: 16-M4×25
Joint #1
R
eduction
G
ear Unit
Installation
(1)
A
new reduction gear unit contains the
parts shown
in the picture on the right
when it
is unpacked.
The gear grooves of the flexspline,
circular spline
, and the bearings of the
waveform generator
have been greased.
Wipe off excess grease
from the
mounting
surface.
Flexspline and
Cross roller bearing unit
Circular spline
Waveform generator
O-ring
