Maintenance 7. Arm #3

120 LS Rev.10

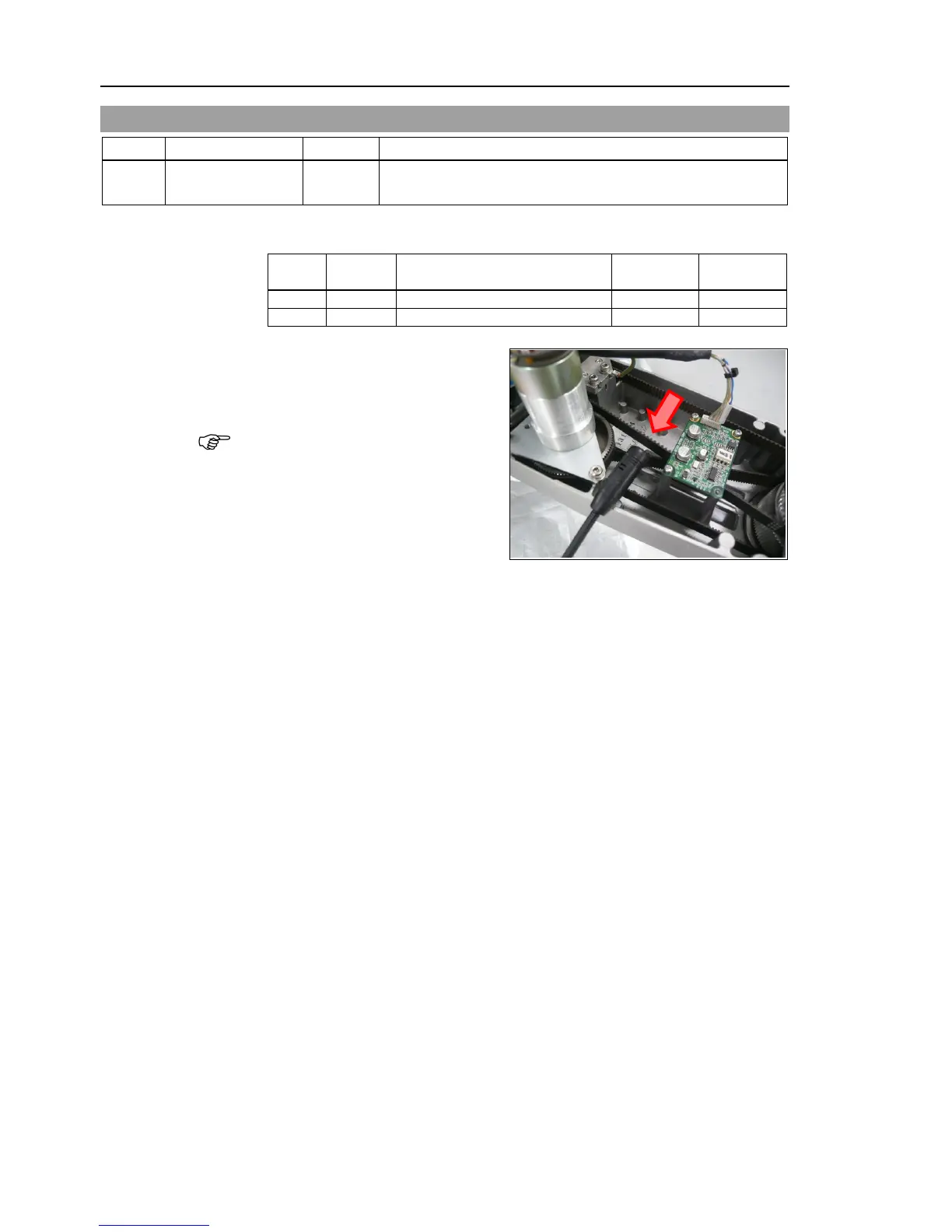

7.4 Checking the Timing Belt Tension (Z Belt)

Name

Quantity

Note

Tool

Sonic tension meter 1

r details of usage and measurement methods of the tension

meter, refer to the instruction manual of the tension meter.

Joint

Belt tension

check

(1)

Enter appropriate setting values to the sonic tension meter.

Model Belt

Unit mass M

[g/ (1 mm width ×1 m length)]

Width W

[mm]

Span S

[mm]

LS3

Z belt

1.9

127

LS6

Z belt

1.9

212

(2)

Strum the belt

and measure tension.

Measurement failure may occur if the

microphone touches the belt during

measurement.



NOTE
