Maintenance 3. Covers
74 LS Rev.10
3. Covers
All procedures for removing and installing covers in maintenance are described in this
chapter.
WARNING
■
Do not insert or pull out the motor connectors while the power to the robot system
is turned ON. Inserting or pulling out the motor connectors
with the power ON is
extremely hazardous and may result
in serious bodily injury as the Manipulator
may move abn
ormally, and also may result in electric shock and/or malfunction of
the robot system.
■
To shut off power
to the robot system, pull out the power plug from the power
source. Be sure to connect the AC power cable to a power receptacle. DO
NOT connect it directly to a factory power source.
■
Before
performing any replacement procedure, turn OFF the Controller and
related equipment,
and then pull out the power plug from the power source.
Performing any replacement procedure with the power ON is extremely
hazardous and may result in
electric shock and/or malfunction of the robot
system.
■
Be careful not to get any foreign substances in
the Manipulator, connectors, and
pins during maintenance.
Turning ON the power to the robot system when any
foreign substances exist in them is extremely
hazardous and may result in electric
shock
and/or malfunction of the robot system.

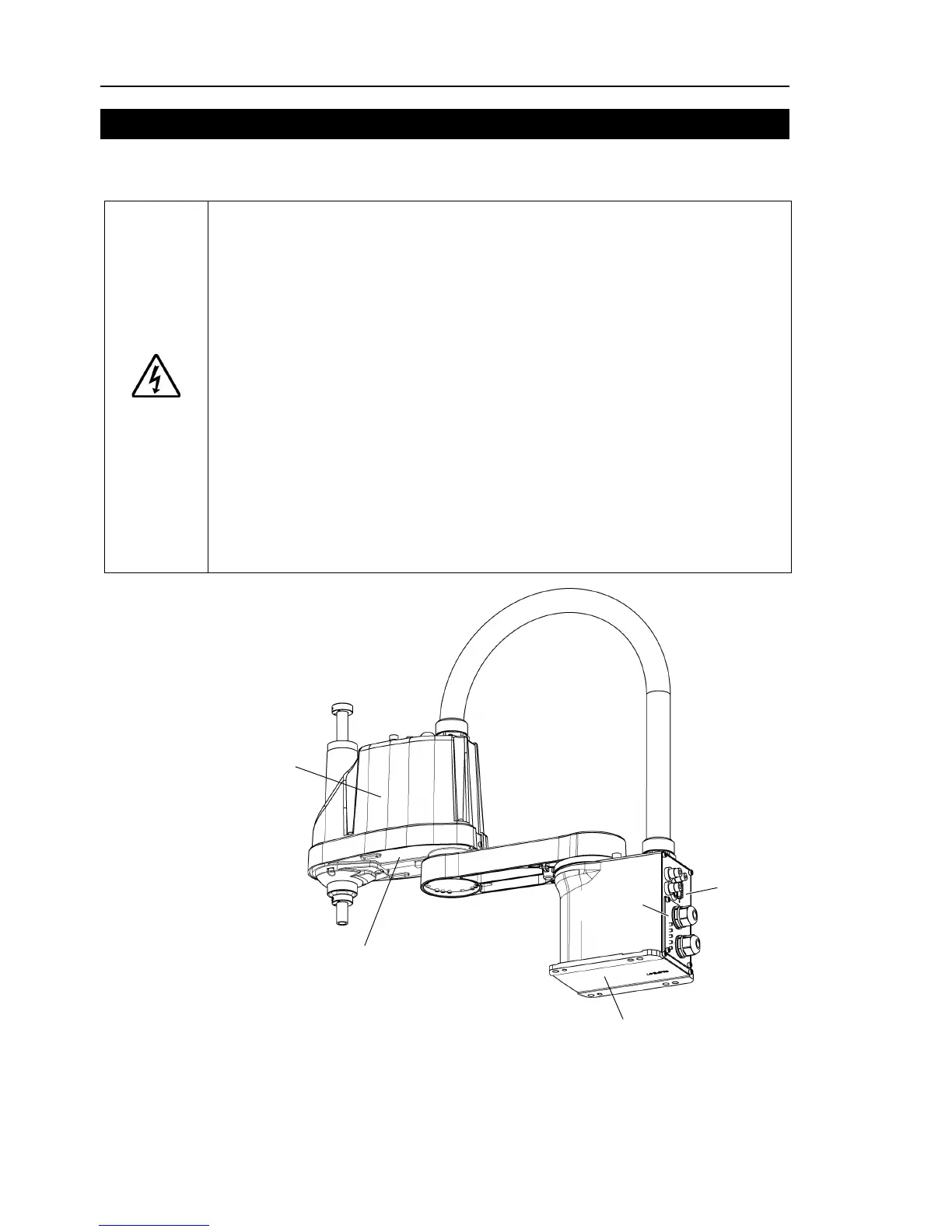

(Figure: LS3-401S)
Arm
Bottom Cover
Connector
Plate
Connector
Sub Plate
Base Bottom Cover
Arm Top Cover
