Maintenance 4. Cable
84 LS Rev.10

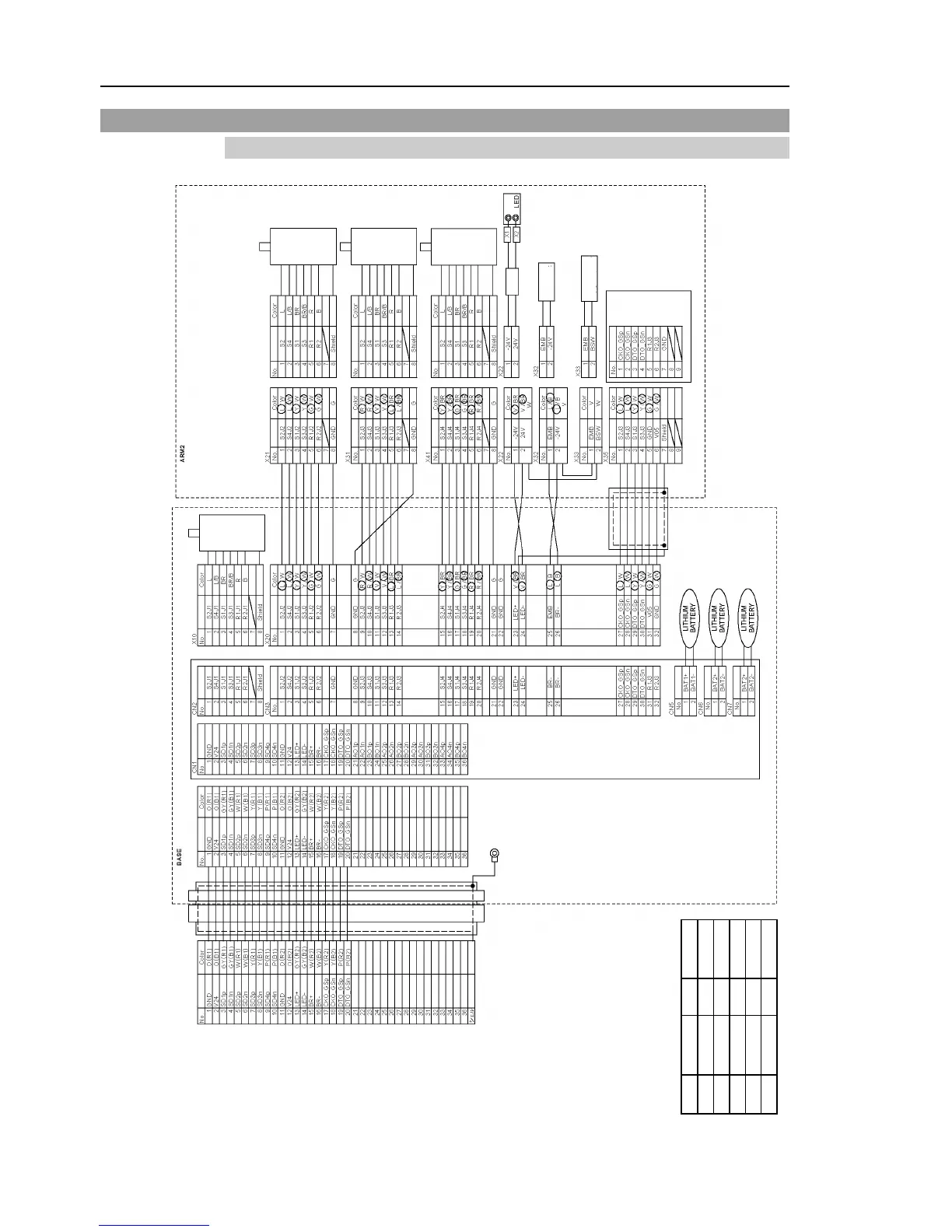

4.2 Wiring Diagrams
4.2.1 Signal Cable
LS3
Cable color
Pink
Red
Violet
White
Yellow
Code
P
R
V
W
Y
Cable color
Black
Brown
Green
Blue
Orange
Code
B
BR
G
L
O
Resolver Board
Control Board
Brake Switch
Brake
