SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 150
Confidential
3.4.5.13 DUCT TUBE ASSY
1. Remove the PRINTER COVER. (p72)
2. Remove the RIGHT HOUSING PLATE. (p74)
3. Remove the RIGHT COVER ASSY. (p88)
4. By holding the Tube Clamp, and remove the DUCT TUBE ASSY from the Waste
Ink Tube.
5. Remove the two screws that secure the DUCT TUBE ASSY.
A) Silver M3x6 Cup S-tite screw: 2 pcs
6. Release the DUCT TUBE ASSY from the two clamps.

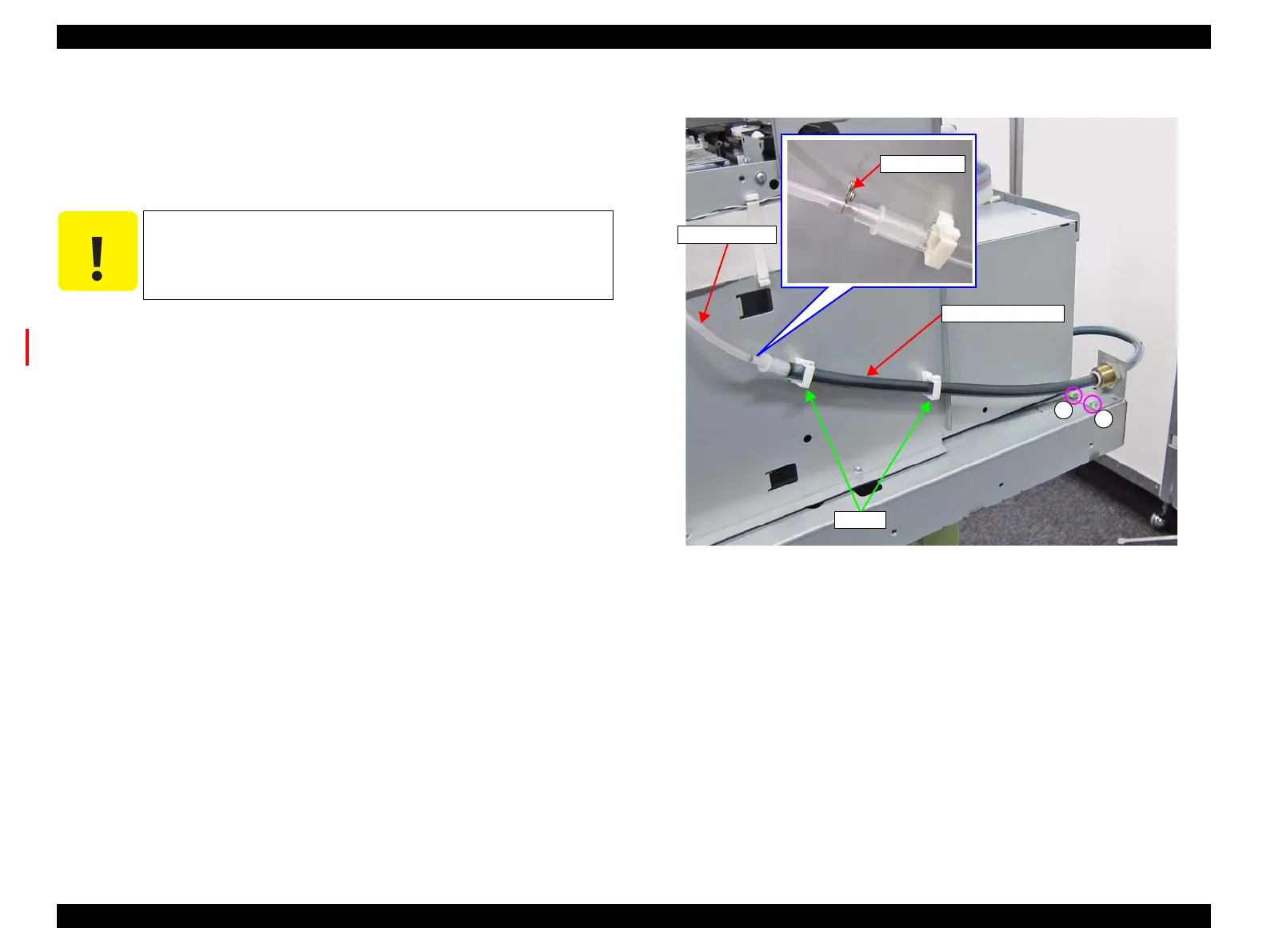

Figure 3-119. Removing the DUCT TUBE ASSY
C A U T I O N
When the Waste Ink Tube is removed at the following step, waste
ink may drip off from the tube. Prepare a waste cloth in advance
and be careful not to contaminate the surroundings.
DUCT TUBE ASSY
Waste Ink Tube
A
A
Clamps
Tube Clamp
