9.1.5 Analogue output connection

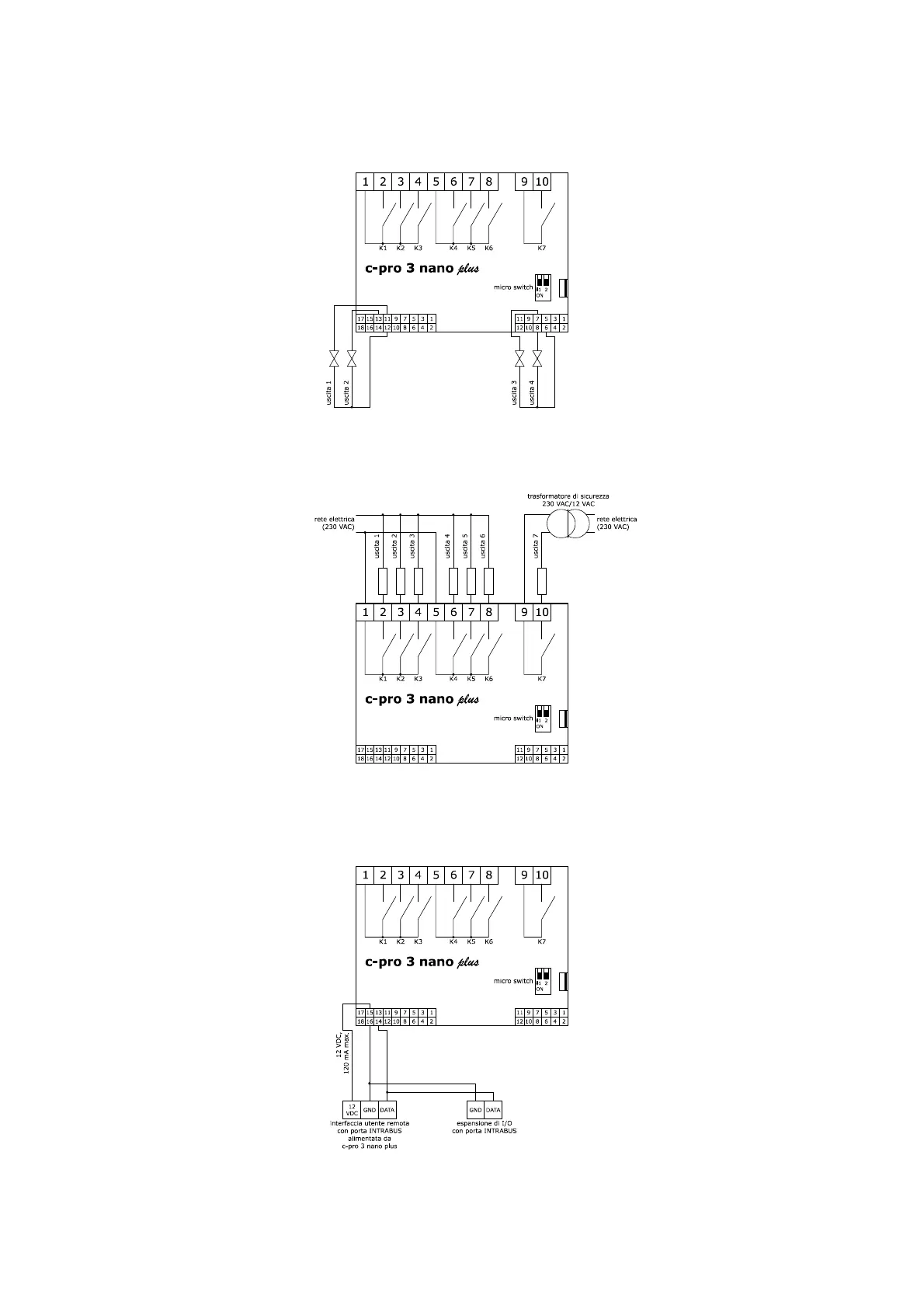

The picture below shows the c-pro 3 nano plus analogue output connection.
9.1.6 Digital output connection
The picture below shows an example of c-pro 3 nano plus digital output connection.
9.1.7 INTRABUS port connection
The picture below shows an example of c-pro 3 nano plus INTRABUS port connection.
The maximum configuration of the INTRABUS network permits 1 programmable controller and 1 remote repeater.
