9.1.8 RS-485 MODBUS port connection

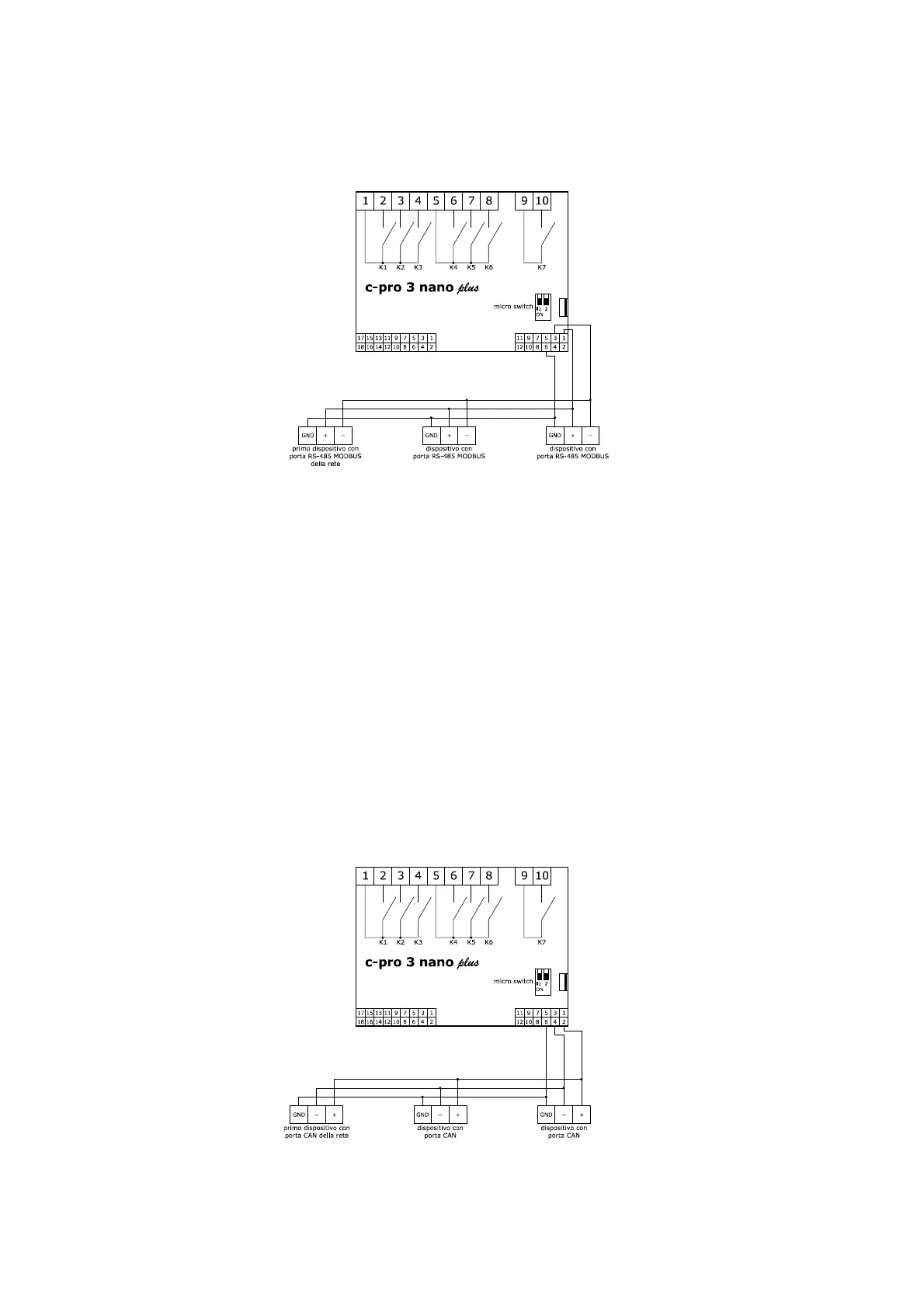

The picture below shows an example of c-pro 3 nano plus RS-485 MODBUS port connection.
In the example, the c-pro 3 nano plus is the last device on the network with an RS-485 MODBUS port.
Note: The connection cables to the main back must be as short as possible.
9.1.9 CAN port connection
The picture below shows an example of c-pro 3 nano plus CAN port connection.
The maximum CAN network configuration includes:
- 1 programmable controller
