OptiView
TM
Series III
Getting Started Guide
20
Stylus
Pull on the
recessed
portion of the
stand to open
RESETRESET
USB
PC Card
Stylus stores at
bottom of stand
USB
aww03f.eps

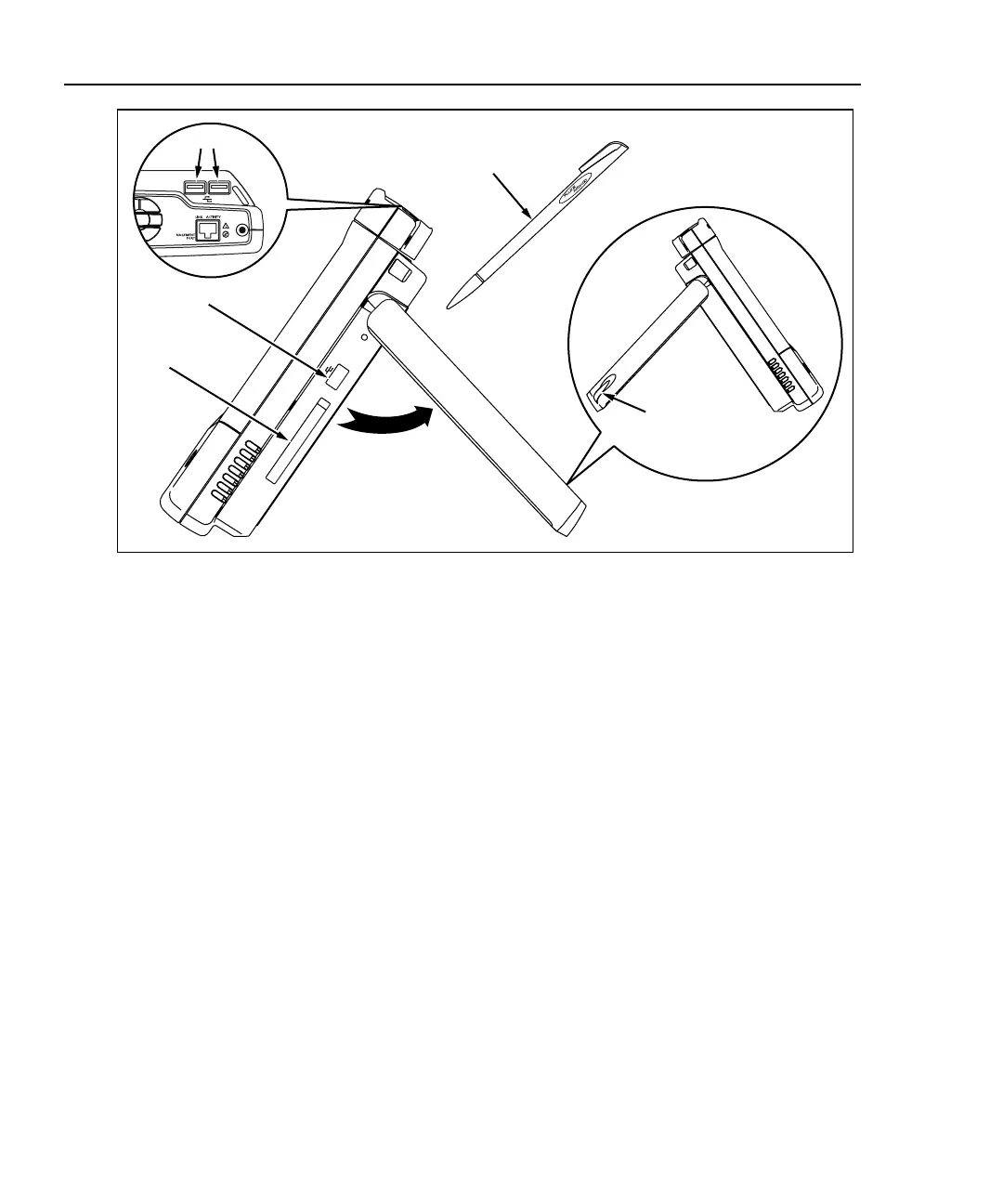

Figure 11. USB Connectors
Extending the Stand, Finding the Stylus
Figure 11 shows the stand extended. To open the stand, pull at the recessed portion
located at the bottom of the stand.
The stylus is stored in the stand leg as shown in Figure 11. Simply slide the stylus
out to use it.
Using the VGA Out Port
The VGA out port allows an external monitor to be connected to the analyzer.
Simply connect a VGA monitor to the analyzer VGA out port and it works! This
can be done before or after the analyzer has been turned on. See Figure 12 for
VGA out port location. See the VGA Help topic for more information about
configuring the VGA out port.
