Changing the SFP Fiber Adapter
To install a SFP Fiber adapter, remove the protect cap and simply slide the adapter
into the fiber port until it clicks.
To remove a SFP Fiber adapter, press and hold the tabs on the sides of the SFP
adapter and pull gently out of the fiber port.
<Warning
SFP fiber adapters are Class 1 laser light-emitting
products. Avoid staring into the SFP module while the
analyzer is on; otherwise injury to the eyes may occur.
15V
Lock/Release Tab
aww14f.eps

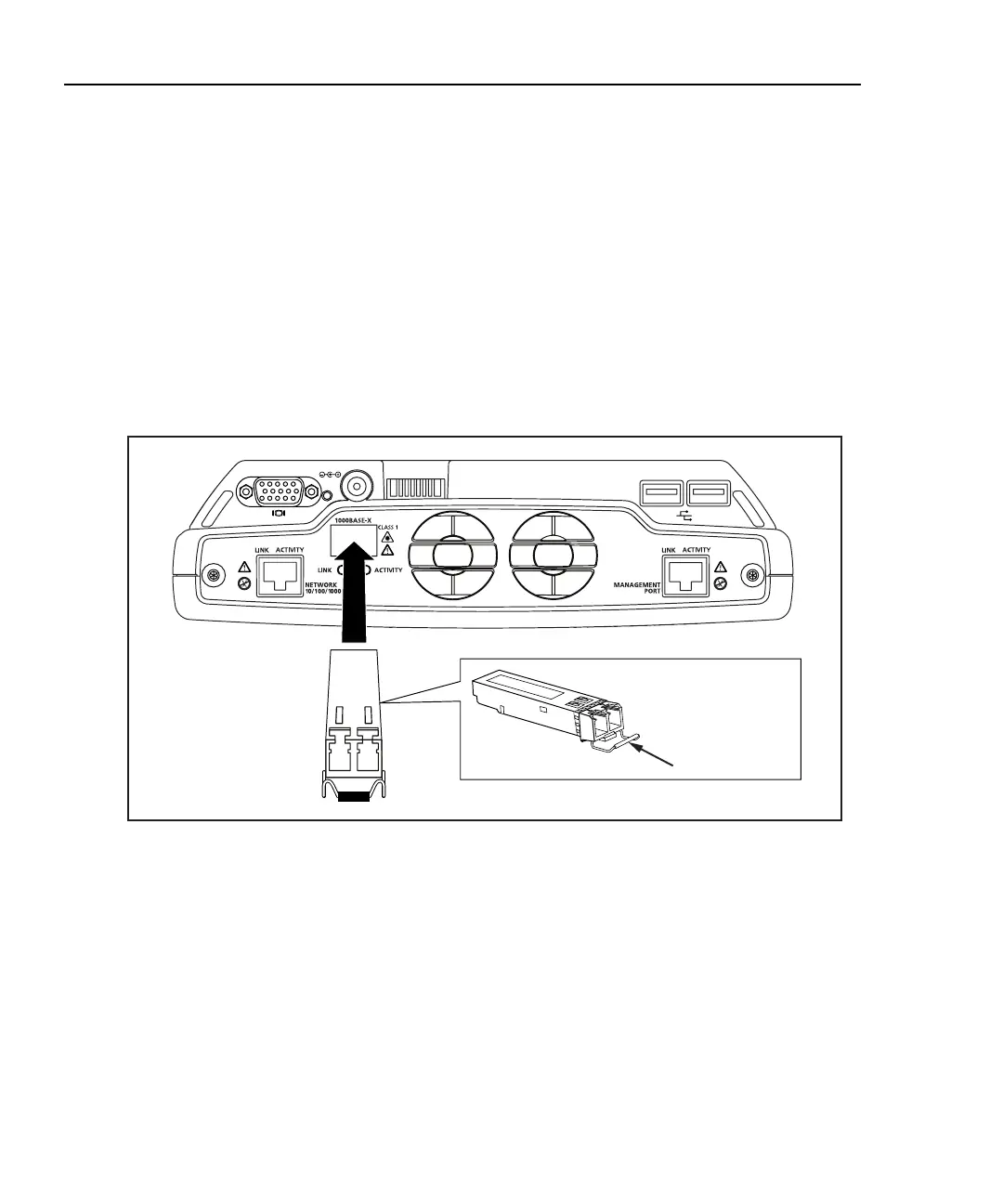

Figure 17. Installing a SFP Fiber Adapter
Note
It is recommended that the analyzer be powered off or placed in
suspend mode prior to changing the SFP fiber adapter. This will
reduce the possibility of damage to the SFP fiber adapter.
Windows Network Configuration
The Windows network configuration is preconfigured for communication with the
OptiView
TM
analyzer data acquisition board. The Ethernet and fiber connectors are
