TGA300 Rev180405
29
Pressure Sensor

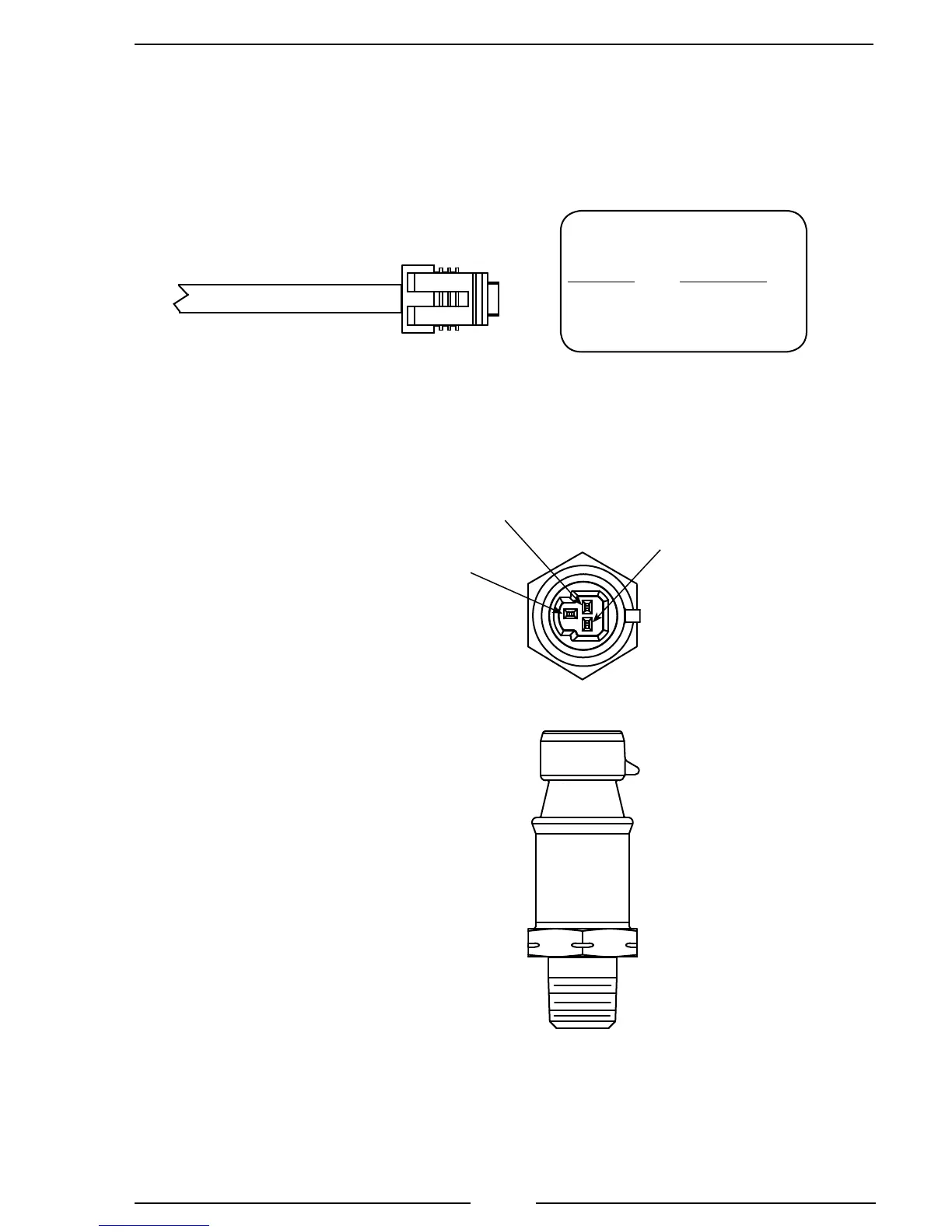

Figure 6. Pressure Sensor Wiring
Pressure Sensor
Side View
Pressure Sensor Cable
3-Pin Connector
Pin/Wire Description
A/Black Ground
B/Red Supply Voltage
C/White Signal
Pressure Sensor
Top View
Pressure Sensor
Cable
Caution: The discharge and intake
pressure sensors are the same size.
Ensure the correct sensor is installed on
the correct manifold. Refer to Table 1.
Signal
Output
Supply
Voltage
Ground
